- NSC Series
Compact Capsule Slip Rings
Capsule slip ring is the general name of a series of slip rings with a round flange on the shell. It looks like a cap with compact design, small size, and easy to be installed.
- Slip Ring OD: 22–38 mm (optional) , <22MM Miniature slip ring customizable
- Slip Ring Length: 19–223 mm (optional)
- Number of Channels: 1–120 (optional)
- Contacts: Precious metal (Gold-to-Gold) contacts
- Rated Speed: MAX 250 (General) MAX1000 ( Defense, Industry)
- Current: Singal 2A (General) , 10-20A (Custom)
- Lifetime: Working Life >5 million
- Housing Material: Engineering plastic | Aluminum alloy (depending on customer’s industry requirements)
- Working Temp: -30℃~80℃
- Operating Humidity: 0~85% RH
- Accept Fully Customizable
- NST Series
Through Bore(Hole) Slip Ring
Through-bore slip ring is a general name of slip ring with hole in the center, it is mainly used to transmit precious signals, weak current, big current and high voltage
- Hollow shaft design, mainly used for hydraulic or pneumatic tube and rotary joint.Use advanced multi-point contact with precious mental to ensure the reliable contact with low friction.
- Bore size is from 12.7mm to 300mm.
- Gold plated rings, Gold alloy fiber brushes.
- Support hybrid transmission of power and signals.
- Standard product with stock.
- Circuits,current and voltage can be customized based on the standard model.

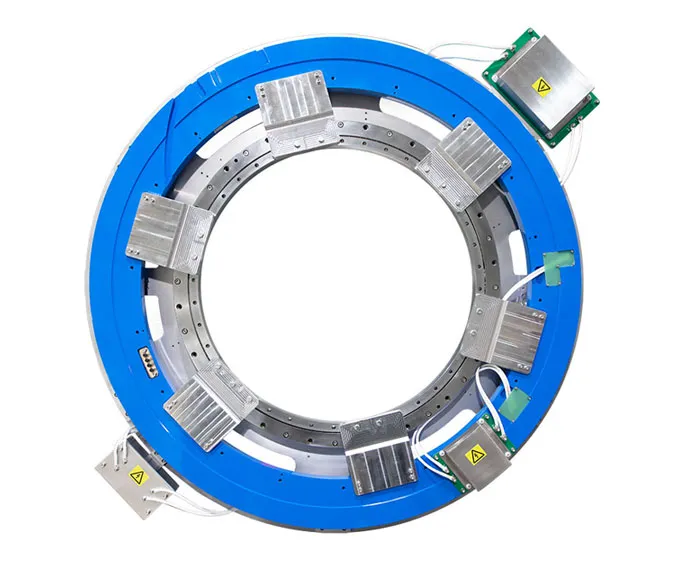

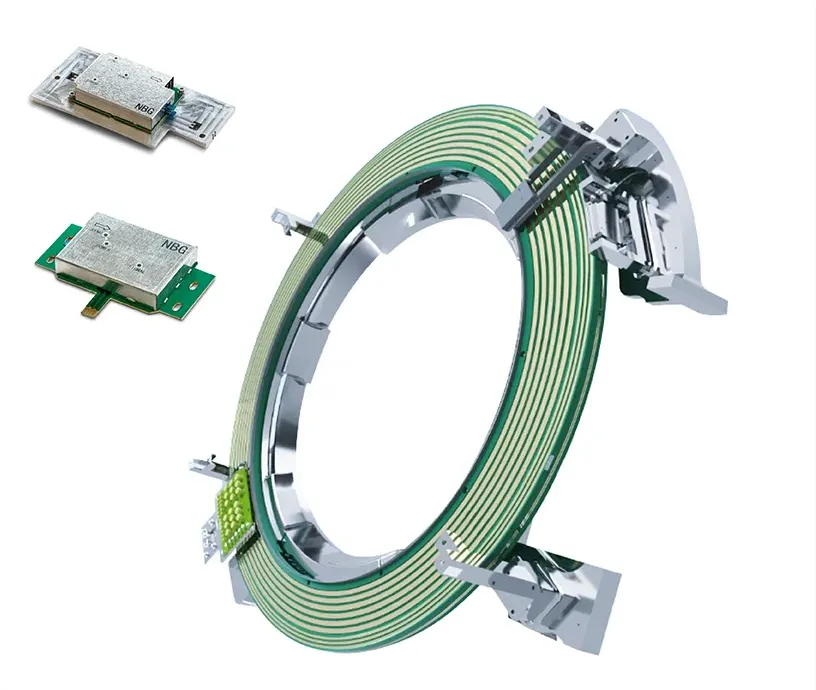

NBG Customized CT Slip Rings for Medical and Security Applications
Clients we have worked with: GE, Philips, “Siem”, Neusoft, United Imaging,Mediso,etc.
- Contacting signal transmission (CAN, RS422, RS232 or others)
- Rotation Speeds up to 300 rpm
- Contactless data transmission systems from 800 Mbit/s up to 251G
- Integrated encoder systems optional
- Extended brush life time
- Design Life time of 10 years
- Dimensions: diameter up to 1800 mm, bigger size customizable
- Contacting Multiplexing optional (Multi signal transmission with one ring)
- Bidirectional contactless data transmission optional
- Full contactless slip ring optional
- Latency: < 1 µs
- System coding: compatible with two types (8B/10B and 64B/66B)
Main Applications of Our slip Rings
NBG
Leading Manufacturer In Slip Rings & Rotary Transmission Systems.
Proven by Time.
NBG
Leading Manufacturer In Slip Rings & Rotary Transmission Systems.
Proven by Time.
NBG Slip Ring Manufacturing Center
NBG have efficient production team, sufficient and powerful production capacity, strict quality supervision system,
high-precision testing equipment, as well as more than ten years of experience in the production of slip ring make us a leader in the field of slip ring manufacturing.
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
Our Certificate
-Connecting The World
NBG Shines Worldwide Exbition！
From RSNA and ECR to CMEF, PTE, AUTOMATE, and HANNOVER MESSE. we’ve showcased our slip ring technology worldwide and earned trust from OEMs, engineers, and integrators across industries
Today, leaders in medical imaging, automation, and aerospace turn first encounters into lasting partnerships with NBG.
Our Strict Product Quality Testing Syestem
01 Fully Implement APQP
Compliant with ISO13485 & ISO9001.
02 Incoming Quality Control (IQC)
All raw materials and components are inspected upon arrival.
03 In-Process Quality Control (IPQC)
Critical control points during assembly and manufacturing are inspected.
04 Outgoing Quality Control (OQC)
Conduct systematic quality inspection and control on products before they leave the factory
05 Comprehensively implement the MES system to achieve traceable product management
06 All processes are validated to ensure quality consistency
07 All products are tested for reliability
08 Continuously promoting
zero defect management
Establish Long-Term Cooperation With Professional Slip Ring Manufacturers.
