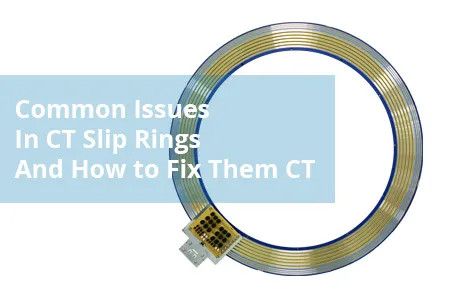

Common Issues In CT Slip Rings And How to Fix Them CT

CT slip rings help to ensure continuous power and data transfer during gantry rotation in CT scanners. However, over time, some issues, like mechanical wear and contamination can cause the system to fail. This article explores these issues and diagnostic methods to ensure long-term operation.

Typical Failure Modes

Some of these failures can happen slowly, while others can cause the scanner to stop immediately.

Wear & Tear

Wear is the most common issue in CT slip rings. The friction between the brushes and the ring causes the metal to wear down over time. After a while, the contact becomes significantly weak, causing signals to drop or stop. This can also cause the scanner to pause or show errors.

Overheating

Too much heat can also cause the scanner to fail. Heat builds up when there is more current than the ring can handle, the cooling fans aren’t working properly, or ventilation issues when the airflow inside the gantry is blocked.

Even a small increase in temperature can cut the life span of slip ring parts by half. Thermal expansion can also loosen internal parts, which may lead to vibrations or unstable contact points during scans.

Signal Noise & Electrical Issues

Electrical noise or intermittent signals usually happen when there is an increase in contact resistance. These issues can seriously degrade the signal quality or even cause the software to misread the diagnosis.

Contamination & Corrosion

Dirt and moisture can also damage the slip rings. Tiny dust particles can build up over time, and moisture could seep into the unit through small cracks. These factors can lead to rusting of the slip ring slide, affecting the contact effect between the slide and the brush.

Diagnosis Checklist

Finding these problems early is necessary to minimize the scanner downtime, and it also saves time and money. The table below shows how to detect these issues before the ring fails.

Preventive Tips

Regular Maintenance Schedule

CT slip rings should be cleaned regularly and inspected to ensure continuous operation. A regular schedule helps to spot signs early and prevent the system from unexpectedly shutting down. Systems that scan all day need more frequent checks than the ones that are used a few times a week.

Cleaning & Lubrication

Use compressed air to clear out loose debris and dust that builds up inside the slip ring housing. A soft cloth with mild solvent can be used for mild surface cleaning.

Also, if there are signs of pitting, use non-metallic abrasive pads for light sanding.

Runout control

A dial indicator should be used to check the slip ring runout during the assembly of CT scanning equipment.

Environmental Controls

The environment of the scanner also matters a lot. Air filters in the room and in the system should always be cleaned to keep dust and moisture out. The gantry closings should have the right IP ratings as well.

Repair VS Replacement

When to Repair

If brushes are worn out, but the ring surface is still clean, it is best to simply change the brushes. Rings with shallow surface marks can be resurfaced with a bit of light sanding. Small signal issues usually come from dust buildup or surface oxidation, and both can be fixed with simple cleaning or re-seating.

When to Replace

If the ring shows deep pitting, burn marks, or cracked insulation, then replacement is the best option. Parts that overheat or have melted plastic could pose a fire risk. If signal errors continue even after cleaning and adjusting, it could be because of internal damage, which means the rings need to be replaced.

Cost, Availability & System Criticality

Facilities should also consider how many scans are delayed each hour that the machine is down. A hospital or clinic will lose more from downtime than from replacing a part early. If replacements are to be done, check if the parts can be found locally or how long it will take to ship.

Service Cycle Guidance

Recommended Maintenance Intervals

The maintenance of a CT slip ring depends on how much the system is used. For high-use systems like CT scanners, they wear down faster because they are used on a daily basis. Therefore, it’s best to inspect them more frequently, like every 3 months.

On the other hand, systems that are used intermittently can go longer between checks. They can be inspected every 6 to 12 months, depending on how much they are being used. Some systems also come with built-in counters for scan cycles, and those numbers can be used to plan the service properly.

Documentation & Trend Analysis

Always write down detailed logs during each inspection. Keep track of brush length, temperature readings, and signs of wear. Over time, these logs help to detect any anomalies early on, which can be fixed, and they prevent emergency downtimes.

Advanced Diagnostics

Invest in automated slip-ring testers and use them when possible. They can be used to test resistance, signal clarity, and noise. They give reliable data and reduce human error during testing, ensuring a standardized maintenance routine. Some of them can also be connected to laptops to store past readings, making it easy to compare over time.

Conclusion

CT slip rings wear down with time, heat, and use. Regular checks, cleaning, and smart part replacement keep scanners running safely. These small steps help to prevent major breakdowns in the long run.
