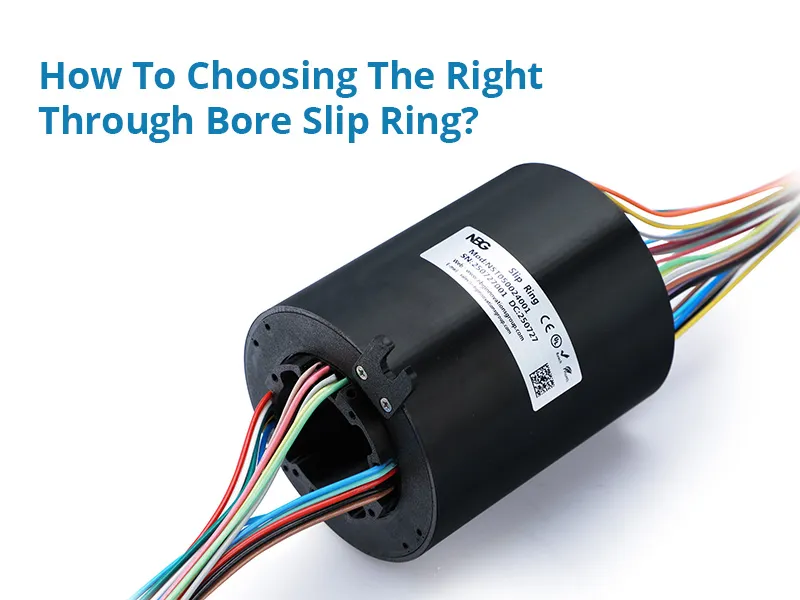

How To Choose The Right Through Bore Slip Ring

In advanced industrial systems, precision doesn’t stop at actuators or sensors; it begins with how your system connects while in motion. The through bore slip ring sits quietly at the intersection of motion and electrical continuity, enabling uninterrupted signal and power transmission through a rotating joint.

This isn’t just a commodity component. Whether installed in a robotic joint, a rotating gantry of a medical device, a control turret, or another type of application, the selection of a slip ring will make the difference between your system reliably performing or failing at a costly rate.

However, the procedure of selecting a slip ring is seldom presented technically as it should be. This guide extends beyond the use of catalog numbers, empowering engineers and procurement professionals to specify a slip ring that meets system requirements and the operational environment.

Define Your Application Requirements

All slip rings have the same basic purpose, but not in the same environment.

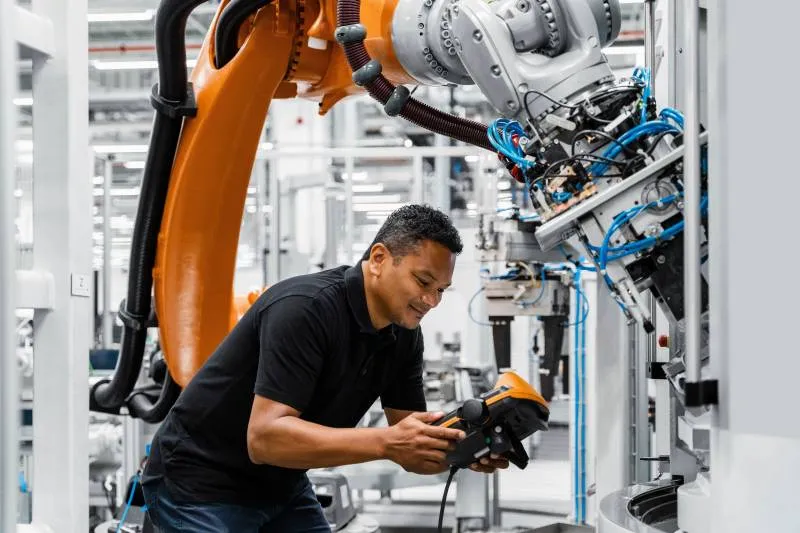

To define the suitable slip ring for automation of your system or any other industrial system, the initial point of reference should be based on the working environment of your application. In robotic applications, it is common to install a specialized end-effector tool on the robot arm to achieve a specific programmable function in a manufacturing process. In such cases, an electrical slip ring or an electro-pneumatic hybrid slip ring is typically required. The slip ring must possess a certain level of vibration resistance, and the electrical transmission part should have overload protection capabilities. Additionally, such applications often require the slip ring to be equipped with an encoder.

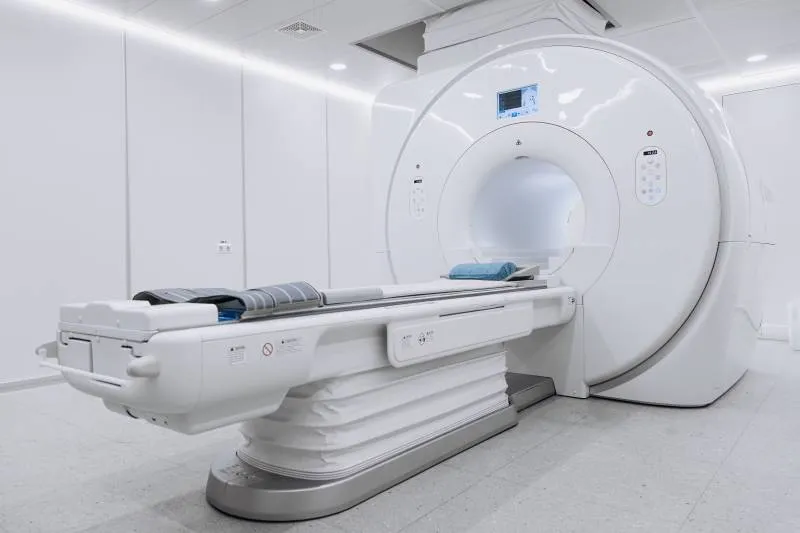

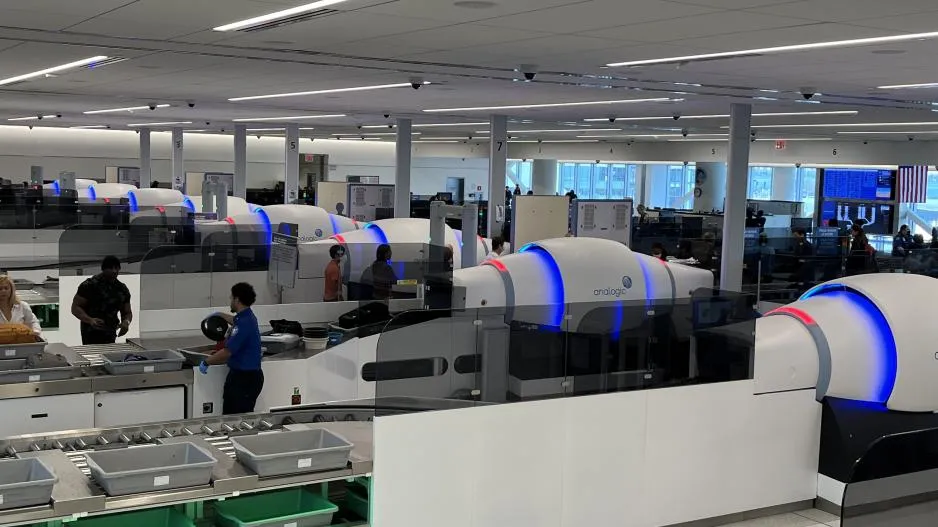

Conversely, a medical CT slip ring system must handle high-voltage power and lossless digital imaging signals

At the same time, we may need to attach an encoder, and both the slip ring and its accessories must offer extremely high reliability.

Common application profiles include:

● Robotics: Compact form factor, low noise contacts, high signal fidelity

● Medical Imaging: High-speed data transmission, zero interference, high reliability

● Industrial Packaging: Mixed power and control signals, washdown resistance, long duty cycles

● Inspection/Surveillance Systems: A constant 360-degree rotation, camera/video input, and outdoor protection

Every application requires a slip ring that is customised to meet the mechanical, electrical, and environmental limitations of the application.

Determine Electrical Parameters: Power vs Signal

The voltage range that a slip ring can transmit varies from millivolts to tens of kilovolts, and the current can range from milliamps to thousands of amps.

For power transmission, it is essential to specify the voltage class, peak current, and thermal loading. In motorized systems, special attention must be paid to inrush current during startup cycles, as it can significantly influence conductor cross-section, insulation level, and overall thermal design.

In terms of signal transmission, system designers must consider bandwidth, sensitivity, and shielding requirements. Encoder signals, fieldbus protocols (such as CAN bus and EtherCAT), USB, or Ethernet signals all require transmission components with low contact resistance or ultra-low noise. In high-speed communication, rotary joints of coaxial or fiber-optic construction may be required, typically as part of a hybrid assembly.

If you're developing a mixed-use system that requires both, a custom through bore slip ring is typically recommended. It ensures electrical isolation between power and data paths and can be engineered to include redundant circuits or EMI shielding if needed.

Bore Size & Mechanical Considerations

The defining mechanical feature of a through bore slip ring is its hollow shaft. This central bore allows mechanical or fluid elements to pass through, or allows direct mounting to drive shafts or support rods.

Even smaller bores, in the range of 12-30 mm, are standard in robotics, supporting compact servo assemblies or end-of-arm tools. In heavy-duty machinery or vehicle-mounted systems, the through-bore diameter may need to reach 180 mm or even larger in order to accommodate hydraulic lines or high-capacity cable bundles.

In addition to clearance, mechanical factors are:

● Mounting style (flange, end-of-shaft, pedestal)

● Axial and radial space availability

● Torque resistance during operation

Hollow shaft slip ring selection is often dictated as much by mechanical space as it is by circuit count. An oversized bore can weaken the structure or increase torque. An undersized bore may require complex redesigns of adjoining subsystems.

Environmental Conditions & IP Rating

Industrial slip rings rarely live in pristine conditions. Whether in dusty packaging facilities, outdoor surveillance units, or medical cleanrooms, protection from environmental contaminants is essential.

The IP (Ingress Protection) rating defines how well the unit resists solids and liquids. For context:

Slip rings with high IP ratings utilize sealed housings, corrosion-resistant materials (such as stainless steel), and anti-vibration bushings. These are not features to be considered in harsh environments; instead, they are what guarantee a long service life.

Temperature extremes, shock and vibration ratings, and electromagnetic compatibility (EMC), particularly when the design is intended for use in a defense or medical environment, should also be considered.

Circuit Configuration & Wiring

Slip rings are fundamentally electrical interfaces. Beyond the number of circuits, engineers must specify what each line does.

Is it for 24V DC power, encoder feedback, CANbus, or Gigabit Ethernet? Are signal lines twisted pair, coaxial, or shielded multi-core? What connector types will be used for mating? Will wiring terminate internally or via plug-in interface?

A well-documented industrial slip ring specification defines not just circuit count but:

● Voltage and current per circuit

● Wiring color and type

● Cable length, shielding, and bundling

● Pinout diagram and connector type

Without these details, integration becomes a guessing game, and post-installation troubleshooting can turn into costly downtime.

Off-the-Shelf VS Custom Solutions

Choosing between an off-the-shelf product and a customized unit is often a matter of risk. If your system utilizes standard power and signal profiles, pre-built slip rings are a fast and cost-effective solution. They fit well in simple camera mounts or display turntables.

However, the moment your design includes:

● Multi-channel hybrid requirements (e.g., 24V + USB + encoder)

● IP67 operation or shock resistance

● Mounting space constraints

● For lifecycle requirements exceeding 50 million revolutions, it’s time to move toward a custom through bore slip ring.

Engineered units are built to your system’s needs and reduce integration surprises. You get accurate drawings, precise cable assemblies, and confirmed environmental and lifecycle ratings.

Evaluate Manufacturer Capabilities

Once requirements are precise, the final question is: Who can build what you need?

Don’t select vendors based solely on catalog availability. A capable manufacturer should offer:

● Technical consultation during design

          ● Real-world lifecycle data and test results

● Certification to ISO, RoHS, CE, or defense-grade standards

● Documentation packages for traceability and installation

When you compare slip ring manufacturers, look for engineering depth, not just product count. Companies that provide simulation support, integration drawings, or performance modeling are better equipped to support OEM programs and long-term production needs.

Final Tips For Choosing A Slip Ring

Once you've nailed down your specs, bore size, voltage, and circuit count, it’s tempting to check the box and move on. However, the most reliable projects are those where a few key questions are asked before the purchase order is issued.

Is there room for system growth?

You might only need eight channels today, but what about six months from now? Consider upgrading the sensor or adding a second axis of control. It’s worth considering whether your slip ring can accommodate future expansion. Overspecifying slightly now often avoids costly redesigns later.

How well is your signal protected?

We’ve seen great systems struggle due to a poorly shielded encoder line adjacent to a power channel. Noise issues are real and can be challenging to debug after installation. If your slip ring needs to carry mixed signals, power, Ethernet, and CANbus, ensure there is proper isolation and shielding built in. A little upfront care here saves a lot of headaches.

Service or sealed-for-life, what’s better for you?

Some slip rings are designed to withstand millions of cycles without requiring contact. Others are designed for quick maintenance or replacement of brushes. There is no one correct answer; it depends on how accessible the unit is and what your service philosophy entails. Just make sure you're not surprised when the maintenance schedule arrives.

And finally, can your supplier scale with you?

A working prototype is great. But can your vendor meet timelines when you scale to 100 or 1,000 units? Do they offer batch testing, traceability, and reliable lead times? A supplier who supports you with engineering today and production consistency tomorrow, that’s the one you want.

These aren’t bonus questions; they’re the ones that separate a good fit from the right one. Because a slip ring isn’t just another part on the BOM, it’s the rotating lifeline of your system. And when it fails, everything stops.

Conclusion

Choosing a slip ring isn't about finding the one with the most features; it’s about matching capabilities to application realities. The through bore slip ring you choose must meet performance targets not just on day one, but across years of full-cycle operation.

The right slip ring is the one your system forgets is even there, because it works reliably, silently, and without interruption.
