Requirements For Wind Turbine Pitch Slip Ring in Different Application Environments: Onshore VS Offshore
BY NBG
2024-07-20
VIEWS: 878
Requirements for Wind Turbine Pitch Slip Ring in Different Application Environments: Onshore VS Offshore
At the heart of every modern wind turbine lies a critical and often unsung component: the pitch slip ring. This electromechanical piece is the critical interface between the power, control signals, and sensor information between the fixed nacelle and the continuously spinning blades in the pitch system. Its perfect functionality is top priority in terms of accurate setting of blade angles so that energy harvest can be maximized, structural stability guaranteed, as well as safe shutdowns in extreme weather conditions.

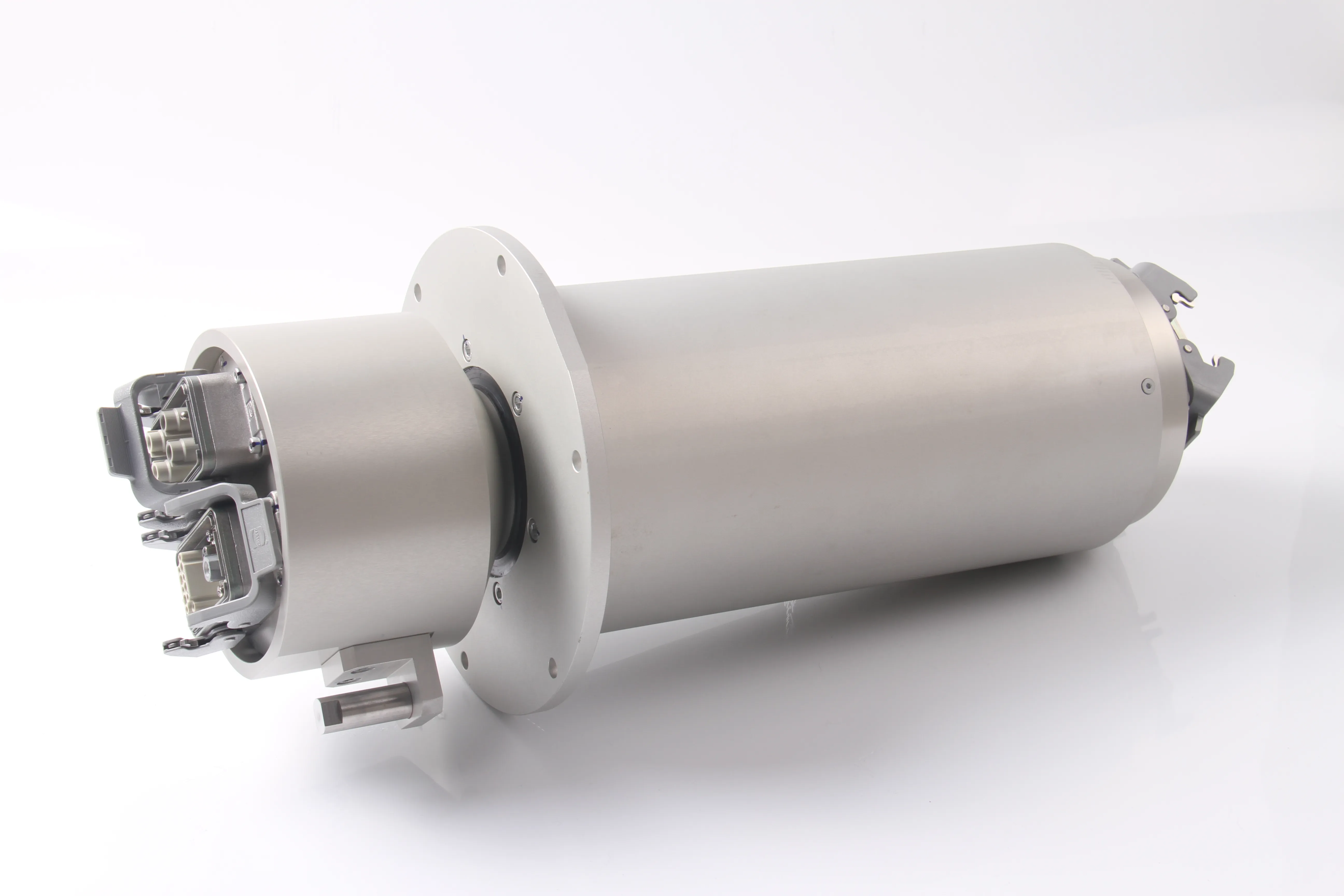

The Pitch Slip Ring (PSR) is the electrical and signal lifeline cutting through the rotating hub (and so the blades) to the control systems in the stationary nacelle. Certain in-depth problems are similar; however, due to the extremely disparate environment, there is immense divergence in design, material, performance, and devious readjustment of the PSRs required onshore and offshore installations.
Understanding the Pitch Slip Ring's Role
Before discussing environment specifics, it is important to understand the critical role of the PSR:

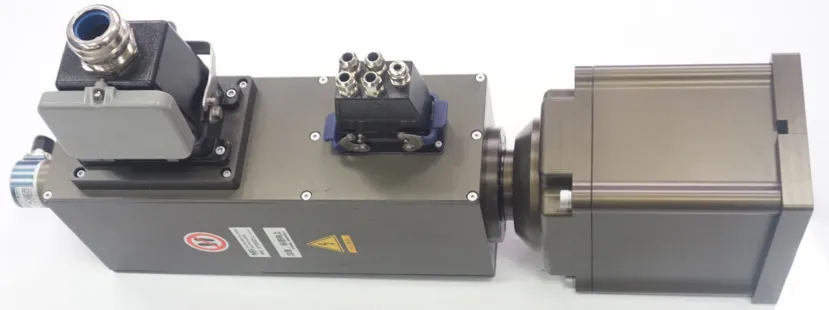

1.Power Transmission: The PSR supplies great currents commonly 400 volts AC or 690 volts AC, and even more, to the pitch motors, which are located at each root of the blades, and at this achieved stage the motors physically turn the blades.
2.Signal Transmission: Transfer of the control commands (CAN bus, Ethernet, analog/digital I/O) between the blade pitch controllers/sensors and the main controller at the nacelle and blade position feedback and fault messages.
3. Data Transmission: Handling data streaming from several sensors embedded in the blades (strain gauges, temperature sensors, lightning detection).
Environmental Onslaught: Onshore vs. Offshore

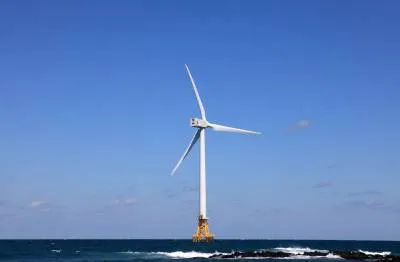

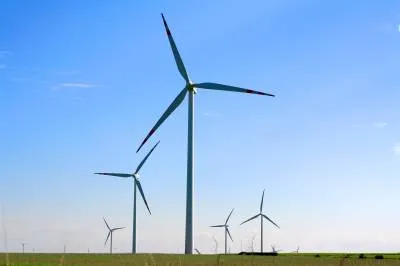

The primary differentiator driving PSR requirements is the vastly harsher environment encountered offshore.
Sr No | Environmental Factor | Onshore Wind Farms | Offshore Wind Farms | Impact on PSR Design |
1 | Corrosion & Contaminants | Dust, sand, pollen, industrial pollution, moderate humidity, occasional salt (coastal). | Constant salt spray, high humidity (>80% common), salt-laden fog, and marine aerosols. | Offshore: Demands vastly superior corrosion resistance (marine-grade stainless steel like 316L/254 SMO, specialized platings like gold over nickel), hermetic sealing to prevent salt ingress. Onshore: Standard corrosion protection is often sufficient (e.g., passivated steel, nickel plating); however, sealing remains critical against dust. |
2 | Humidity & Condensation
| A wide variation can occur seasonally or locally. Diurnal temperature swings cause condensation.
| Persistently high humidity (>80% RH common), constant salt saturation in air. Minimal diurnal temperature swing over water reduces condensation cycles inside the nacelle (often climate-controlled), but external exposure is extreme.
| Both require sealing against moisture ingress. Offshore: Seals must withstand constant salt saturation. Internal humidity control in the hub is critical. Materials must resist salt-induced degradation even if micro-ingress occurs. Onshore: Focus on preventing condensation buildup and dust/moisture mixture.
|
3 | Temperature Extremes
| Wide range: -40°C to +80°C possible, depending on location. Significant daily/seasonal swings. | Wide range: -40°C to +80°C , but high humidity makes even moderate cold feel harsher. Less drastic daily swings over water. | Both: Require components rated for operational temperature range. Onshore: Larger thermal cycling stresses materials and connections. Offshore: Focus on performance stability within a damp, salty environment across the range. |
4 | Vibration & Shock | Significant mechanical vibration from the gearbox (if present), generator, wind gusts, and blade rotation. Ground-borne vibration is possible.
| Similar sources PLUS wave-induced motion transferred through the tower. This adds low-frequency, high-amplitude swaying/vibrations.
| Offshore: Paramount Requirement: Extreme Reliability (MTBF > 5-10 years), Minimal Maintenance Needs (ideally "fit-and-forget"), Diagnostic Capabilities (predictive maintenance). Onshore: High reliability is still vital, but some planned maintenance (e.g., cleaning, inspection every 1-2 years) is feasible. |
5 | Maintenance Access | Relatively accessible via service roads. Cranes are readily available. Downtime is costly but manageable. | Extremely difficult, weather-dependent, requires specialized vessels , high safety risks. Planned maintenance windows are critical; unplanned failures are massively expensive. | Offshore: Key Demands: Investigation: Diagnostic Offshore: paramount need: Extreme Reliability (MTBF 5-10 years ) Minimal Maintenance Needs (ideally fit-and-forget) On land: Good reliability remains essential, but limited amounts of systematic maintenance (e.g., cleaning, inspection after 1-2 years) are possible.
|
6 | Lightning Exposure | Significant risk, especially in certain regions. Requires robust protection. | Equally significant, if not higher, risk due to exposure over open water. Salt deposits can alter strike paths/effects.。 | Both: Require integrated lightning protection within the PSR assembly and grounding strategy. Offshore: Pathways must remain effective despite corrosion.
|
Key Requirements: A Side-by-Side Technical Comparison
These divergent environments translate directly into specific technical requirements for the PSR:
Sr No | Requirement | Onshore Pitch Slip Ring | Offshore Pitch Slip Ring |
1 | Ingress Protection (IP) | IP65 Minimum (Euros 65) and (Dust-tight, protected against low-pressure jets of water). Harsh sites are commonly specified as IP66/IP67.
| IP68 / IP69K Standard (dust-tight, protects against continuous immersion under pressure, high-pressure/steam cleaning). Hermetic sealing is common. |
2 | Corrosion Resistance
| Standard protection: Zinc plating, Nickel plating, passivation.
| HAVE TO BE MARINE-GRADE: Stainless steel or special alloys with high nickel concentrations. |
3 | Operating Temperature
| Typically -40°C to +80°C
| Typically -40°C to +80°C
|
4 | Humidity Resistance
| Must withstand high humidity and condensation.
| Must withstand constant high humidity (up to 100% RH) and salt saturation. Seals must prevent capillary action. |
5 | Vibration/Shock
| Robust design for typical turbine vibrations (e.g., IEC 61400-1).
| Enhanced robustness for combined turbine + wave motion vibrations. Higher frequency and amplitude tolerance. Often tested beyond standard turbine profiles. |
6 | Electrical Performance
| - Current: 10-50A per circuit common. - Voltage: 400/690VAC, 24/48VDC. - Signals: CAN, Ethernet, Analog/Digital I/O.
| - Similar current/voltage demands.
- Critical: Stable contact resistance (< 5-10 mΩ) despite corrosion. - EMI/RFI Shielding: Often stricter requirements due to the complex marine environment.EMI/RFI |
7 | Reliability & MTBF
| High: > 5-10 years expected.
| High: > 5-10 years expected.
|
Conclusion
The wind turbine pitch slip ring is a critical component to the operation of the turbines, facilitating the essential power and signal transmission of the turbines relating to the control of the blades of the turbines through pitching. Although the basic purpose of doing so, i.e., making it possible to rotate something but staying connected, stays the same, the environment in which such an operation has to be performed has dramatically different solutions to how it might be engineered.
Onshore workplaces require dynamic security against dust, humidity, temperature fluctuations, and pollution. The environment offshore raises the game to life-long assault by inexorable salt-water corrosion, severe humidity, vibration, and the requirement to achieve more or less perfect reliability because of the unacceptable costs of maintenance.
