What Is A Through Bore Slip Ring? A Comprehensive Guide

Machines that rotate require reliable power and signal flow without downtime. Through-bore slip rings solve this challenge in compact and efficient ways. This guide walks through their design, typical use cases, and operation.

What Is a Through Bore Slip Ring?

A through bore slip ring allows power to be transferred between rotating and stationary parts. Its open centre allows other components to pass through. It is also known as a hollow shaft slip ring or through-hole slip ring.

Its main job is to carry power or signals, but its shape also fits into moving parts. That mix makes it useful in systems that need both electricity and room for other hardware.

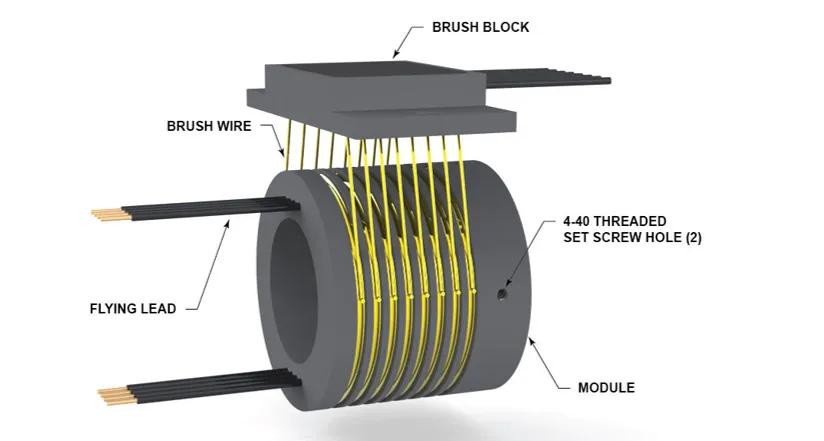

Key Components

Rotating Assembly

This is also known as the rotor and is the part of the slip ring that spins. This contains the conductive rings, which are arranged in layers around the bore, and rotate with the shaft it is mounted on.

Brushes

These are the fixed parts that press against the rings. The material they are made from depends on the type of signal needed. Their function is to carry power or signal across the gap as the ring spins.

Bearings

These are placed between the rotating and fixed parts to ensure a smooth and controlled rotation. Most through-bore slip rings use sealed ball bearings, which are chosen for their low friction and long service life.

Bore

This is the open hole at the center of the slip ring, which allows other parts to pass through without affecting the signal flow. Its size and shape are very important because they determine how the slip ring fits onto a shaft.

Housing

This protects the inner part of the slip ring, keeping out dust, water, or oil. Some are also made to be resistant to corrosion.

Common Bore Sizes

Choosing the correct bore size is key because if the bore is too small, the shaft won’t fit or may scrape the sides, leading to wear. If it’s too large, the shaft might wobble or misalign, which can stress the bearings or damage cables.

Most manufacturers offer bore sizes in set ranges to match common industrial shaft diameters. The best size depends on your system’s layout, shaft size, and power or signal needs.

Applications of Through Bore Slip Rings

Through-Bore Slip Rings can be used in a wide variety of fields such as:

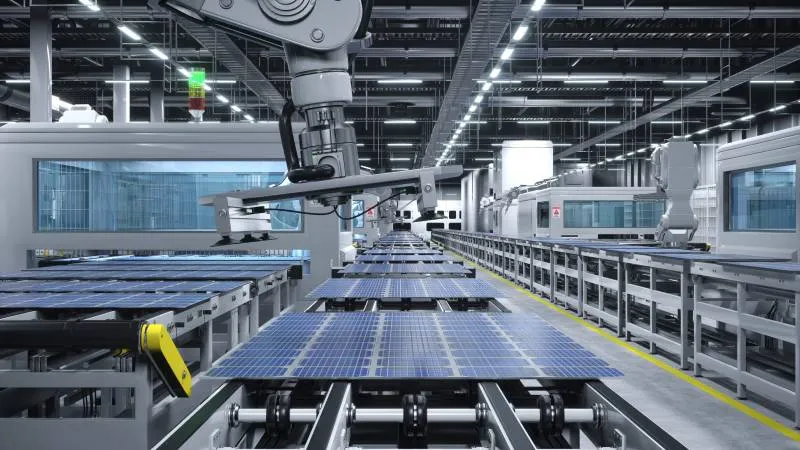

Robotics And Factory Automation

Through-bore slip rings for automation are used in robots and welding arms. These arms need power, data, and sensors, so the ring helps keep the control signals clean.

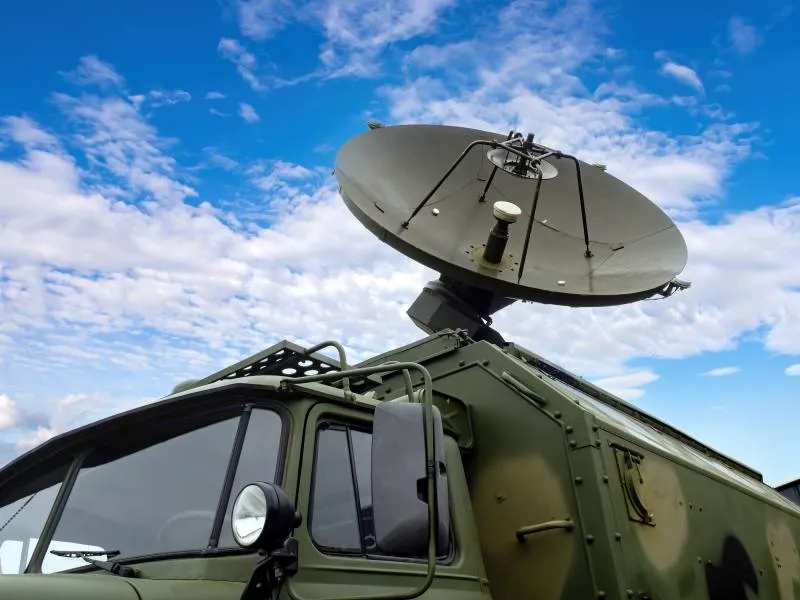

Radar And Military Systems

Radar dishes are always spinning nonstop. This is why through bore slip rings are used to carry signals even in harsh weather conditions.

Advantages of Through Bore Slip Rings

Below are key advantages that make through-bore slip rings a preferred choice in many industrial systems:

● Mixed-Use Support: This means one ring can carry power, control, or data to fit many system needs.

● Long Lifespan: High-grade parts can help systems run continuously for years.

● Wire Protection: They also prevent wires from twisting, which could lead them to wear out faster.

● Compact Build: Its small size cuts down on extra parts and makes the system layout simpler.

● Steady Signal Flow: Good brushes keep signals clear and clean even when the system is spinning really fast.

Choosing the Right Through Bore Slip Ring

Picking the right slip ring is more than just size. You need the right match for your machine, signals, and site. Here’s how to choose the best one:

Bore Size

It’s always best to start with the bore size and measure the shaft diameter with care using calipers. Then pick a slip ring with a slightly larger bore. This avoids rubbing or tight fits.

Circuit Count

Each wire going through the ring needs its own channel. A slip ring with higher channel count will be needed if the system is large.

Signal Type

Power lines and signal lines can’t always use the same ring. High-voltage rings can create noise that damages sensitive data. If you're running analog signals, encoder feedback, or Ethernet, always ask for signal-rated channels. Some rings support mixed-use, but it’s best to always check before mixing types.

Voltage And Current

Choosing a slip ring with a higher rating than the maximum voltage and current for each line will help to prevent heat buildup. If it’s not rated higher, the ring could fail early or cause a fire outbreak.

Speed And Duty

You need to know how often and how fast the machine rotates. Higher RPMs can put more wear on the brushes and bearings. This is why machines that run nonstop need higher-rated models.

Worksite Conditions

Whether it’s a clean lab or a dusty floor, you need the protection to match the environment. Open-frame models should only be used indoors in clean, dry air. The IP rating helps to know the conditions suited for each ring. IP65 or IP68 is best for outdoor or washdown gear.

Conclusion

Designing machines that rotate isn’t the hard part. Keeping them connected while they do? That’s where things fall apart. A through-bore slip ring isn’t just a part. It’s a shortcut to fewer failures, cleaner builds
