5 Design Factors When Selecting Cap Slip Rings

Slip ring design is fundamental to operational performance, reliability, and even safety. Whether you’re building high-speed camera turrets, compact robotics, or automated production lines, selecting the right design, you must consider multiple interdependent factors to ensure it's the right fit.

To help you with that, we’ll cover the six critical design parameters you must assess when choosing a cap slip ring for any serious application.

What Are Cap Slip Rings?

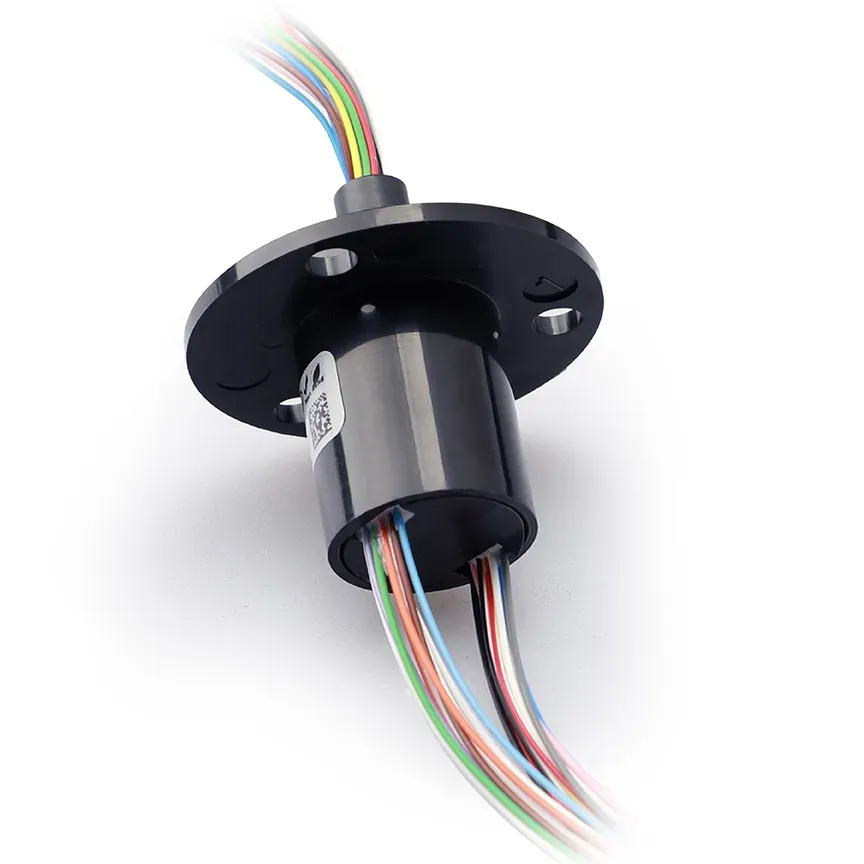

Cap slip rings, also called capsule slip rings, are rotary electrical joints that transmit power and/or signals between a stationary and a rotating component. They are small, compact cylinders with a rotor and a stator, suitable for installation in tight spaces.

Some spaces where slip rings are used include:

● Robotics

● CCTV gimbals

● Automated inspection equipment

● Medical diagnostic devices

5 Must-Know Design Factors for Picking a Cap Slip Ring

Now, let’s break down six core design considerations when selecting a slip ring for your system,  along with the implications behind each one.

1. Voltage and Current Ratings

These ratings determine the electrical performance and operational boundaries of a slip ring. If underrated, the capsule can overheat, have a dielectric breakdown, or even suffer catastrophic failure. Overrating, on the other hand, adds up to unnecessary cost and complexity.

To determine the best ranges, consider both the continuous and current capacity of your system.

● Peak current is usually allowed for short durations (e.g., motor startup).

● Continuous current is what the slip ring can carry indefinitely without heating beyond safe levels.

The system is typically designed around the continuous rating for safety. But you must also make sure the electrical specs match not just nominal conditions, but also handle transient events like surges or peak draw.

1. Safety margins: Select slip rings with voltage and current ratings higher than your system's normal operating range—usually by 20-30% safety margin. For instance, a 24V DC, 3A operating system should ideally employ a ring of 36V and 5A per circuit.

2. Use of surge protection: If you’re working in power-intensive applications such as welding machines, elevators, etc, you also need surge suppressors at both the input and output terminals of the ring to protect against over-voltage.

3. Thermal dissipation: Contact material is the most important factor in heat dissipation. Choose a slip ring with gold alloy, silver graphite, or similar, and a proper internal structure for heat efficiency.

2. Signal Type and Transmission Quality

In most systems, particularly modern automated and digital systems, signal purity is more critical than the power supply. Whether for analog or digital signals, your cap slip ring must preserve its integrity to control failures, data loss, or degraded performance.

If you have a hybrid system, it should feature both physical and electrical separation between channels. Also, incorporate strong internal shielding to prevent external electromagnetic interference (EMI) in all types, particularly in environments with motors, wireless transmitters, or switching power supplies.

3. Mechanical Durability

A slip ring may have excellent electrical characteristics, but if it fails mechanically under load, vibration, or continuous operation, it becomes a liability. A failure here could result in system downtime, expensive replacements, or even catastrophic device failure.

Mechanical durability is measured in terms of two factors:

● Operating Speed (RPM Requirements): This refers to the maximum number of rotations per minute (RPM) the slip ring can handle during normal use.

● Rotational Life Expectancy: This is the total number of rotations a slip ring can perform before it starts to wear out or degrade. Here’s a general idea of what to expect:

The mechanical design must also account for external stressors such as:

● Temperature Range: Standard models support –20°C to +60°C. For higher tolerance –40°C to +100°C, choose industrial or military grade models.

● Friction and Wear Rate: The brush-ring interface degrades over time. However, precious metals, low contact pressure, and lubrication could improve output and longevity. In general;

○ Graphite or copper brushes are cost-effective, high-wear, and need regular servicing.

○ Gold-on-gold systems have low friction, and corrosion-resistant, excellent for low-noise signals.

○ Silver carbon brush is the optimal maintenance-free choice.

● Exposure to Chemicals/Oils/Water: Make sure the housing and seals are resistant to corrosion, washdowns, or harsh cleaning agents. This is important for applications such as marine environments, chemical plants, or food processing.

4. Ease of Integration

Even a high-performance slip ring is useless if it doesn’t physically or electrically fit into your system. It should be compatible with your mechanical mounting, cable routing, electrical connectors, and even your manufacturing process.

1. Mounting Type: Cap slip rings offer several mounting options:

● Flange-mounted: Easy to install on panels or surfaces. Common in control cabinets.

● Through-bore (shaft-mounted): Required for rotary actuators or hollow shafts to pass pneumatic/hydraulic lines or rotary encoders.

● Hybrid/custom mounts: These may be needed for tight enclosures or machines with unusual geometries.

2. Cable: Choose axial or radial exits based on enclosure space. Make sure the cable will not bend or strain, which could cause cable fatigue and signal loss. Incorporate strain relief boots where possible.

5. Maintenance & Lifespan

The maintenance profile of the system not only helps you understand operational goals but also impacts the total cost of ownership (TCO). The biggest factor in this regard is serviceability:

1. Sealed slip rings (IP65/IP67): Maintenance-free but non-serviceable; preferred in medical, defense, or sealed industrial environments. Once worn, they must be replaced entirely.

2. Serviceable Slip Rings: Allow replacement of brushes or lubricants. Better for in-house maintenance teams with cost control needs.

Good suppliers provide MTBF (Mean Time Between Failures) ratings, which indicate statistical lifespan under defined conditions. Look for MTBF between 10,000–50,000 hours for industrial-grade rings. Use this in conjunction with your maintenance cycles and system downtime costs to project your budget.

Conclusion

Select a high-circuit slip ring with robust signal separation for demanding automation, opt for sealed and chemically resistant constructions for food or marine use, and provide low-friction, long-life parts for continuous operation systems.

Above all, always purchase from a trusted supplier who provides verified specs, lifecycle testing, and documentation assistance.
