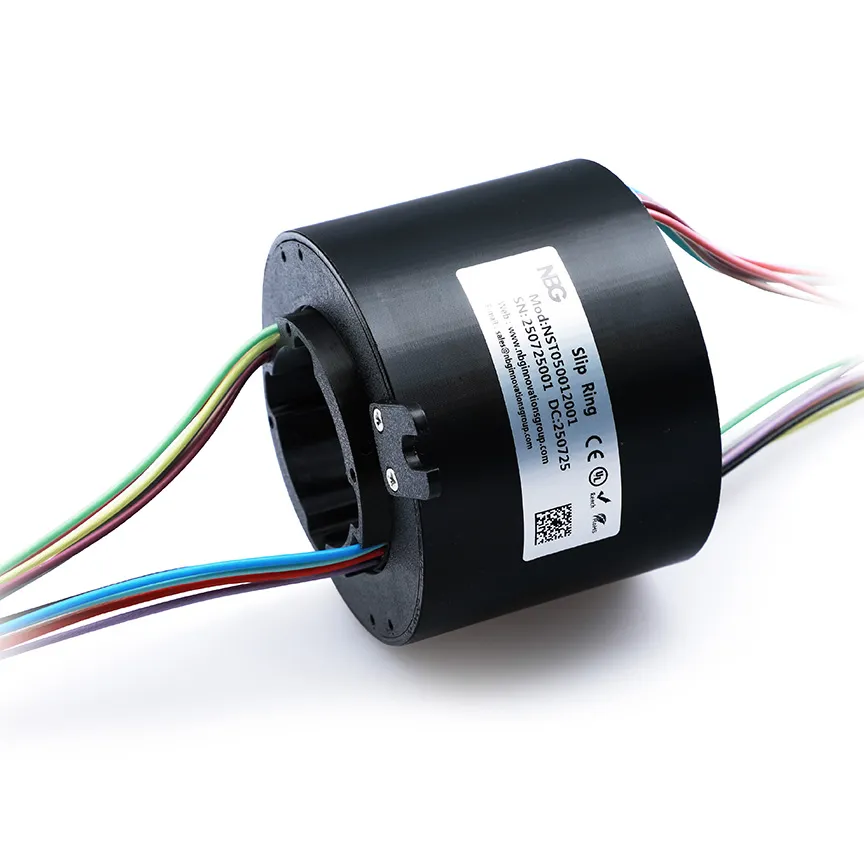

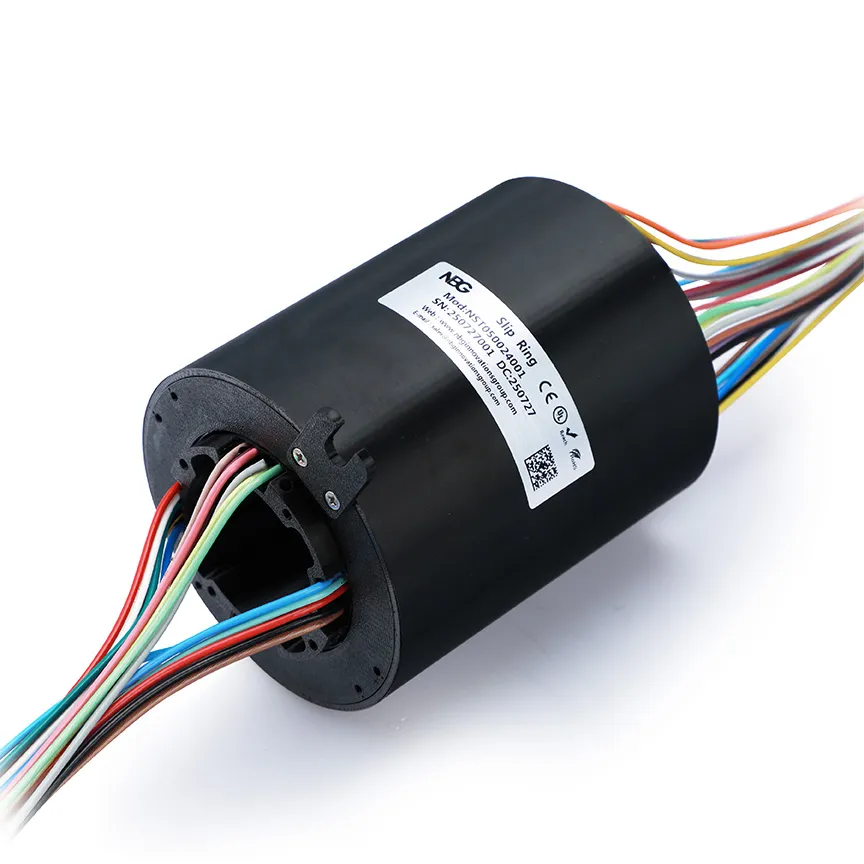

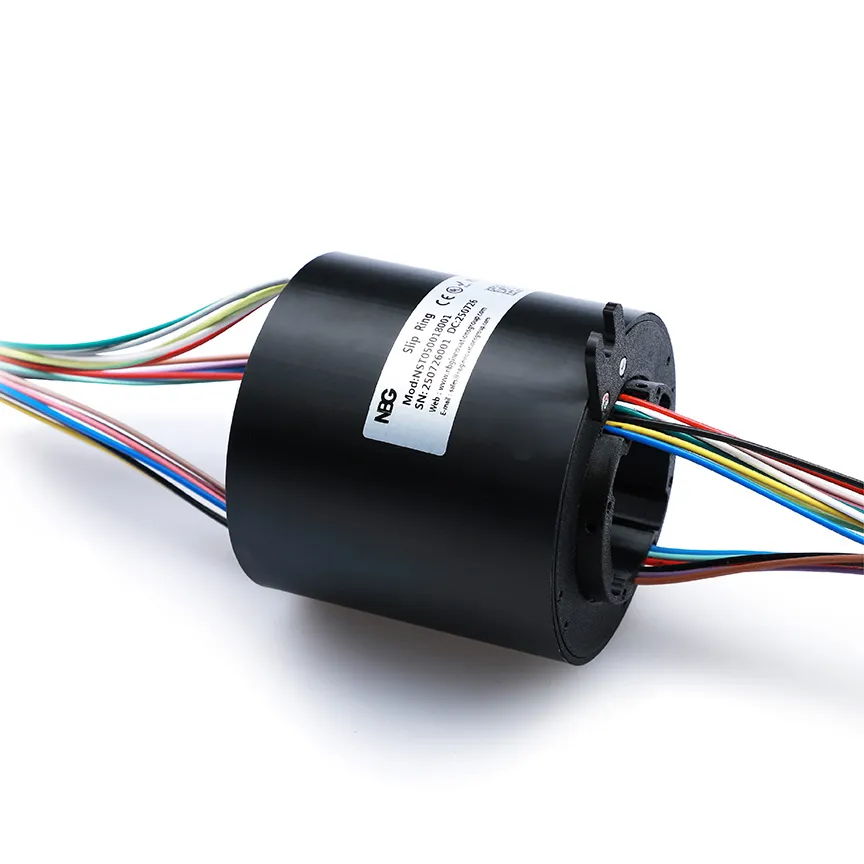

Through Bore Slip Ring

Through-bore slip ring is a general name of slip ring with hole in the center, it is mainly used to transmit precious signals, weak current, big current and high voltage

Features:

Hollow shaft design, mainly used for hydraulic or pneumatic tube and rotary joint.
Use advanced multi-point contact with precious mental to ensure the reliable contact with low friction.
Bore size is from 12.7mm to 300mm.
Standard product with stock.
Silver plated rings Silver alloy fiber brushes.
Support hybrid transmission of power and signals.
Circuits,current and voltage can be customized based on the standard model.

Consult Immediately

Model	ID(mm)	OD(mm)	Ring No.
NST003002001~NST003008001	3	17	2~8
NST004002001~NST004015001	4.5	22	2~15
NST007002001~NST007012001	7	24.8	2~12
NST007002002~NST007012009	7	29	2~12
NST012002001~NST012012001	12.7	33	2~12
NST012002002~NST012012002	12.7	54	2~12
NST020002001~NST020012001	20	42	2~12
NST020002002~NST020048002	20	69	2~48
NST020002004~NST020048003	20	69	2~48
NST025002001~NST025072001	25.4	86	2~72
NST025002003~NST025072002	25.4	86	2~72
NST025002005~NST025144007	25.4	119	2~144
NST030002001~NST030072001	30	99	2~72
NST038002001~NST038072001	38.1	99	2~72
NST038002003~NST038072002	38.1	99	2~72
NST050002001~NST050108005	50	104	2~108

Model	ID(mm)	OD(mm)	Ring No.
NST070002001~NST070108005	70	130	2~108
NST080002001~NST080108005	80	158	2~108
NST100002001~NST100108005	100	185	2~108
NST120002001~NST120108005	120	215	2~108
NST150002001~NST150108005	150	248	2~108
NST159002001~NST159108005	159	171	2~108
NST180002001~NST180108005	180	298	2~108
NST190002001~NST190108005	190	320	2~108
NST197002001~NST197108005	197	210	2~108
NST200002001~NST200108005	200	260	2~108
NST210002001~NST210108005	210	345	2~108
NST250002001~NST250108005	250	398	2~108
NST300002001~NST300108005	300	476	2~108
NST580002001~NST580108005	580	960	2~108
NST980002001~NST980108005	980	1360	2~108

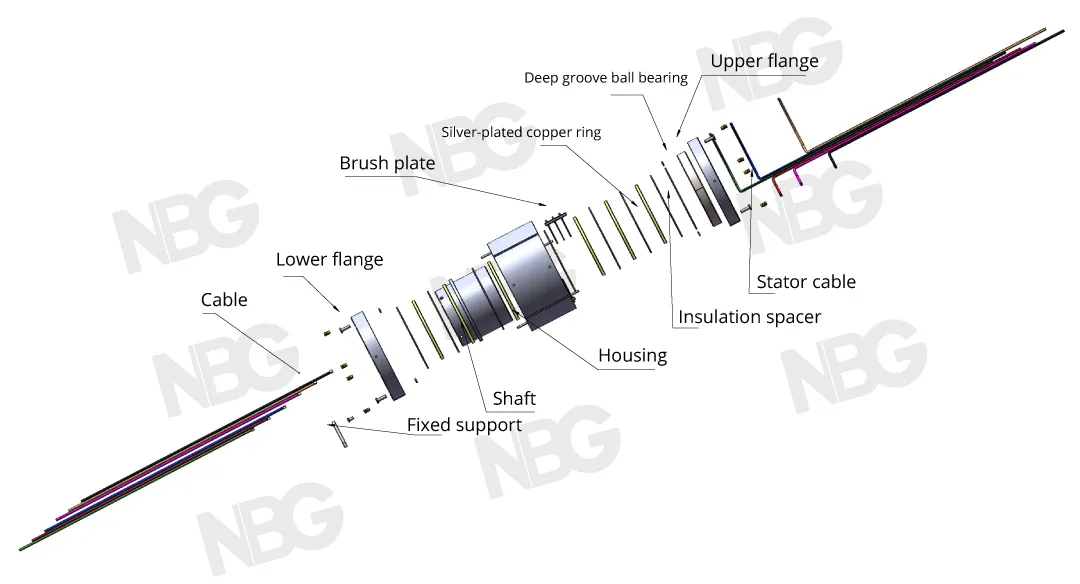

NBG Through-Hole Slip Ring Installation Guide

1

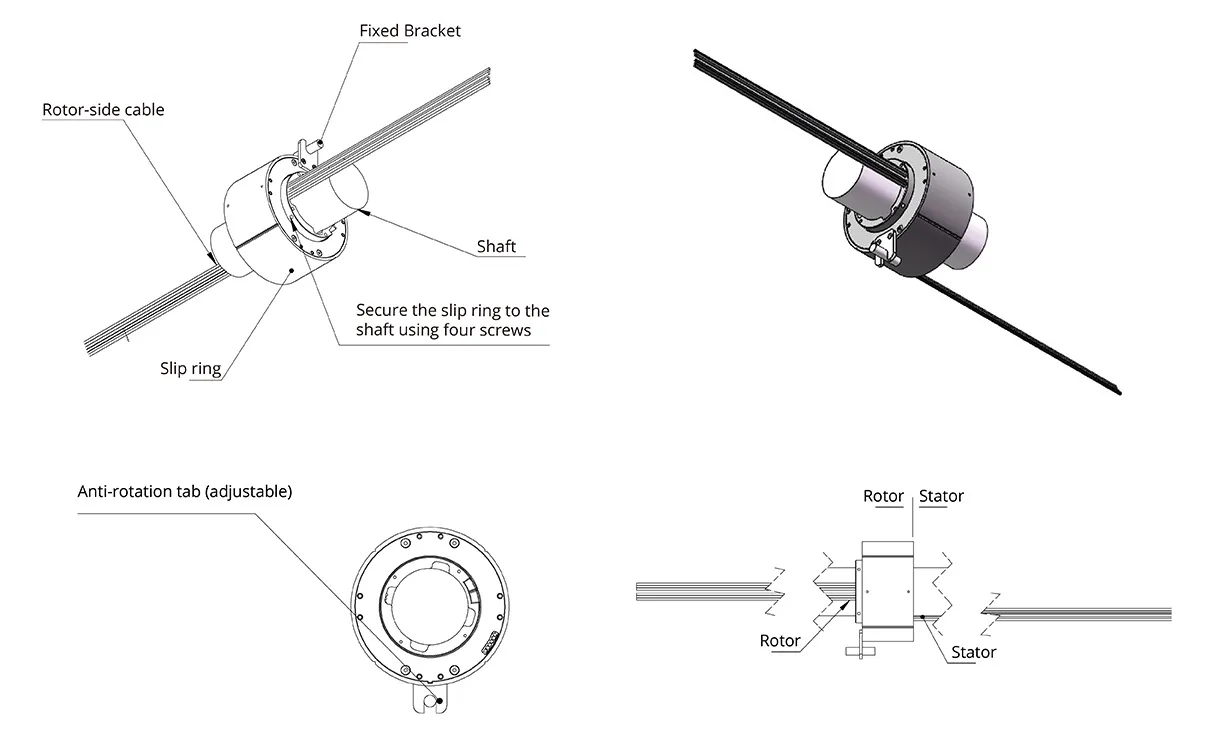

Preparation and Fixing: Prior to installation, plan and arrange the rotor-side and stator-side wiring. Then insert the slip ring onto the rotating shaft, align the shaft with the mounting holes, and secure the assembly using the four screws on the rotor side. Before tightening screws, ensure perfect concentricity between the shaft and slip ring to guarantee stable operation.
2
Anti-Rotation and Cable Management: Insert the locking rod into the U-shaped groove of the anti-rotation plate to secure the slip ring on the stator side. Simultaneously organize all cables to prevent entanglement with the rotor during operation, which could cause wiring damage or equipment failure.
3
Environmental Protection Notes: As precision electronic components, slip rings require additional targeted protective measures (e.g., installing protective enclosures) when used in harsh environments such as dusty, humid, or high-temperature conditions. Alternatively, select slip ring models with higher protection ratings to extend service life.

NBG Through-Hole Slip Ring Precautions

1
Weight Limit: The slip ring is not designed to bear loads; it must not support the weight of connected equipment. Ensure wires remain free from additional tension or weight loads to prevent structural damage.
2
Wire Protection: Maintain wire integrity during installation. Do not damage wire insulation to prevent electrical performance degradation or failures caused by insulation failure.
3
Connection Requirements: Use flexible connections instead of rigid ones between rotor and stator sides to reduce mechanical stress impact on the slip ring. This ensures long-term stable operation and extends service life.
4
Screw Retention: All fastening screws must be secured using locking measures (e.g., installing lock washers, applying threadlocking adhesive). This prevents vibration or impact during operation from loosening or dislodging screws, ensuring structural integrity.
