7 Most Common Applications Of Cap Slip Rings In Modern Machinery

From speeding up packaging lines to enabling complex robotics and medical imaging, slip rings have quietly become essential across modern machinery.

In this article, let's learn a bit more about what they are, how they work, and then dive into key cap slip ring applications in industrial automation, heavy machines, and healthcare equipment.

What Is a Cap Slip Ring?

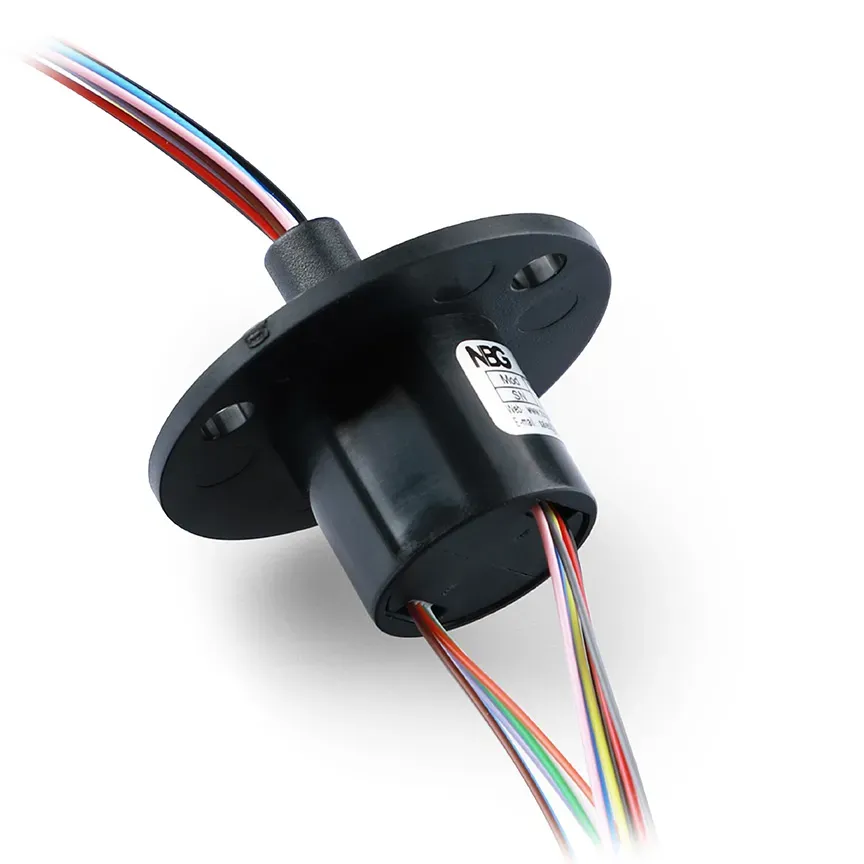

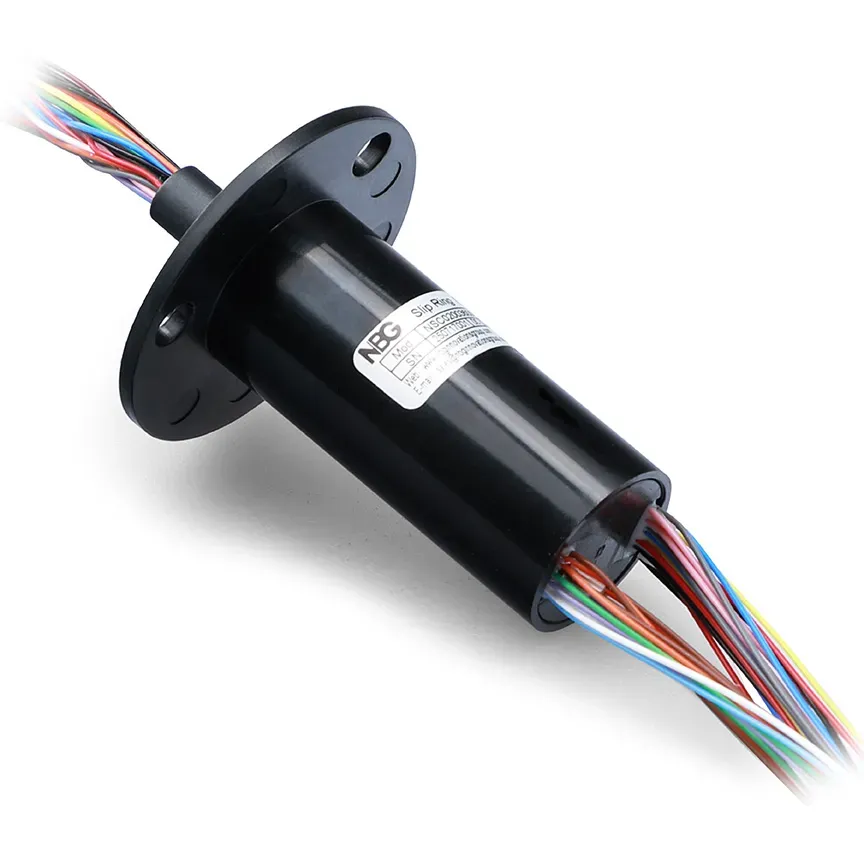

A cap slip ring (also called a capsule slip ring) is a small, cylindrical electromechanical device that allows power and signals to be transmitted between rotating and fixed components. It typically houses concentric metal rings and brushes—often multiple circuits—inside a small, sealed capsule.

Their size ranges from just over 10 mm in diameter to a few centimeters, depending on current capacity and number of channels. Some models include high-frequency or data-capable rings and are IP-rated for tough environments.

Applications of Cap Slip Rings in Modern Machinery

Let’s look at where we are using capsule slip rings in machinery and how they are making a real impact.

1. Industrial Automation

Compact slip rings for automation transmit power, control signals, and data through rotating parts, like packaging lines, robotic joints, or inspection heads, avoiding cable twisting.

a. Packaging Machinerya.

Mounted in rotary labelers, heat-sealing heads, and wrapping spindles, cap slips power motors and sensors continuously with no loss of motion.  That translates into higher line speeds, reduced maintenance, and limited downtime.

b. Filling Machinesb.

Rotary filling systems (bottles, vials, cosmetics, chemicals) benefit from cap slip rings to power actuators and read sensors like level detectors.  Which results in smoother, faster filling with fewer errors or mechanical failures.

c. Robotics & Inspection Systemsc.

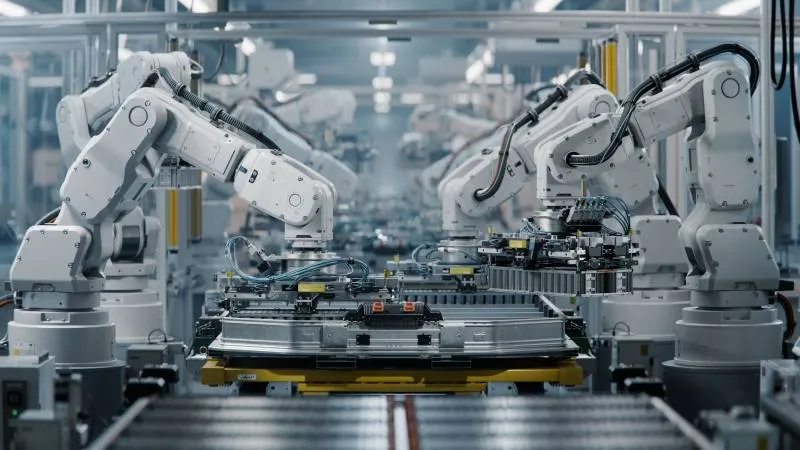

Cap slip rings are the essential component in any modern robotics joint that needs true 360° rotation, such as Industrial robot arms (SCARA, articulated), visual inspection robots, or PTZ surveillance cameras. They supply continuous power and high-bandwidth signals while enabling full control, resulting in such flexible, uninterrupted motion.

d. Industrial IoT / Automation 4.0

In smart factories, capsule slip rings carry both power and data (e.g., CANbus, Profinet, Profibus) through rotating joints in AGVs, test rigs, and automated handlers.

We’re also seeing smart, small slip rings for robotics with embedded diagnostics monitor brush wear, performance, and connectivity, feeding analytics and predictive maintenance. This reduces unplanned outages and aligns with digital transformation efforts.

2. Wound-Rotor Motors & Heavy Machinery

In wound-rotor or slip-ring motors, cap slip rings make life easy by routing external resistance into the rotor circuit.  That provides high starting torque and control of current, which is beneficial in heavy-duty equipment.

During starting, slip-ring connected adjustable resistors allow for inrush current reduction while still providing torque.  When the machine accelerates, resistance is reduced, enhancing efficiency and increasing component life.

a. Heavy machinery (crushers, harvesters, etc.)

Slip ring-fed resistance allows powerful starts and smoother operations in crushers, agricultural harvesters, and mixers, reducing mechanical stress.  As a result, the machines can gently ramp up heavy loads, extending equipment lifespan.

b. Mining Equipment

Drills, conveyors, and underground vehicles often need adjustable torque under harsh conditions.  Slip rings here must be rugged, sealed, and capable of heavy current, making them critical for reliable power transfer in dusty, highvibration environments.

c. Hybrid Rotary Joints

When precision rotary joints need to transmit power, data, and even fluids or air (via rotary unions), cap slip rings are combined into compact assemblies. That saves space, reduces install complexity, and increases uptime in cranes or hoists.

3. Medical Equipment

Cap slip rings are vital in medical devices, especially where precision, cleanliness, and noise control matter. With specialized high-alloy brushes and lownoise designs, they enable continuous rotation in imaging gear and surgical robots without contaminating or interfering with scans.

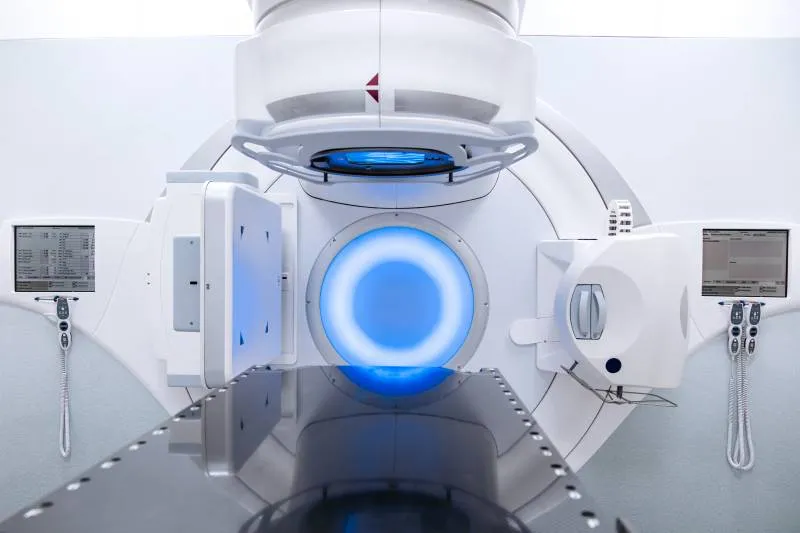

●CT & MRI scanners: Supply power and data to rotating electric connectors, ensuring uninterrupted imaging with minimal electrical noise.

●Surgical robots: In minimally invasive systems, slip rings power tool pivots and transmit control feedback, keeping motion smooth and sterile.

●Ultrasound and endoscopy: Enable probe rotation while carrying power and sensor signals—reducing cable fatigue and improving device life.

4. Military & Aerospace Solutions

Specialized, highly optimized cap slip rings are created for military applications with high RPMs, high G-forces, extreme temperatures, and faulttolerance to ensure absolute reliability under mission-critical conditions.

These units support hundreds of circuits (including Ethernet, 1553B, RF, video, and even fiber/fluids) to reach MILSTD specs level.

●Radar & antenna systems: Use capsule slip rings for continuous 360° rotation, enabling uninterrupted power and data links in surveillance radars.

●Remote weapon stations/tank turrets: They deliver power, video, and targeting data to rotating gun systems—key for real-time targeting and turret stabilization.

●UAV gimbaled cameras & EO/IR sensors: Support weight-critical drones with image payload rotation and untangled cables.

●Satellite & rocket utilities: Solar-panel arrays or docking systems use slip rings to power or transfer data from rotary components, commonly with hybrid RF/fiber assemblies.

5. Amusement Park Rides

Slip rings in amusement rides optimize safety and experience by helping transfer power, lighting, audio, and sensor data through precision rotary joint platforms or ride arms.  For example, slip rings in:

●Ferris wheels & carousels: Power lights, motors, and safety sensors through free-spinning joints.

●Spinning coasters / rotating cabins: Keep audio, lighting, comms, and emergency systems live during motion.

●Panoramic observation platforms: Enable 360° deck rotation without cable twisting.

6. Automated Welding & Cable Reel Machines

In welding and cable reel systems, cap slip rings silently do the heavy lifting—delivering power and control signals while the reel spins.  The results in extended cable life, uninterrupted welding, and precise control in automated assembly lines.

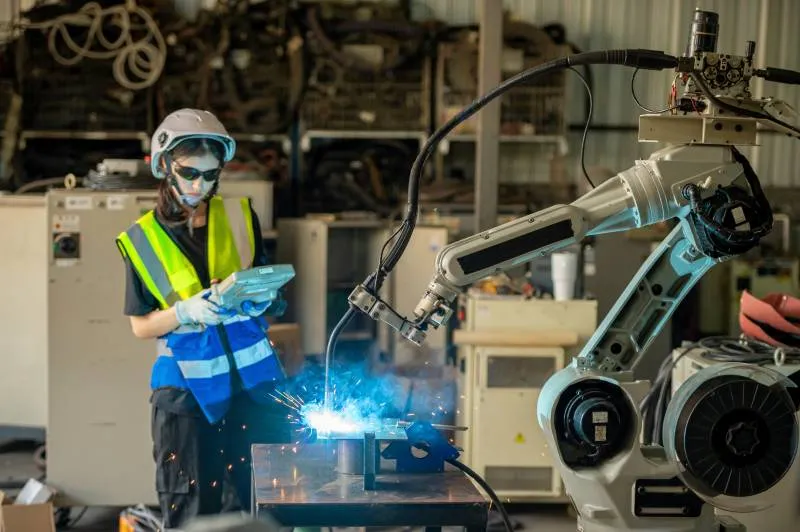

●Robotic weld heads: Mounted on spinning fixtures, they rely on slip rings for consistent power and trigger pulses.

●Cable reel spools: Utilize slip rings to replenish reels with power/control signals during unspooling, avoiding cable twists.

Other Cap Slip Ring Applications & Emerging Trends

Key Advantages Of Cap Slip Rings

●Compact & lightweight → fits tight installations, saves space, and reduces system weight.

●High circuit density → supports many power, signal, and data channels in one small package.

●Low torque operation → minimal mechanical resistance, extends component life.

●High Transmission Quality → Gold- or silver-fiber brushes ensure low electrical noise, stable high-frequency data transmission.

●Minimized contact wear → reduce friction, debris, and extend service life, especially critical in high-cycle or high-speed systems.

Final Thoughts

Whether powering massive theme-park rides or automating weld heads and mining drums, there is no limitation of miniature slip rings use cases. They are being used to deliver compact, reliable multi-channel rotary interfaces that excel under harsh, rotational, and environmental stress.

Their high circuit density, robust sealing, low-wear brushes, and mixed-signal performance make them indispensable across heavy industry and automation.
