Aerospace Applications: Slip Rings in Satellites

Modern satellites represent some of humanity's most sophisticated technological achievements, operating in the harsh environment of space while maintaining critical communication, navigation, and observation capabilities. The slip ring is an extremely important yet frequently underestimated component at the core of several satellite systems. They are precisely engineered designs to facilitate uninterrupted electrical connections between various stationary and rotating components and are thus important in the functioning of a satellite.

Slip rings in satellites are able to provide the connection that enables different subsystems to rotate in any direction whilst no interruption in power and data transmission occurs. In its absence, a good proportion of sophisticated features that we now enjoy courtesy of modern satellites would be unattainable.

Why Slip Rings Are Crucial in Satellites

Slip rings in satellites, also referred to as rotary interfaces for spacecraft, allow electrical current to pass between a stationary structure and a rotating one. It is necessary since most of the satellite parts have to turn in order to fulfill their duties. As an example, the communication antennas help to rotate to ensure contact with ground stations when the satellite circles the earth. Solar arrays tilt to maximize sun-gathering and instruments such as scanning radiometers or telescopes can swivel to scan broad sectors or follow objects.

Traditional cables struggle to function on satellite rotating components due to inherent risk of entanglement. The solution lies in slip rings, which enable seamless rotation without cable tangling. These satellite-specific slip rings withstand extreme conditions including vacuum environments, temperature extremes (-150℃ to +150℃), radiation exposure, and vibration stress. This robust design ensures smooth satellite deployment from launch vehicles to long-term operational stability.

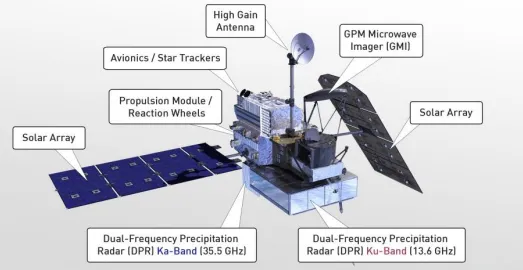

Satellite Subsystems That Use Slip Rings

Slip rings in satellites are integral to several subsystems, each serving a critical role:

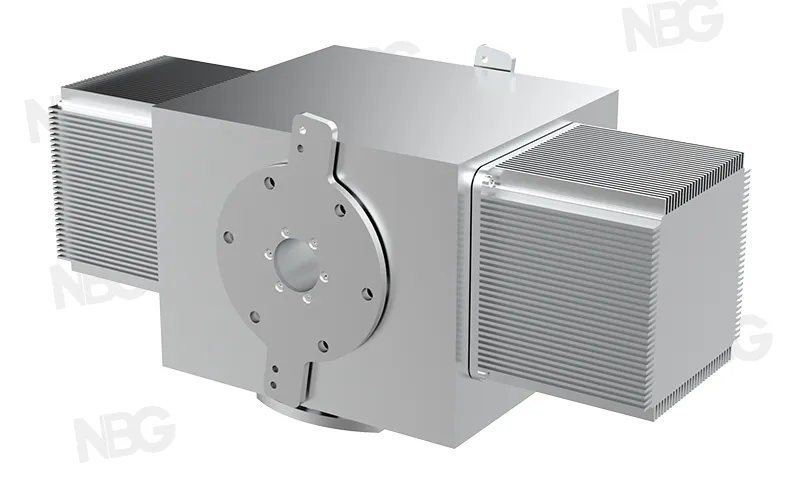

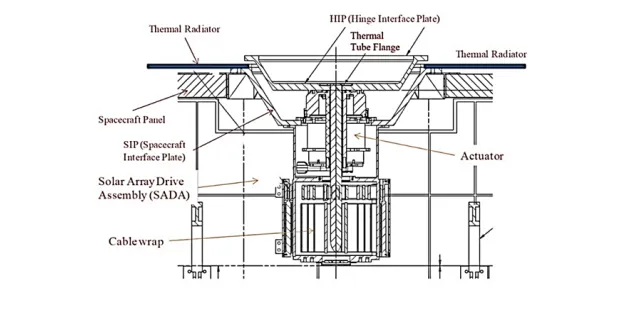

● Solar Array Drive Assemblies (SADAs): Solar arrays retrieve the power used by the satellite through capturing the sunlight. They are rotated to follow the sun in order to ensure maximum efficiency. SADAs have solar array slip rings which distribute power that is electrically generated to the satellite systems.

● Antenna system: The satellite communicates through the antenna and establishes connections with the ground or other satellites. The satellite antenna slip ring technology enables these antennas to rotate while maintaining transmission of microwave and control signals.

● Payloads: The equipment or instrumentation on board can be rotating scientific gear (cameras) or the imager (Earth observation camera). Slip rings ensure continuous power and data flow for these payloads.

Key Features of Satellite-Grade Slip Rings

Space-qualified slip rings must meet stringent requirements to operate in space:

●High Reliability: Since satellites cannot be serviced in space, slip rings should be extraordinarily dependable.

●Durability: The hostile universe consisting of extremes of temperature, vacuum and radiations, would require strong materials such as space-grade alloys and high-tech ceramics, to resist degradation.

●Compact Design and Low Mass: Slip rings allow a low mass, compact design that supports performance at a low cost of launch.

●High Speed Data transfer: Satellites today have high bandwidth communication and slip rings facilitate high amounts of data transfer with insignificant loss.

●Space Qualification: Slip rings are highly tested to provide a measure of meeting space standards, such as being able to resist outgassing in vacuum environments.

Slip Ring Types for Satellite Applications

Different satellite functions require optimized rotary joints for satellite designs:

●Contact transmission slip ring: this is the most commonly used slip ring at present. The transmission between the stator and rotor is through the contact transmission of gold alloy brushes and gold-plated rings. This technical solution will generate very low abrasive dust production from friction between brushes and rings, high reliability, long service life, and meets the technical requirements of other aerospace industry.

●Wireless transmission slip ring ：Through wireless transmission technology, the non-contact transmission between stator and rotor can be realized, which can improve the reliability of satellite. It is a new generation of satellite slip ring technology.

●Hybrid slip ring The signal is transmitted through wireless transmission technology, and the current is still transmitted through physical contact of gold and gold, which is a compromise technical solution.

●Microwave rotary joint：Waveguide rotary joints can be classified into structural types such as Type I (both ends aligned with the rotation axis), L-type (one end perpendicular to the rotation axis), and U-type (both ends perpendicular to the rotation axis) . Working principle: The electromagnetic energy is concentrated at the waveguide center, far from the wall, thus preventing longitudinal currents on the waveguide surface. This design enables them to achieve high power capacity, low insertion loss, and excellent amplitude and phase stability.

Testing and Space Qualification Standards

The path from design to orbit is paved with rigorous testing. Space-qualified slip ring manufacturers adhere to stringent standards to ensure survival and performance:

●Environmental Testing: Vibration (simulating launch stresses), thermal vacuum cycling (TVAC - replicating space vacuum and temperature extremes), bake-out (to accelerate outgassing before integration).

●Life Testing: Accelerated life testing under vacuum and temperature to simulate years of operation in a shorter timeframe.

●Performance Testing: Extensive electrical testing (contact resistance, insulation resistance, dielectric strength, signal integrity, RF performance) before, during, and after environmental exposure.

●Materials Screening: Strict control and testing of all materials for outgassing (using ASTM E595), radiation tolerance, and magnetism.

Final Thoughts

The slip ring in satellites is far more than a simple electrical connector; it is a highly engineered rotary interface for spacecraft enabling the very functionality that defines modern satellite missions. From keeping the lights on via the solar array slip ring to enabling global communication through the satellite antenna slip ring, these critical components work silently in the harsh environment of space. The development of aerospace slip ring technology, meeting the exacting demands of space-qualified slip ring standards, represents a triumph of precision engineering and materials science. As satellites grow more complex, demanding higher power transfer, faster data rates, and higher reliability, the evolution of slip rings – including advanced hybrids and contactless transmission technologies – will continue to be fundamental to the success of future space exploration and global connectivity. They remain the unsung heroes, ensuring the vital flow of energy and information across the rotating joints that keep our eyes in the sky functioning perfectly.
