FORJ Product Details

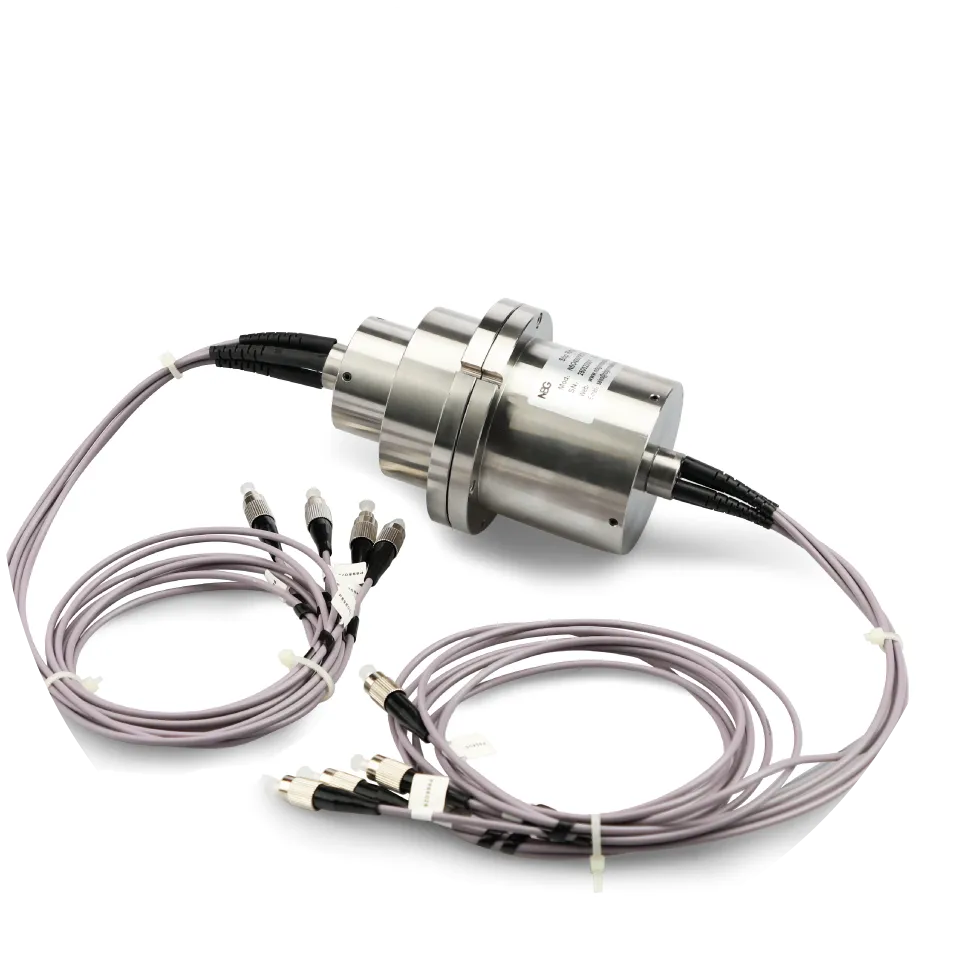

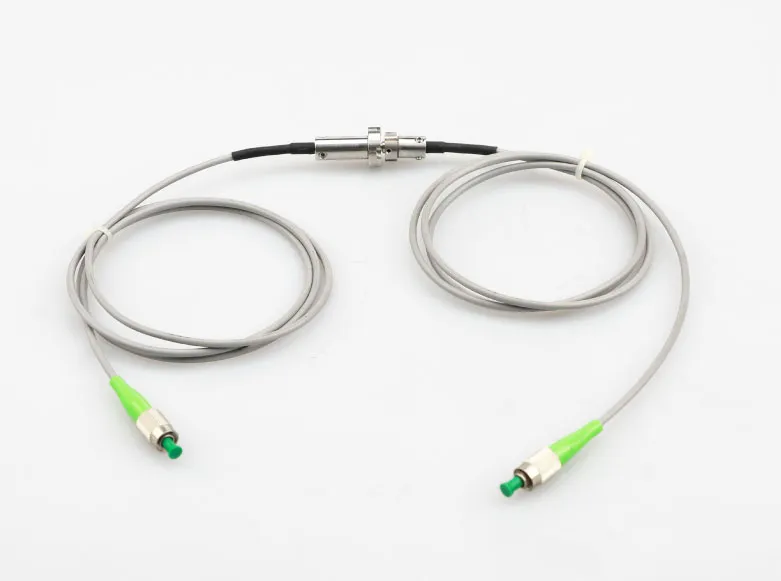

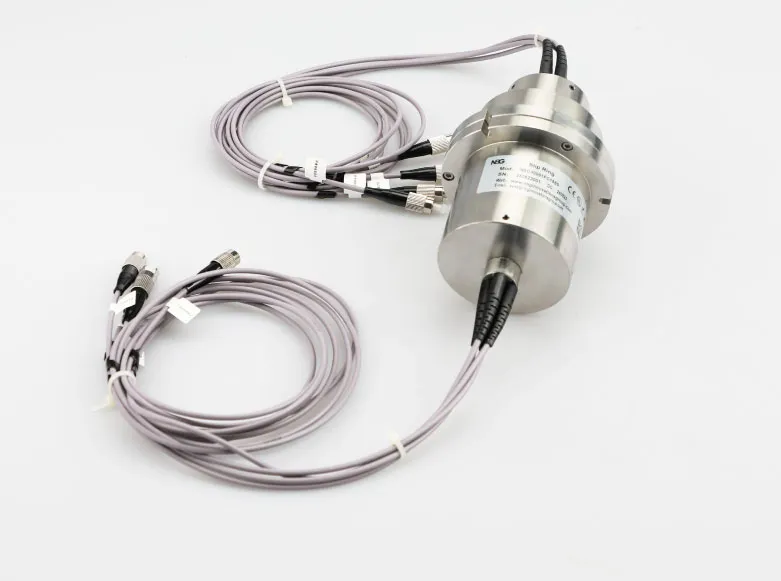

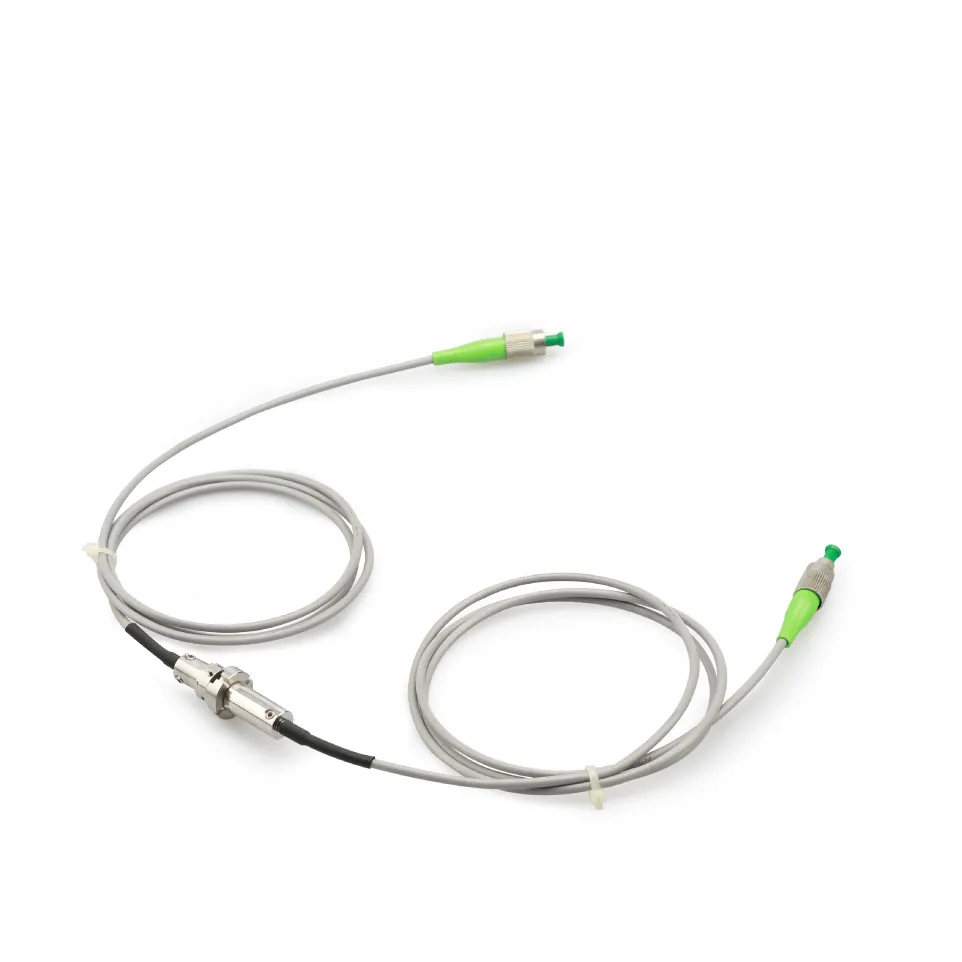

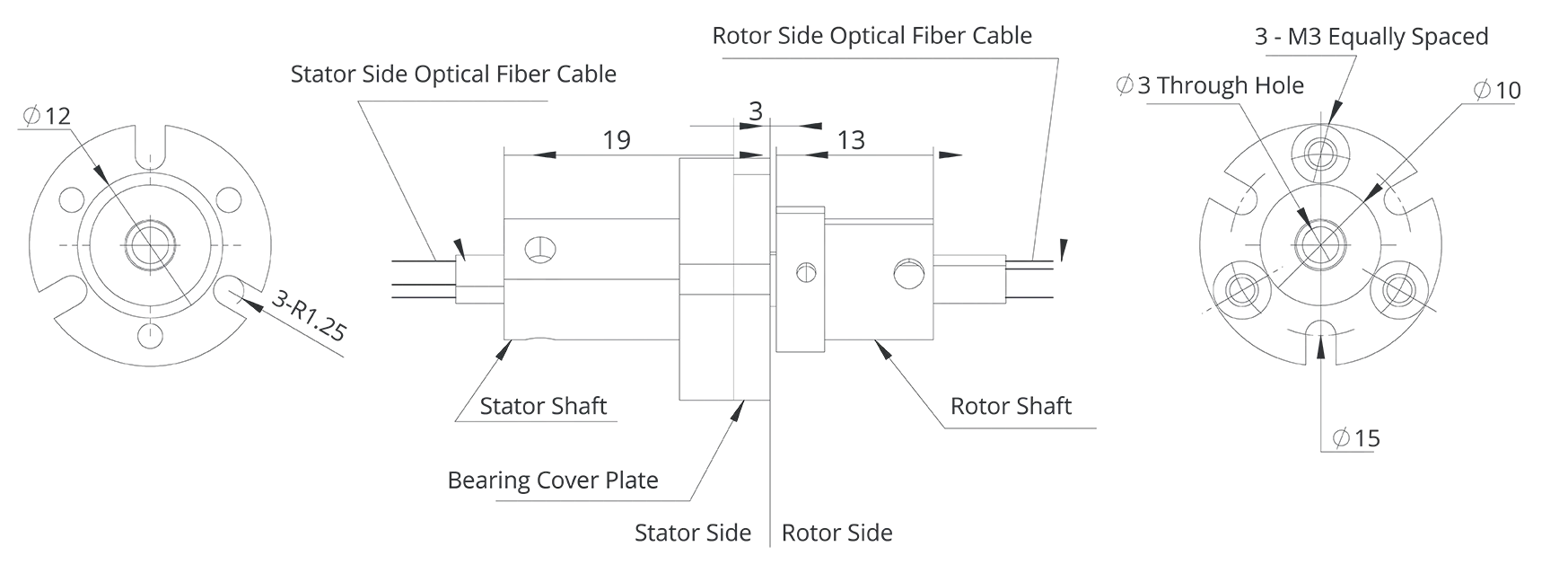

FORJ SLIP RING

NSO10001FC1550

FACTS

Low insertion loss, high rotation speed
Non-contact, zero friction, long lifetime, 1 channel can achieve 100 million revs
Small volume, low weight, high sealing degree
Fiber optic transmitting signal, no electromagnetic interference, long-distance

It can perfectly transmit data on 360 degree rotating, it is also specially suitable for occasion where it needs to transmit large volume data/signal from fixed position to rotating position under unlimited, continuous of discontinuous otating, which can improve mechanical property, simplify system operation and avoid rotating of turning joints destroying the fiber optic.

SPECIFICATIONS

Type	Single-mode (SM)	Multi-mode (MM)
Wave-width(nm)	±50	±50
Max.insertionloss, 23℃(dB)	1.5	1.5
Insertion loss ripple(dB)	0.7	0.7
Return loss(dB)	≥50(APC) ≥40(PC)	≥30
Max. input power(dBM)	23	23
Weight (g)	50	50
Max. rotating speed (rpm)	10000	10000
Lifetime	>500 million revs	>500 million revs
Working temperature(℃)	-45~85	-45~85
Storage temperature(℃)	-50~85	-50~85
Protection grade	IP65	IP65

Optional stainless steel housing
Military grade
Customize the number of fiber optic
Optional IP65
Up to C5 anti-corrosion grade
Customizable fiber connector,fiber type and fiber pigtail length

EXPLANATION

Fiber type code	Fiber connector code	Wavelength code
01: 9/125um, single-mode	FC: FC connector	01: 1550 (single-mode)
02: 50/125um, multi-mode	ST: ST connector	02: 850 (multi-mode)
03: 62.5/125um, multi-mode	SC: SC connector
LC: LC connector
The connector face is PC by default, if APC is needed, APC should be added behind, such as FC/APC

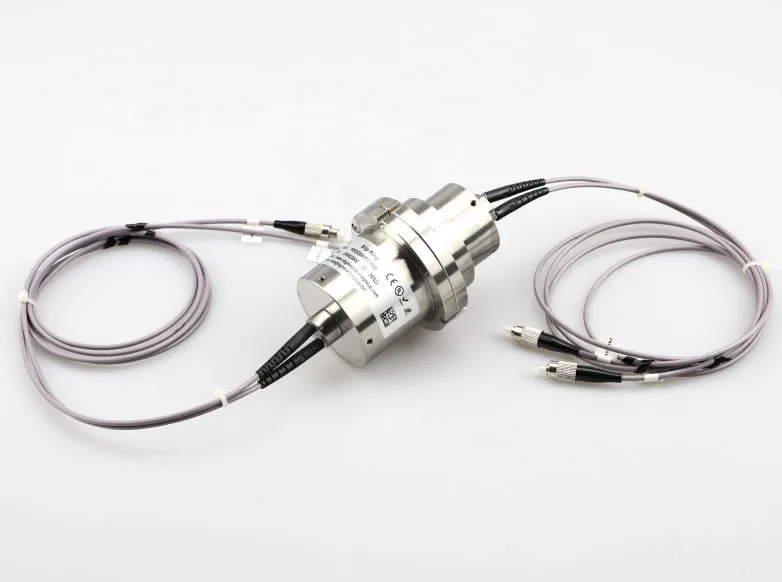

FORJ SLIP RING

NS020001FC1550

FACTS

Low insertion loss, high rotation speed
Non-contact, zero friction, long lifetime, 1 channel can achieve 100 million revs
Small volume, low weight, high sealing degree
Fiber optic transmitting signal, no electromagnetic interference, long-distance

It can perfectly transmit data on 360 degree rotating, it is also specially suitable for occasion where it needs to transmit large volume data/signal from fixed position to rotating position under unlimited, continuous of discontinuous otating, which can improve mechanical property, simplify system operation and avoid rotating of turning joints destroying the fiber optic.

SPECIFICATIONS

Type	Single-mode (SM)	Multi-mode (MM)
Wave-width(nm)	±50	±50
Max.insertionloss, 23℃(dB)	4	4
Insertion loss ripple(dB)	2	2
Return loss(dB)	≥55(APC) ≥40(PC)	≥30
Max. input power(dBM)	23	23
Weight (g)	1500	1500
Max. rotating speed (rpm)	400	400
Lifetime	>200 million revs	>200 million revs
Working temperature(℃)	-45~85	-45~85
Storage temperature(℃)	-50~85	-50~85
Protection grade	IP65	IP65

Optional stainless steel housing
Military grade
Customize the number of fiber optic
Optional IP65
Up to C5 anti-corrosion grade
Customizable fiber connector,fiber type and fiber pigtail length

EXPLANATION

Fiber type code	Fiber connector code	Wavelength code
01: 9/125um, single-mode	FC: FC connector	01: 1550 (single-mode)
02: 50/125um, multi-mode	ST: ST connector	02: 850 (multi-mode)
03: 62.5/125um, multi-mode	SC: SC connector
LC: LC connector
The connector face is PC by default, if APC is needed, APC should be added behind, such as FC/APC

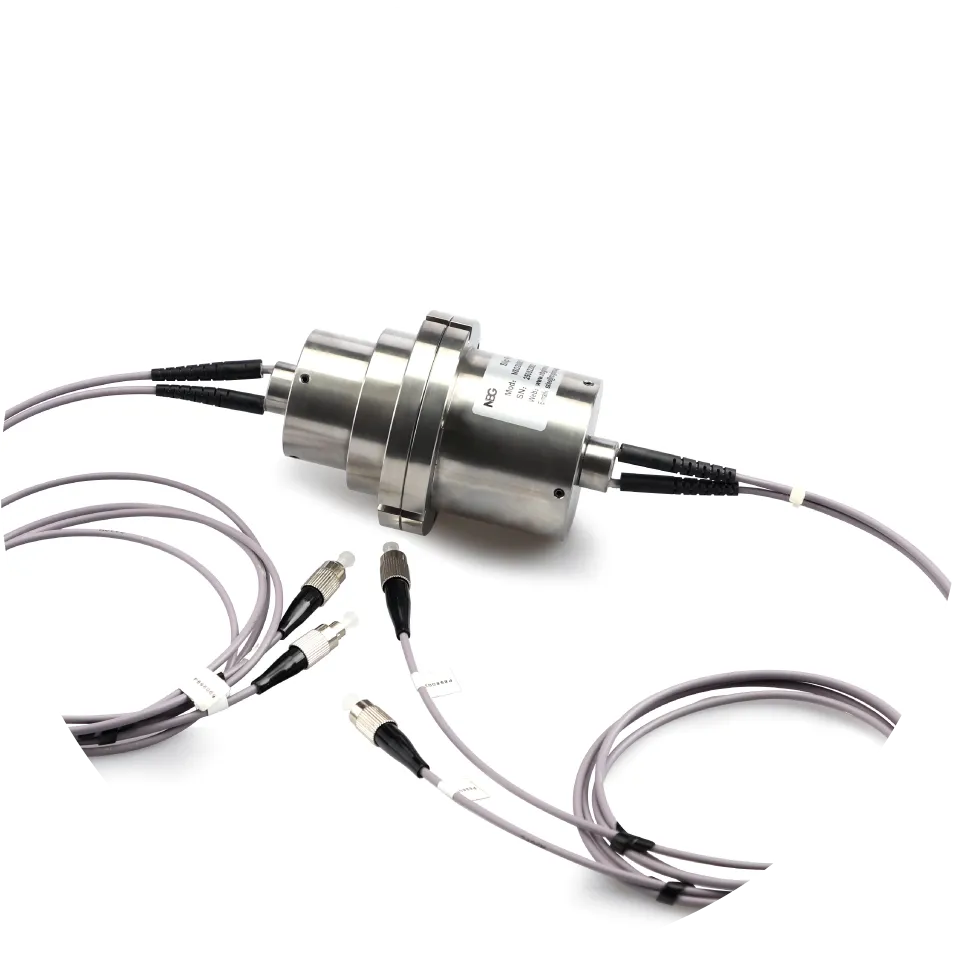

FORJ SLIP RING

NS040001FC1550

FACTS

Low insertion loss, high rotation speed
Non-contact, zero friction, long lifetime, 1 channel can achieve 100 million revs
Small volume, low weight, high sealing degree
Fiber optic transmitting signal, no electromagnetic interference, long-distance

It can perfectly transmit data on 360 degree rotating, it is also specially suitable for occasion where it needs to transmit large volume data/signal from fixed position to rotating position under unlimited, continuous of discontinuous otating, which can improve mechanical property, simplify system operation and avoid rotating of turning joints destroying the fiber optic.

SPECIFICATIONS

Type	Single-mode (SM)	Multi-mode (MM)
Wave-width(nm)	±50	±50
Max.insertionloss, 23℃(dB)	4	4
Insertion loss ripple(dB)	2	2
Return loss(dB)	≥55(APC) ≥40(PC)	≥30
Max. input power(dBM)	23	23
Weight (g)	1500	1500
Max. rotating speed (rpm)	400	400
Lifetime	>200 million revs	>400 million revs
Working temperature(℃)	-45~85	-45~85
Storage temperature(℃)	-50~85	-50~85
Protection grade	IP65	IP65

Optional stainless steel housing
Military grade
Customize the number of fiber optic
Optional IP65
Up to C5 anti-corrosion grade
Customizable fiber connector,fiber type and fiber pigtail length

EXPLANATION

Fiber type code	Fiber connector code	Wavelength code
01: 9/125um, single-mode	FC: FC connector	01: 1550 (single-mode)
02: 50/125um, multi-mode	ST: ST connector	02: 850 (multi-mode)
03: 62.5/125um, multi-mode	SC: SC connector
LC: LC connector
The connector face is PC by default, if APC is needed, APC should be added behind, such as FC/APC

Model	Optic Fiber Channel	Circuits No.	OD
NSO100	1	0	10.1
NSO100A	1	0	6.7
NSO100B	1	0	12.7
NSO102	1	1~30	24.8
NSO107	1	1~24	33
NSO108	1	1~48	56
NSO109	1	1~96	86
NSO200	2	0	67
NSO200B	2	0	67
NSO208	2	1~96	119
NSO400	4	0	67
NSO400B	4	0	67
NSO408	4	1~96	119
NSO600	6	0	67
NSO608	6	1~96	119
NSO800	8	0	67
NSO808	8	1~96	119
