Application Of Contactless Transmission In Wind Turbine Slip Ring

Introduction

With technological advancements, wind turbines are becoming larger in size and more efficient in power generation. Consequently, the demand for their reliability has also increased. A major challenge lies in ensuring stable transmission of control commands and sensor signals. If signal transmission experiences interruptions or packet loss, the rotor blades must be feathered (retracted), causing the turbine to lose valuable power output. Traditional contact-based transmission methods, due to inevitable wear and generation of debris, negatively impact signal transmission stability.

To address this issue, contactless transmission can eliminate friction-induced debris，significantly improving reliability. Additionally, higher data transmission bandwidth allows more sensor signals to be transmitted simultaneously. Contactless slip rings also require no maintenance, drastically reducing operational workload.

Next, we will explore why and how these solutions have become so critical

What Is Contactless Transmission?

Contactless  transmission refers to technologies that enable data or energy transfer without physical connections, utilizing Optic signal、electromagnetic fields、radio frequencies or other wireless coupling mechanisms. These technologies eliminate issues like mechanical wear, debris generation, and signal instability associated with traditional contact-based methods.

Among various forms of non-contact transmission, Fiber Optic Rotary Joints (FORJ) and Capacitive Coupling Contactless transmission are particularly favored in the wind turbine industry due to their proven operational reliability and performance.

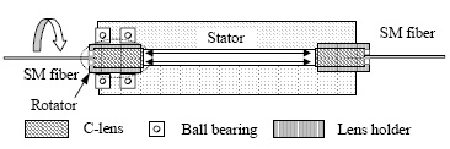

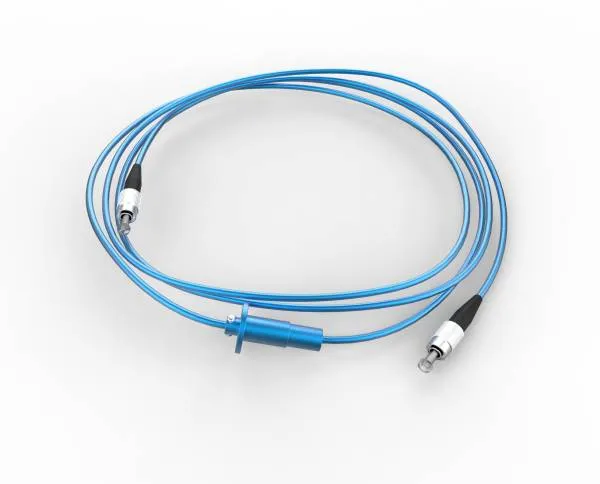

1. Fiber Optic Rotary Joint (FORJ)

A FORJ is a critical device that ensures continuous optical signal transmission across rotating interfaces. Its non-contact design aligns input and output fibers to provide an uninterrupted pathway for optical signals. Key Benifit include:

• Low insertion loss

• High return loss

•  Minimal signal distortion

•  Stable operation under high-speed rotation conditions

1.1 Types of FORJs

Depending on applications, there are four types.

• Single-channel FORJ uses a single fiber.

• Multi-channel FORJ supports multiple fibers (up to 20+).

• Single-mode (SM) offers high-bandwidth transmission for longer distances.

• Multi-mode (MM) is suitable for short distances.

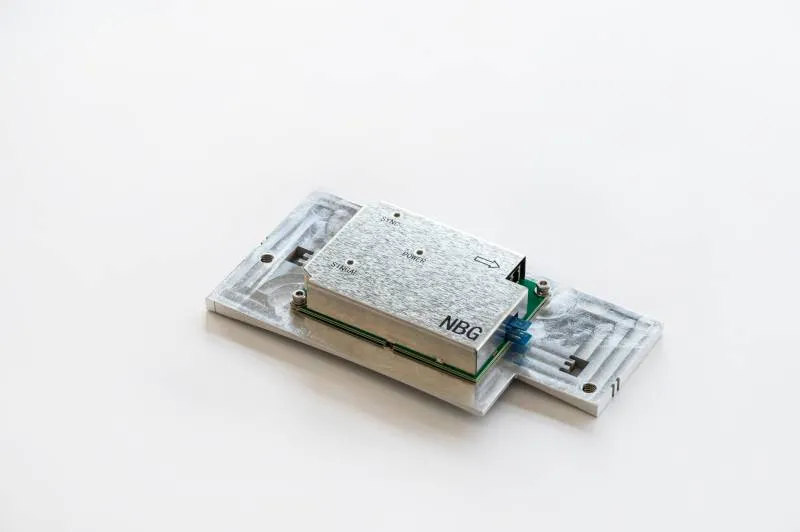

2. Capacitive Coupling Contactless Transmission

Capacitive coupling contactless transmission is a near-field communication technology that transfers energy and signals through the electromagnetic field formed between the transmitter and receiver. Its key features include:

· Ultra-low latency (only a few hundred nanoseconds)

· Extremely low bit error rate (BER as low as 10⁻¹²)

· High bandwidth (1-10 Gbit/s per channel)

As one of the most reliable wireless transmission technologies available, it is particularly suitable for applications requiring high-speed, stable, and interference-resistant data transmission scenarios.

2.1 Types of Capacitive Coupling transmission

Depending on applications, there are Two types.

● unidirectional transmission.

● Bidirectional contactless transmission .

Both FORJ and capacitive coupling are widely adopted in wind turbines for their ability to maintain stable communication and power delivery in dynamic, high-stress environments

Why Are Contactless Transmission Modules Used in Wind Turbine Pitch Slip Rings?

1.Reliability Requirements

Wireless transmission eliminates physical contact, thereby avoiding wear, debris generation, and mechanical fatigue. Its vibration resistance and non-contact nature significantly enhance system reliability

2.High Bandwidth Capability

Wireless modules support data transmission rates exceeding 1 Gbit/sec, meeting the demands of high-volume sensor data and real-time control signals in pitch systems

Limitations of electrical-only slip rings in signal integrity

Electrical slip rings transmit current and control signals through physical sliding contact between brushes and metal conductive tracks. This friction inevitably generates debris, which requires regular maintenance for removal. Without proper upkeep, the accumulation of debris can lead to:

· Increased contact resistance

· Elevated background noise

· Data packet loss

Additionally, prolonged operation wears off the plated coating on the conductive tracks, further increasing resistance and exacerbating data loss

In contrast, non-contact transmission eliminates physical wear by avoiding mechanical contact, thereby ensuring long-term signal integrity and reliability

Real-time control

Low latency and high bandwidth don't stop communication for a moment. Therefore, you can fetch better real-time control.

Where Contactless Transmission Are Applied In The Pitch Control System

In wind turbine operations, the main control system determines wind speed and direction using anemometers, while the central control system formulates control strategies. These strategies primarily involve:

1. Yaw control to align the rotor plane with wind direction.

2. Pitch control via slip rings to transmit commands to the pitch system.

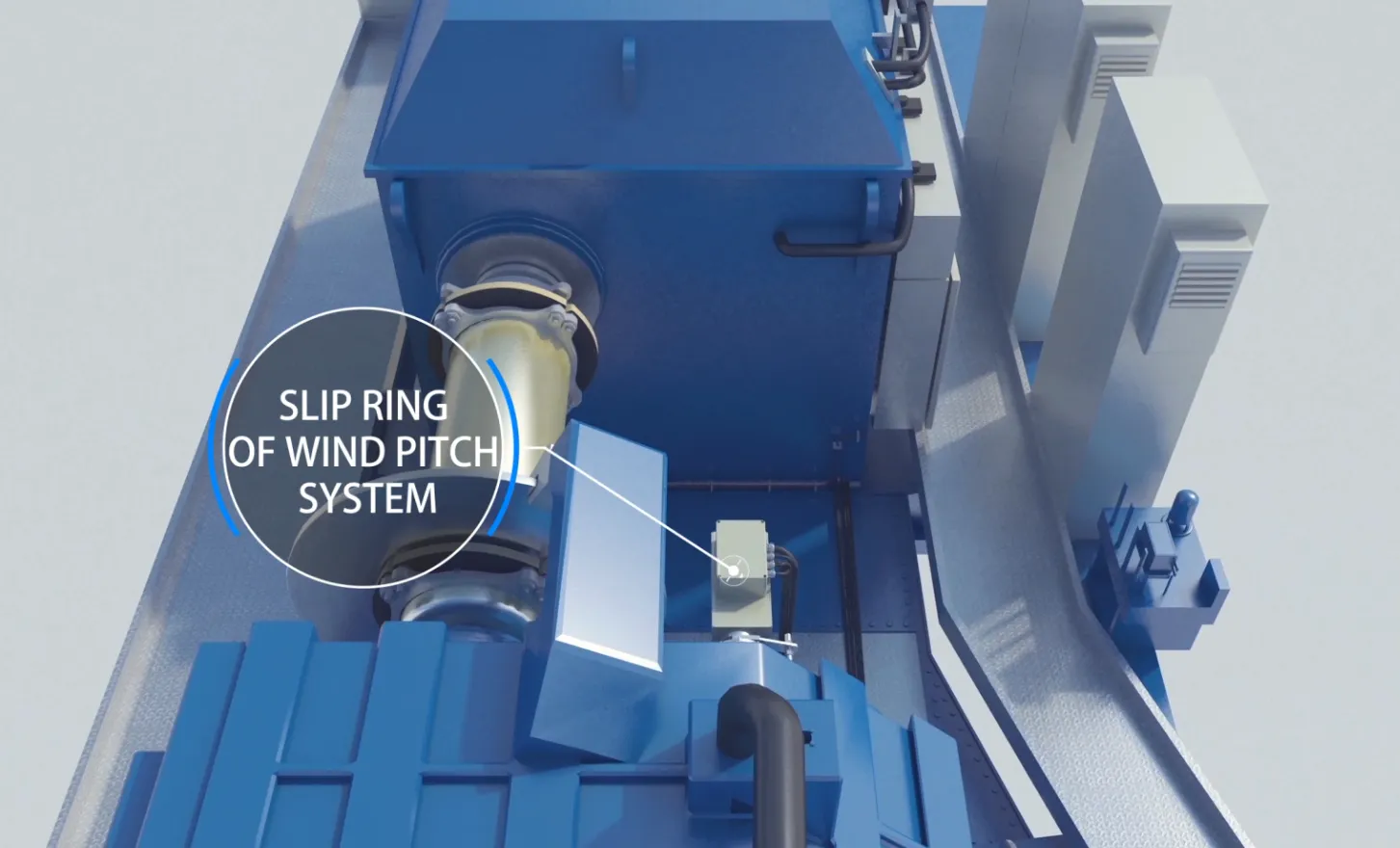

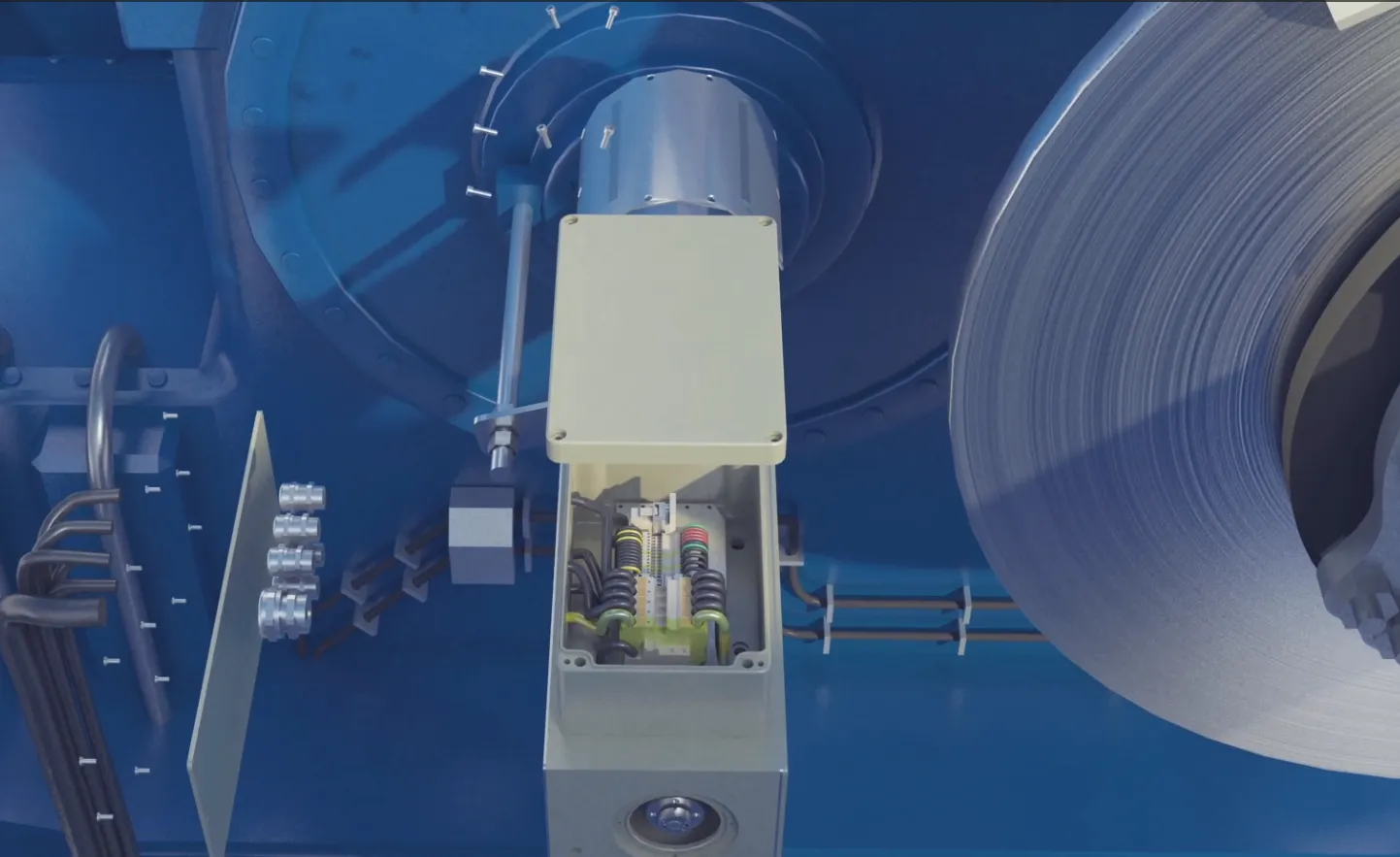

Since the main control system resides in the nacelle and the pitch system operates within the rotating hub, slip rings are traditionally used to transfer power and control signals. However, as turbines scale up, signal stability in pitch slip rings becomes critical—signal packet loss may trigger unintended blade feathering, leading to significant power generation losses.

To enhance reliability, wireless transmission modules have been adopted in certain turbine models. These modules replace or supplement slip rings, offering:

● Elimination of mechanical wear (no brushes or conductive tracks) .

● Immunity to debris-induced interference, a common issue with slip rings .

● High-speed data transmission (e.g., 1 Gbit/s) to support real-time pitch adjustments .

Field tests demonstrate that wireless solutions significantly improve operational reliability and reduce maintenance costs compared to traditional slip rings

Key Benefits Of FORJ Or Capactive Coupling Contactless Transmission Module In Wind Turbine Slip Rings

FORJ or Capactive Coupling contactless transmission module is ideal for wind turbine slip rings and optimizes the overall functionality and efficiency of the system. They can offer the following amenities to the users.

Signal Transmission Reliability

As a contactless transmission technology, it eliminates mechanical wear and prevents contamination from debris, resulting in exceptionally high reliability.

Bandwidth

Do you have a large amount of data? A higher bandwidth is the solution. The good news is that FORJ or Capactive Coupling contactless transmission module they all provide a higher bandwidth for massive data handling and transmission.

Low Maintenance

FORJ or Capactive Coupling contactless transmission module make contactless transmission and sealed components. So, there are no risks of wear and tear, leading to zero maintenance costs. You don't have to replace components for extended periods.

Longer Lifespan

 You are not dealing with the mechanical components. There is no electromagnetic interference effect. Less environmental impact and harsh conditions add to durability. So, fiber optics have a longer lifespan.

Scalability

Do you plan to expand your data transmission? FORJ or Capactive Coupling contactless transmission module is the latest technology with easy upgrades and advanced features. As needed, you can expand the data transmission due to higher bandwidth and scale the wind turbine system.

Offshore Wind Turbines: A Major Driver for FORJ or Capactive Coupling contactless transmission module Adoption

Offshore wind turbines, characterized by their high single-unit power output and harsh operating environments, face significant challenges in maintenance costs and operational difficulty. The adoption of wireless slip ring technology can substantially enhance turbine reliability by:

● Eliminating mechanical wear in traditional contact-based systems

● Reducing maintenance frequency in hard-to-access offshore locations

● Improving signal transmission stability in corrosive marine environments

Operational and Maintenance Challenges

Reaching offshore turbines is a significant challenge because of remote monitoring. A mechanical system has fast wear and tear, making maintenance costly and complex. FORJ or Capactive Coupling contactless transmission module require less maintenance and have a longer lifespan, making them a better alternative.

Harsh Environmental Conditions

Saltwater, humidity, and storms deteriorate the metallic parts of wind turbine pitch slip rings. On the other hand, FORJ or Capactive Coupling contactless transmission module  is sealed and non-electrical. So it survives better in harsh conditions.

Hybrid Slip Ring Designs in Wind Turbine Pitch Systems

Many wind turbine pitch slip ring models employ hybrid slip ring designs to optimize functionality, cost, and reliability. A typical configuration integrates:

● Power rings provide the AC or DC power transmission.

● Fiber optic rotary joints (FORJ) or Capactive Coupling contactless transmission module provides smooth, real-time communication with decreased interruptions and minimal maintenance.

● Fluid rotary unions are optional integrations that are ideal for hydraulic pitch control system.

Conclusion

Wind Turbines are evolving into more complex and futuristic technology. Since traditional slip rings lack advanced features, FORJ or Capactive Coupling contactless transmission module can be the new and ultimate solution. They excel at everything from real-time monitoring to SCADA integration and blade health diagnostics. However, you should consider the proper analysis of such tools and bring quality for durability and longevity.
