Slip Rings in Precision Automated Robotic Arms

The world today is rapidly becoming automated, and in this context, precision robotic arms have found applications in a wide range of industries, including both manufacturing and healthcare. These intelligent machines execute complex tasks far more accurately than human beings, and this increases productivity and minimizes human error. The main ingredient of their smooth functioning is the robotic arm slip ring.

Here, we will discuss the most critical aspect of slip rings in precision automated robotic arms, including their functions, characteristics, applications, technologies, and advantages, while incorporating key terms such as slip ring for automation, rotary joint for robotic arm, precision robot connector, signal and power transmission in robots, industrial automation slip ring, and rotating joint electrical connector.

Why Robotic Arms Need Slip Rings

Robotic arms have been developed to perform activities that normally involve either constant or multi-degree rotation like welding, painting or delicate robotic surgery. The conventional techniques of wiring in which the cables are attached to moving components directly, result in an entangled web, being twisted or even unplugged thus resulting in loss of operation or breakage of equipment.

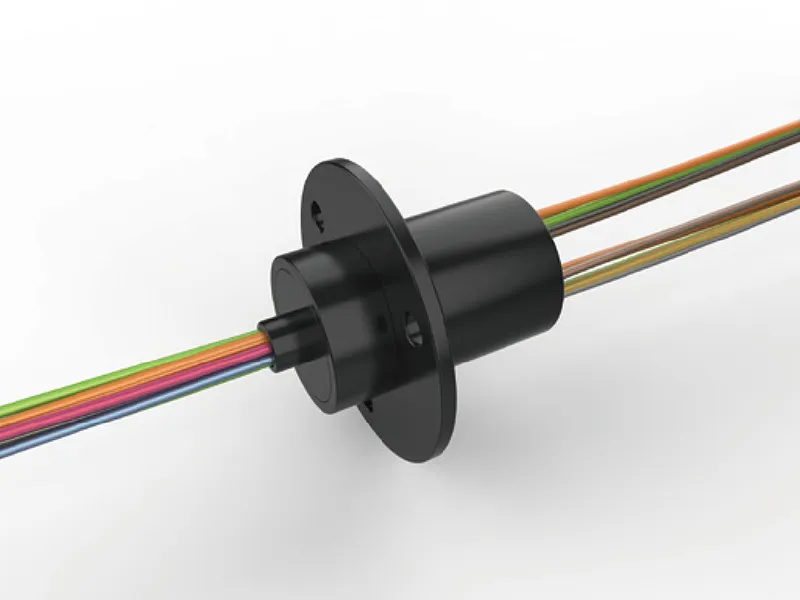

A robotic arm slip ring, or robotic arm rotary joint or a rotating joint electrical connector, is a solution to this difficulty. It is an electromechanical device allowing transmission of power and electrical signals to the rotational elements of the arm, through the base which is not moving. This avoids interruptions and enables robotic arms to rotate the full 360 degrees in avoidance of interruptions caused by cables; hence, making it indispensable in precision automation.

Core Functions of Slip Rings in Robotic Arms

Slip rings have two major purposes in robotic arms, and they guarantee their residence in carrying out complex tasks with accuracy:

● Power Transmission: Slip rings provide actuation power and are used to power actuators and motors on the robotic arms rotating sections. It is critical to ensure continuous operation in tasks such as assembly or handling of the material.

● Signal Transmission: These allow signals and information transfer between the fixed control system and the rotating sensors, cameras or end-effectors of the arm. This aids in instant feedback and accurate control which is key in high accuracy tasks.

The slip rings allow smooth transfer of signal and power in robots, acting as a precision robot connector. This makes the arm of the robot rotate smoothly and accurately, even in the case of continuous rotation.

Key Features for Precision Automation

Slip rings designed to meet the requirements of high-precision automated robot arms have particular properties because of the industry specialization and industrial conditions:

● High Reliability: Slip rings are expected to reliably meet their electrical specifications without fail to avoid costly downtime or failures where safety or mission-critical instrumentation is involved, such as surgical robots.

● Strength: They must be able to withstand/resist high-velocity rotation and external dynamics such as dust or moisture and long term use without losing integrity.

● Low Maintenance: Contemporary slip rings, especially brushless types, do not need as much maintenance, saving operating expenses and bringing down downtimes.

● Multi-Circuit Capability: Sophisticated robot arms may carry several different signals, through an arm, simultaneously as power, data, possibly optical, and others, and such arms will need slip rings that have flexibility with respect to circuit arrangements.

● Space saving compact design: Miniaturized slip rings are a necessity in applications where space is limited, e.g., collaborative robots or medical devices.

These qualities make slip rings a key component of industrial automation slip rings, which means they fulfill the strict standards of precision automation.

Common Robotic Applications Using Slip Rings

Slip rings have formed part of numerous robotic applications whereby each application has its own set of performances requirements:

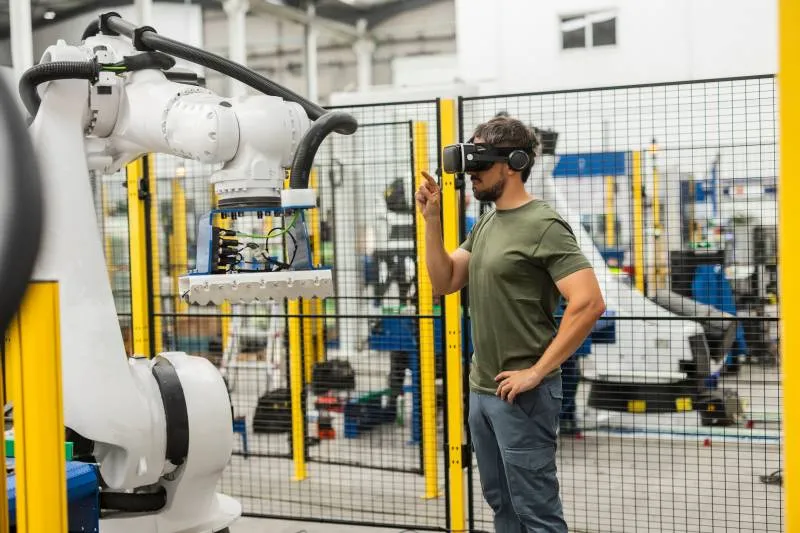

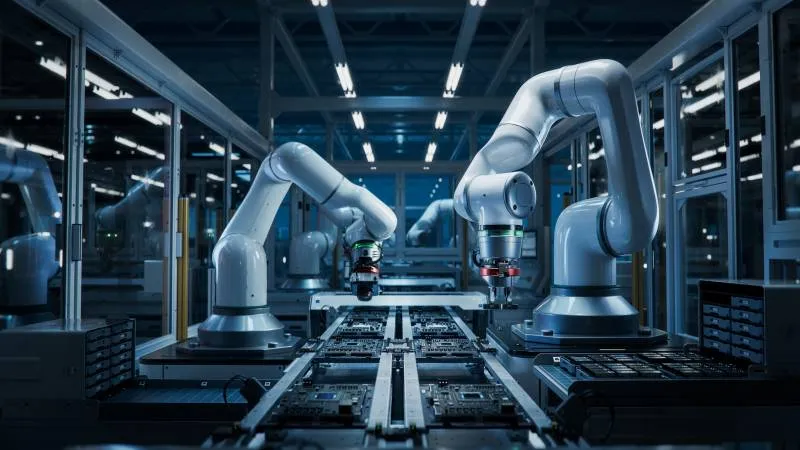

Industrial Automation

Automation by robotic arms enables the welding, painting, assembly, and packaging to be done in manufacturing. These weapons are run on automated assembly lines where constant circulation leads to increased productivity and decreased human fallibility. Slip rings are used, e.g., in automotive assembly, where they allow robot arms to perform myriads of similar actions with a high degree of precision Grand Technology.

Medical Robotics

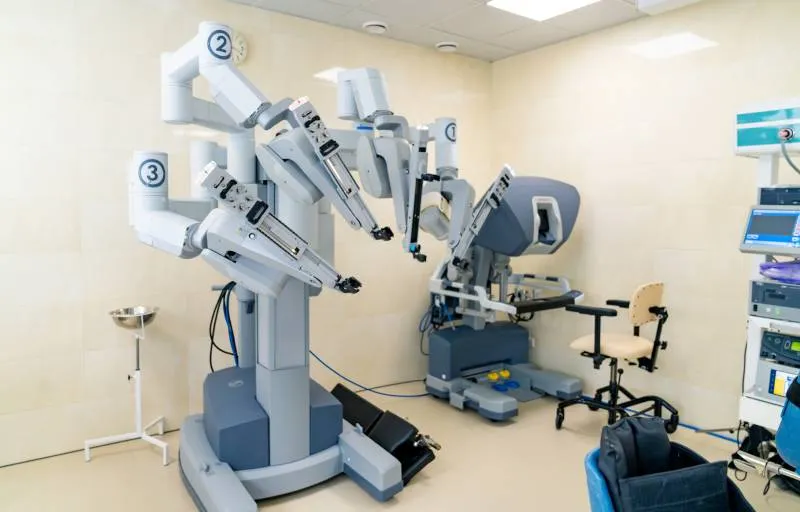

Medical robots such as the surgical ones would depend on slip rings in order to make accurate movements in minimally invasive procedures. Rotary joint robotic arm offers continuous flow of power and signals thus enabling surgeons to precisely manipulate sensitive procedures including suturing or the insertion of a catheter with the accuracy never before thought possible Grand Technology.

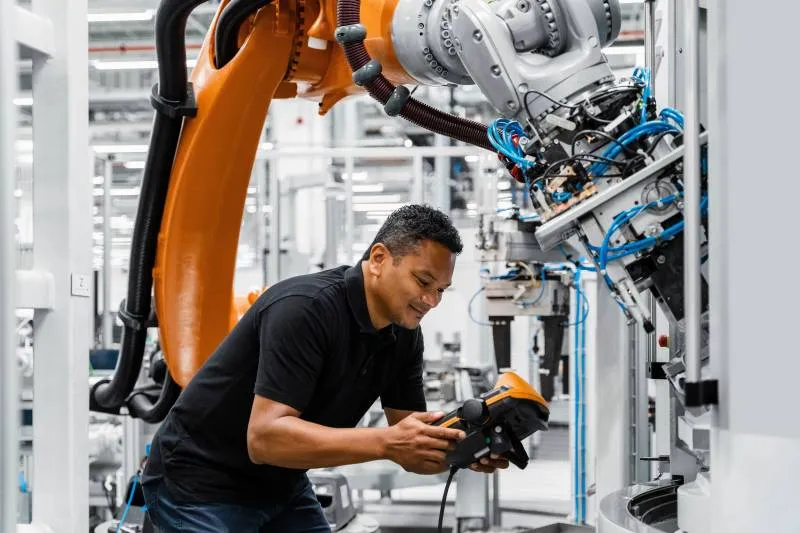

Inspection and Maintenance

For the application of drainrobotics. The slip rings is necessary,it enable to get continually rotated in little spaces so that the inspection becomes complete and effective.

Collaborative Robots (Cobots)

As lightweight robots with the characteristic of being willing to work together, collaborative robots should be equipped with slip rings that are compact and easy to carry. Miniature capsule slip rings are commonly relied on to accomplish these requirements.

These applications emphasize the flexibility of slip rings in ensuring that robotic arms are well adapted to various operations in a precise and reliable environment.

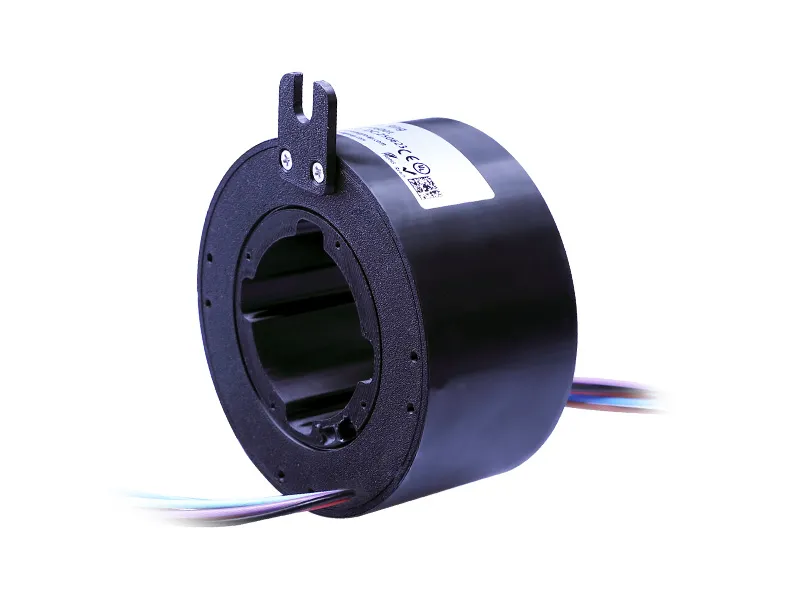

Types of Slip Rings Used in Robotic Arms

The diversity of robotic applications has led to the development of various slip ring types, each designed to meet specific needs:

Each type serves as a precision robot connector, tailored to the specific requirements of the robotic arm, such as space, signal types, or environmental conditions.

Benefits at a Glance

The integration of slip rings into robotic arms offers numerous advantages that enhance performance and operational efficiency:

● Enhanced Efficiency: By enabling continuous rotation, slip rings eliminate the need for stopping to unwind cables, increasing throughput in tasks like assembly or packaging.

● Improved Precision: Stable signal and power transmission in robots ensures consistent accuracy, critical for applications like surgical robotics or precision manufacturing.

● Reduced Downtime: Reliable and low-maintenance slip rings minimize repairs and replacements, keeping production lines operational.

● Design Flexibility: Slip rings allow engineers to design robotic arms with greater freedom, as cable management is no longer a constraint.

● Safety: By preventing cable snags, slip rings reduce the risk of workplace accidents, particularly in collaborative environments.

● Cost Savings: Durable slip rings with long lifespans reduce replacement costs, making them a cost-effective automation solution.

These benefits underscore the critical role of slip rings in achieving the precision and reliability demanded by modern robotic systems.

Final Thoughts

The robotic arm slip ring is far more than just a simple electrical connector; it's a sophisticated, precision robot connector that sits at the heart of motion and functionality in automated systems. As robotic arms become faster, more precise, and deployed in ever more demanding applications, the requirements placed on slip rings intensify.

Choosing the right slip ring for automation – one engineered for low noise, high signal integrity, compactness, reliability, and seamless signal and power transmission in robots – is paramount. It ensures the smooth, uninterrupted, and precise operation that defines modern industrial automation, making the slip ring an indispensable, though often unseen, hero, enabling the future of robotics. When precision and reliability matter, the quality of the rotating joint electrical connector is an investment that pays dividends in performance and productivity.
