Understanding The Basic Structure Of A Cap Slip Ring

Particular mechanisms in the electromechanical system require power and electrical signals to be transmitted without obstruction between stationary and rotating parts, ensuring smooth performance. The unsung heroes that make this possible are slip rings. Among all the various types of slip rings, the cap slip ring, also known as a capsule slip ring, is unique in offering both a compact design and multi-purpose capability. This paper is an in-depth investigation into the fundamentals of the cap slip ring structure, what it is comprised of, how it functions, and how it has been utilized.

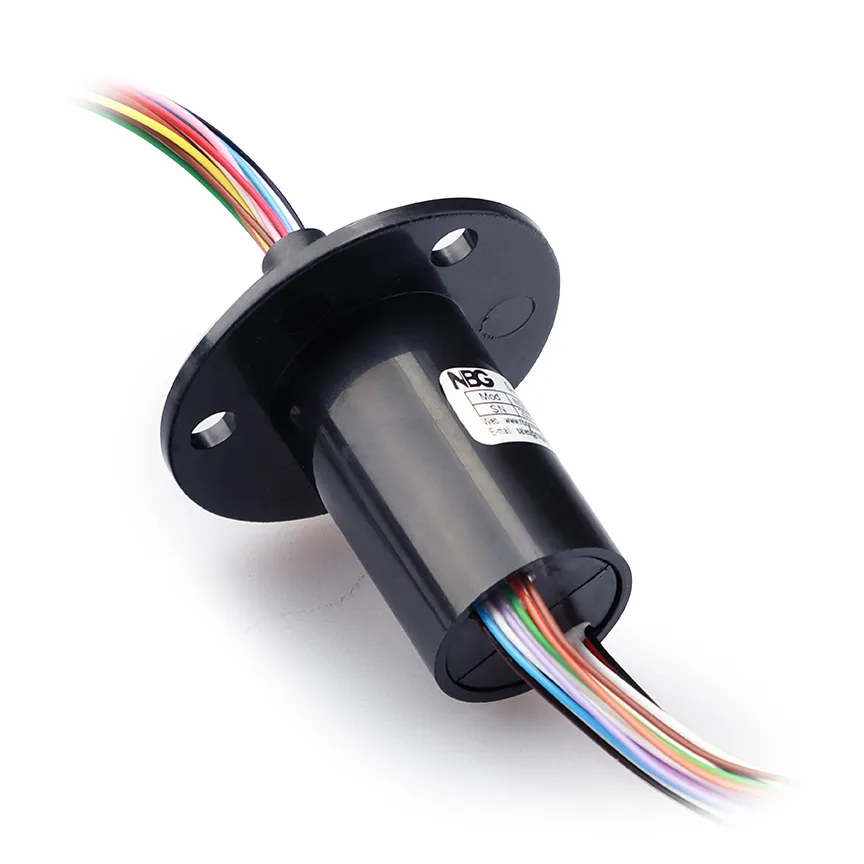

What Is A Cap Slip Ring?

A cap slip ring is an electromechanical device that transfers power and electrical signals between a fixed and a rotating structure in a space-saving design. Compared to slip rings made using the through hole method, whose central hole is hollow and mounted to a shaft, slip rings in the cap method have a through-hole, solid design and thus they are more suited to space limited applications. These are usually found in an outside diameter of 5mm to 55mm even bigger.

Characteristic of cap slip rings is that they employ gold-to-gold contact technology. The brushes and rings are both gold and this provides good electrical conductivity, low contact resistance, and little electrical noise. Cap slip rings are therefore especially ideal to carry high-frequency signals and control signals that are weak yet demand high precision and reliability according to manufacturers such as MOOG and NBG ( MOOG Slip Ring, NBG Slip Ring).

How Does A Cap Slip Ring Work?

A cap slip ring works on the principle of continuous electrical contact between stationary and rotating devices. When the rotating component, to which the slip ring is fitted, rotates, the brushes slide across the rings providing the surety of continuity of electrical contact. This enables a continuous transmission of power and signals at any angle of rotation, 360 degrees or above.

The contact technology between the gold to gold makes the contact resistance low, and the operational life long. Gold is not likely to corrode, so the contact surfaces can be used over a long duration with little or no maintenance. This is especially essential when the application requires reliability, including medical products or industrial automation systems. The insulation ring-to-ring eliminates crosstalk and the signals follow each circuit separately with signal integrity.

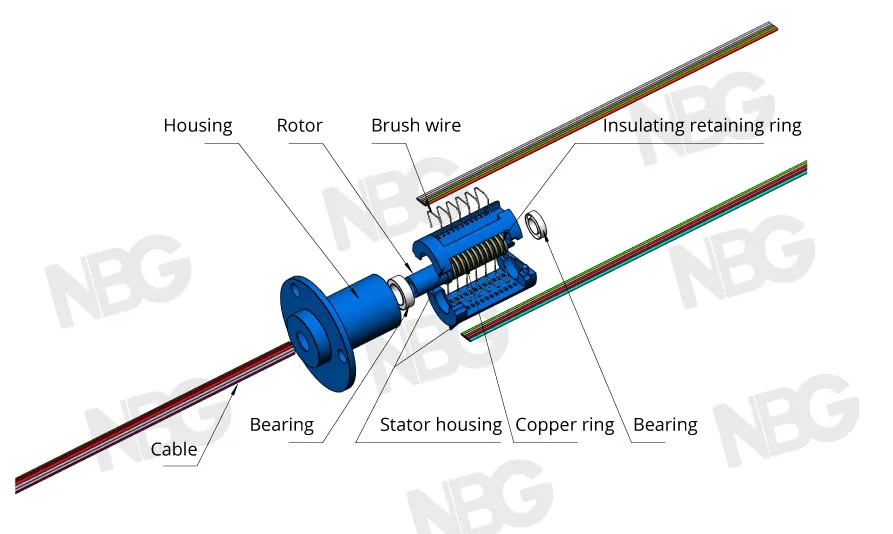

Core Components Of A Cap Slip Ring Structure

Housing and Enclosure

The cap slip ring structure rests on the outer housing. The housing is often made of a high-grade aluminum, stainless steel or special plastics and serves many important functions:

● Environmental protection: The sealed enclosure prevents dust, moisture, chemicals and any other contaminants from coming in contact with internal components

● Mechanical Support: All components are isolated in the solid housing design which keeps everything in line.

● Mounting Interface: Conventional mounting characteristics make integration into different systems easy

Rotor Assembly

The rotor assembly creates the spinning part of the rotating cap slip ring and is made up of many important components:

● Shaft: The central shaft is typically constructed out of stainless steel or engineering plastic that mechanically connects to the rotating equipment. The shaft should be machined accurately to provide smooth operation and runout.

● Conductor Rings: On the rotor, an array of metallic rings with each ring representing an electrical circuit, is added. They are usually in the form of precious metals such as gold or silver, or very conductive metals such as copper with particular plating.

● Insulation System: High grade insulating materials are used between and among conductors rings to eliminate electrical cross-talk and preserve circuit integrity. Advanced ceramics or specialty polymers are frequently employed on modern cap slip rings, due to their excellent insulating qualities.

Stator Assembly

The stationary stator assembly houses the brush system and provides the electrical connection points:

● Electric Brushes: Brushes of cap slip rings are usually silver alloy, or silver alloy plated with gold, or gold alloy. These materials are corrosion resistant, low resistance value, wear-resistant and long life

● Wire Management System: Internal wire routing systems localize and safeguard the vast array of electrical connections to avoid interference and power these connections reliably.

Bearing System

Smooth rotation and long life depend on the bearing system:

● High-quality precision bearings: The rotating assembly is controlled by high-quality bearings or specialized bearing systems. Sealed bearings are used in many cap slip rings to avoid contamination.

● Air bearings: For some special types of cap type slip rings, such as those used in the test system of aero engines, special bearings such as air bearings are used to make the slip ring run at high speeds between 20,000 RPM and 250,000 RPM

Advanced Structural Features

Signal Integrity Components

Modern cap slip rings often incorporate specialized features to maintain signal quality:

● Shielding Systems: Internal electromagnetic shielding prevents signal interference between circuits

● Impedance Matching: Controlled impedance design ensures optimal signal transmission for high-frequency applications

Modular Design Elements

Many contemporary cap slip rings feature modular construction:

● Interchangeable Components: Standardized interfaces allow for easy replacement of worn components

● Scalable Ring Count: Modular designs can accommodate varying numbers of electrical circuits

● Customizable Interfaces: Flexible connection options support diverse application requirements

Advantages Of Cap Slip Rings

Cap slip rings offer several advantages that make them a preferred choice in many applications:

● Compact Size: Their small footprint, with diameters as low as 5.5mm for super miniature models, allows integration into space-constrained designs.

● High Reliability: The gold-to-gold contact technology ensures low resistance, minimal noise, and long operational life, reducing maintenance needs.

● Versatility: Cap slip rings can handle a wide range of signals, including Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI, and HDMI, making them suitable for diverse applications.

● Durability: Designed to withstand harsh environments, including high temperatures, vibration, and exposure to dust and moisture, cap slip rings are ideal for outdoor and industrial settings.

Applications and Industry Usage

Cap slip rings find extensive use across numerous industries:

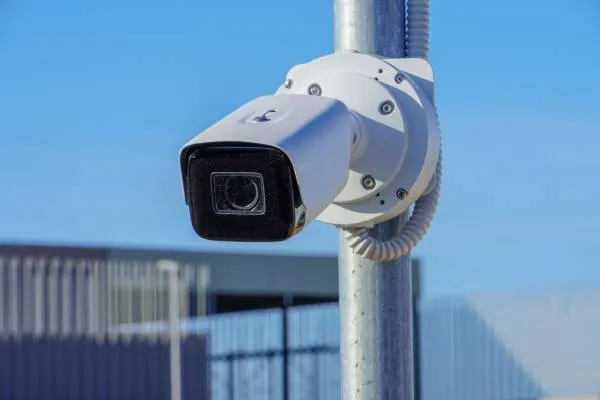

● CCTV camera：supports 360-degree rotation of the camera, transmitting video data and electricity

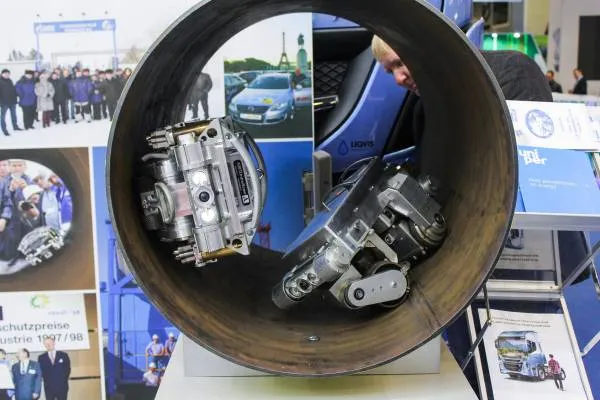

● Piping robot: Supports camera rotation, video data transmission and power

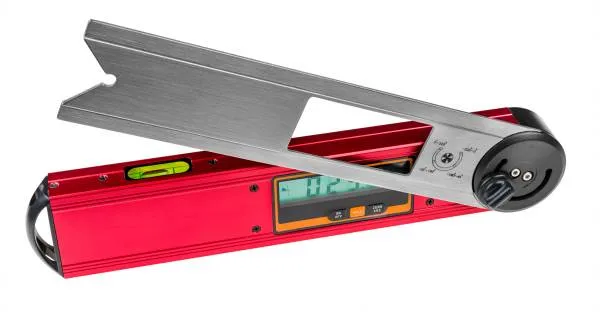

● Goniometer: Supports 360-degree rotation of laser head, transmission of signal and electric energy.

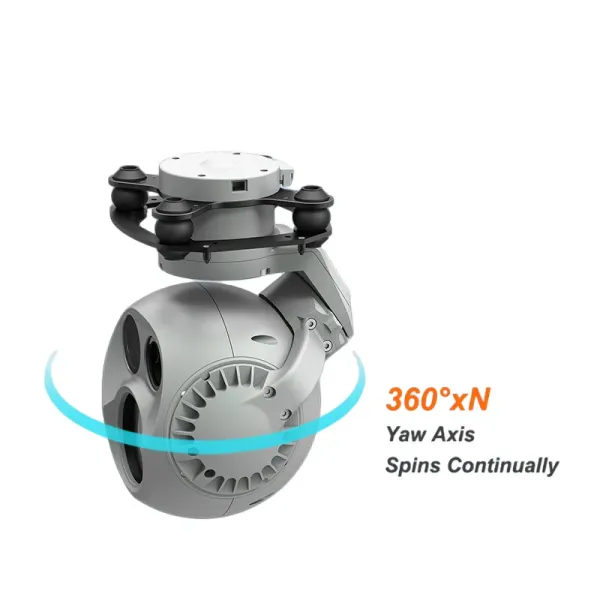

● Photoelectric pod: supports 360-degree rotation, data transmission, control signals and power

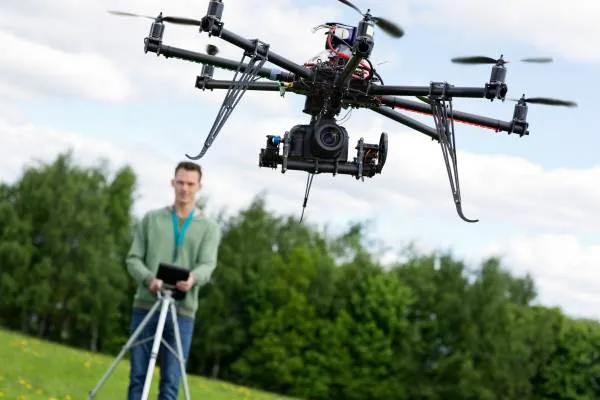

● Drone: Used for drone pan-tilt, supporting 360-degree rotation of drone camera, transmitting high-definition video data and power

Conclusion

Cap slip rings are vital components in modern electromechanical systems, enabling the seamless transmission of power and signals between stationary and rotating parts. Their compact design, advanced gold-to-gold contact technology, and robust construction make them ideal for applications ranging from robotics to aerospace. By understanding the basic structure of brushes, rings, insulation, and housing engineers and designers can better appreciate the role of cap slip rings in powering innovative technologies. As industries continue to demand smaller, more reliable solutions, cap slip rings will remain at the forefront of electromechanical engineering.
