NSC012024001

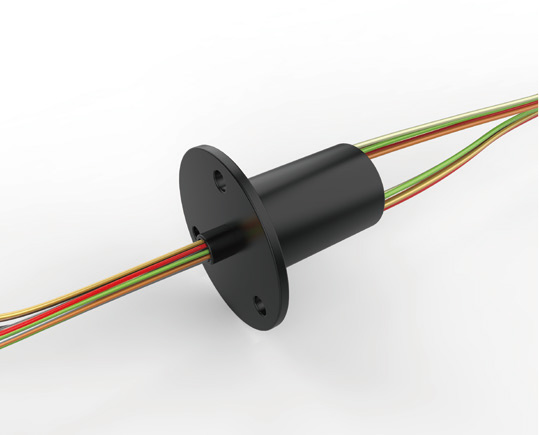

A standard compact capsule slip ring with gold-gold contact points, it uses ultra-thick gold plating process to ensure the stability and long lifetime. It is mainly used in civilian and commercial applications.

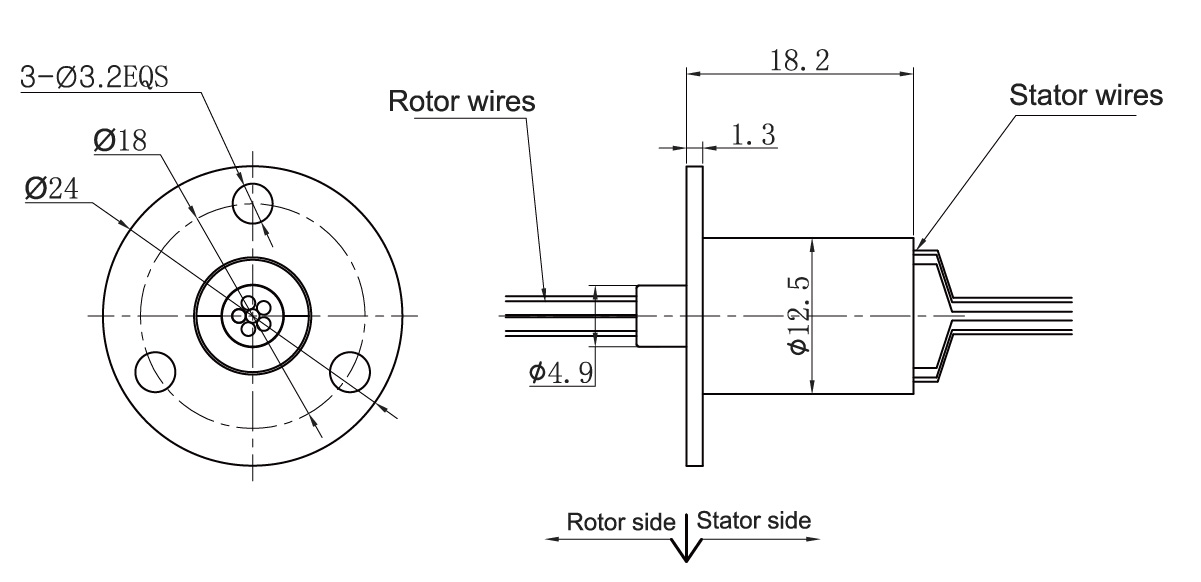

Standard series capsule slip rings with the length 18.2mm, OD 12-13mm.

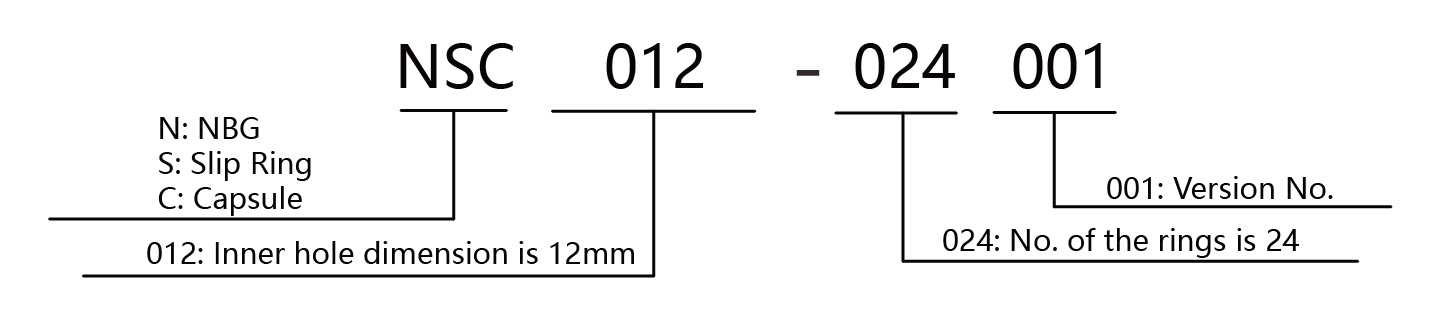

Part# Explanation
Part# List
Specifications
| Mechanical Data | Electrical Data | |||
|---|---|---|---|---|
| Parameter | Value | Parameter | Value | |
| Power | Signal | |||
| Lifetime | 5 million revs * | Rated Voltage | 0~240VAC/VDC | 0~240VAC/VDC |
| Rotating speed | 0~400 RPM | Insulation Resistance | ≥1000MΩ/500VDC | |
| Working Temp. | -40℃~80℃ | Lead Wire | AWG28#Teflon (Customizable) | |
| Operating Humidity | 0~85% RH | Lead Length | Standard length 300mm(Adjustable) | |
| Contact Material | Gold-Gold | Insulating Strength | 500VAC@50Hz,60s | |
| Housing Material | Engineering plastic | Electric Noise | <0.01Ω | |
| Torque | 0.05N.m;+0.02N.m/6 rings | |||
| Protection Grade | IP51~IP68 | |||
Lead Wires Color Code
| Ring | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | RED | WHT | BLU | BLK | YEL | GRY |
Contact the customer service if you have special requirements
