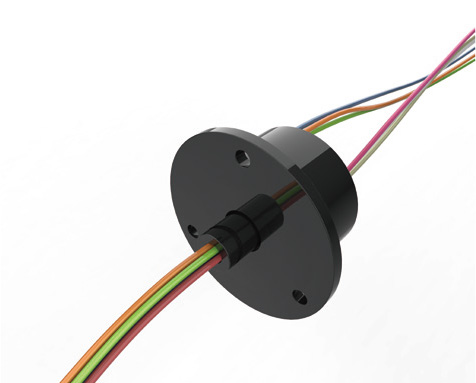

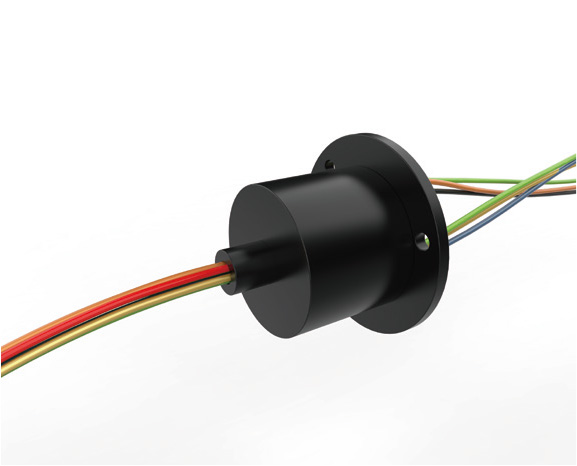

NSC020006001

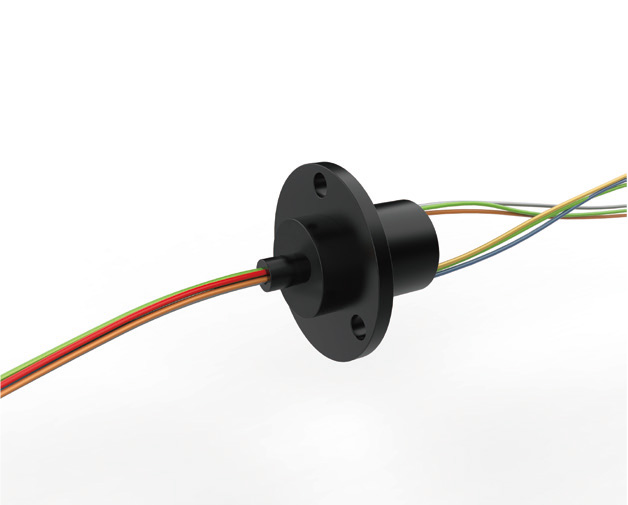

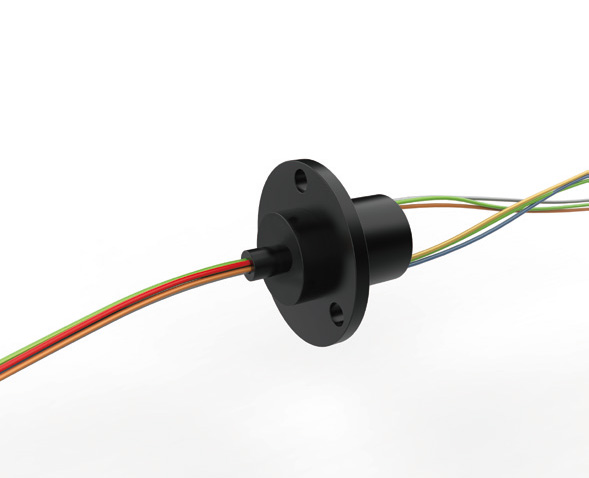

A standard compact capsule slip ring with gold-gold contact points, it uses ultra-thick gold plating process to ensure the stability and long lifetime. It is mainly used in civilian and commercial applications.

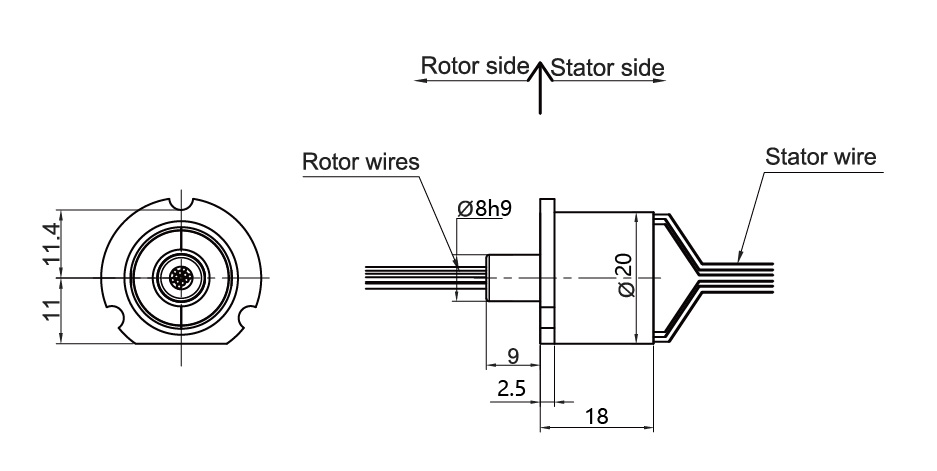

Standard series capsule slip rings with the length 27mm, OD 20-23mm.
Part# Explanation
Standard Model

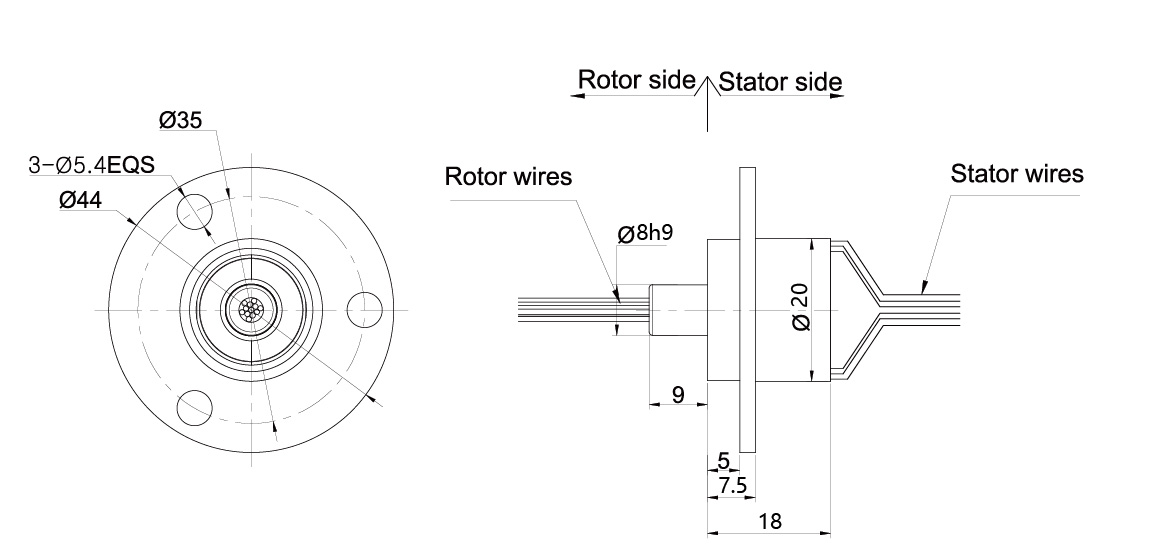

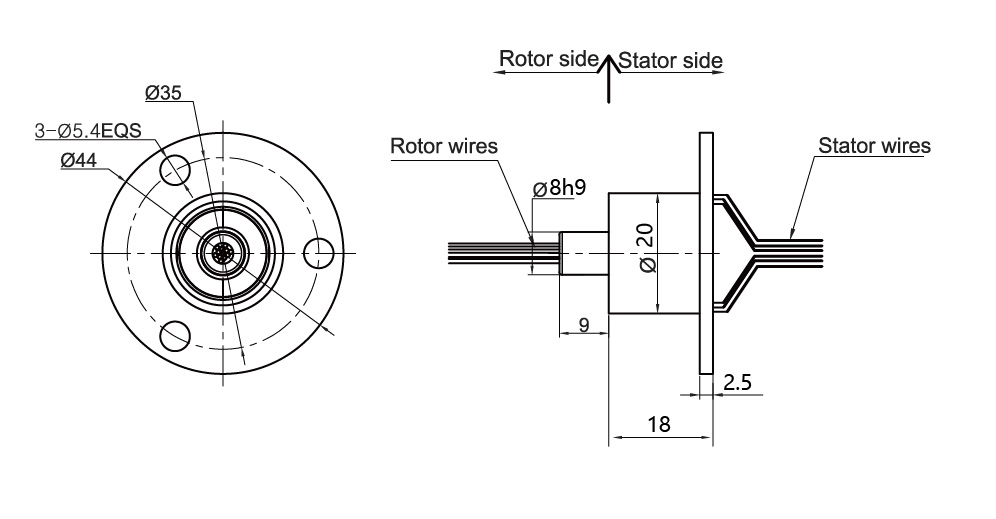

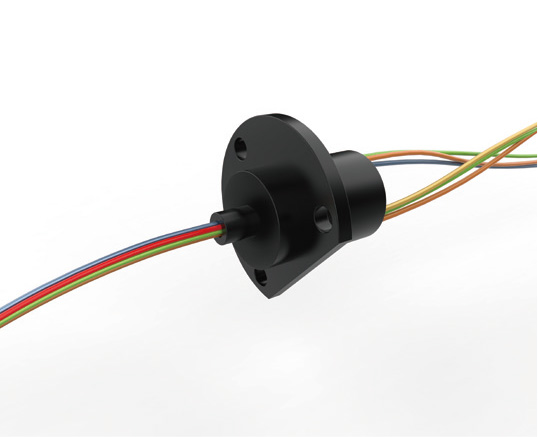

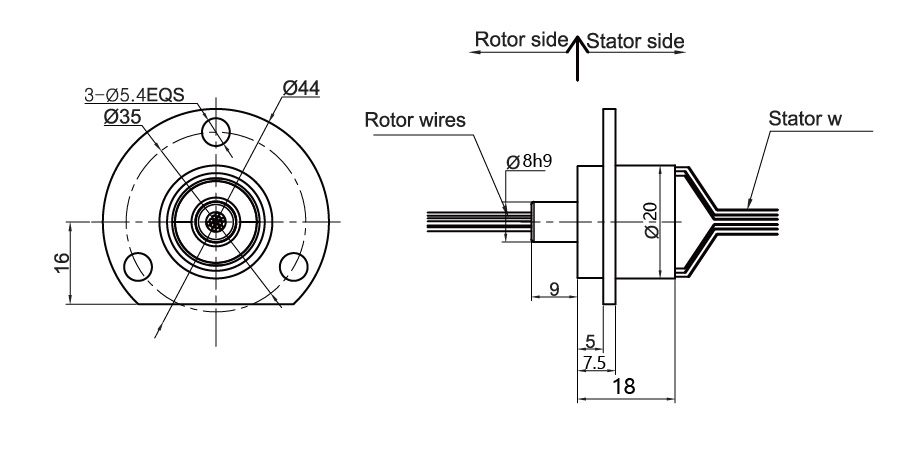

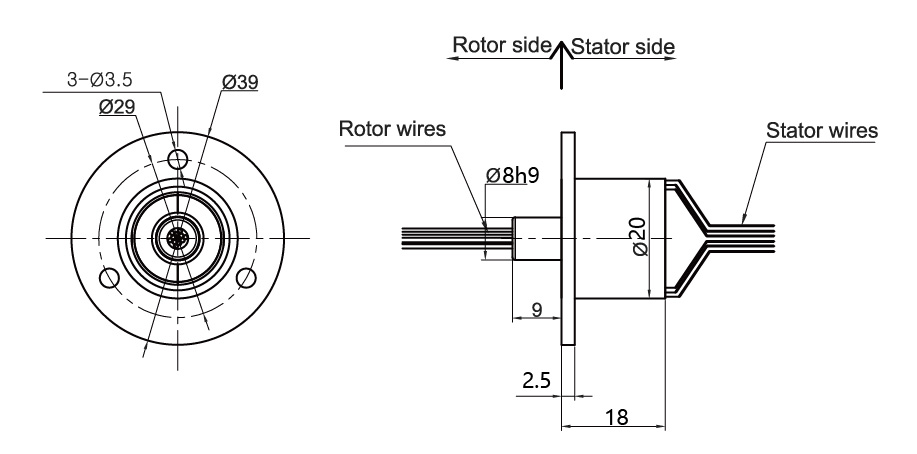

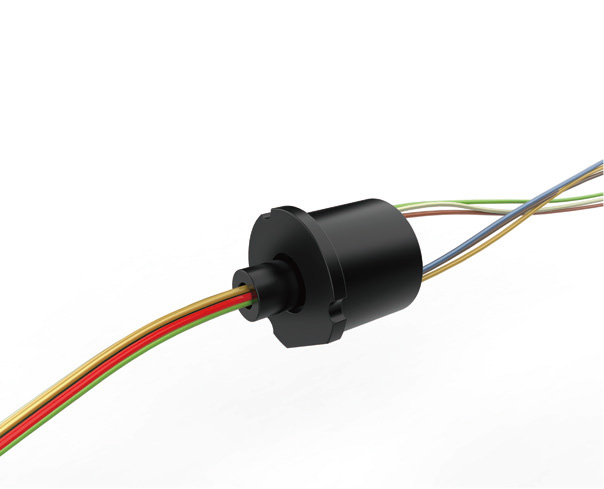

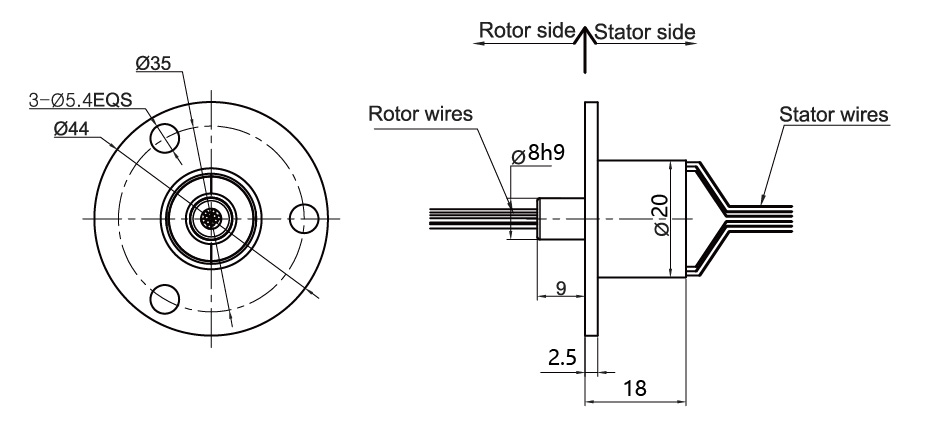

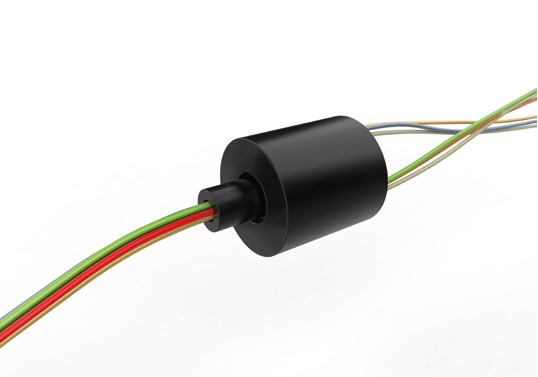

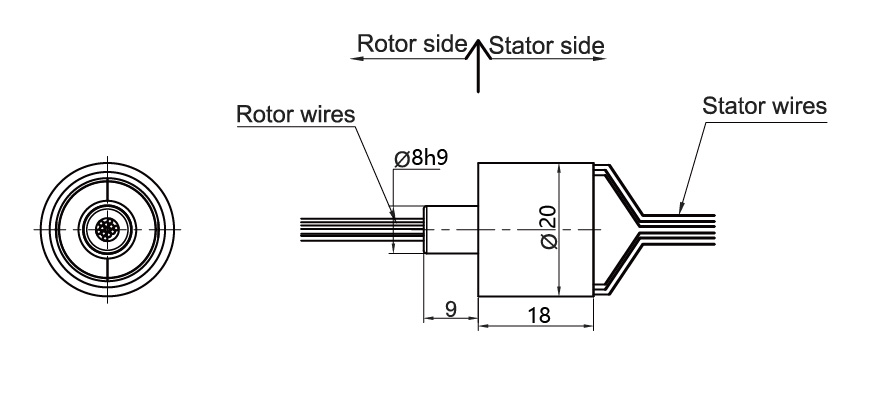

Optional Flange Type
Part# List
| Model | Rings No. (2A)* | Rings No. (4A)* | Rings No. (8A)* | Rings No. (15A)* | Total |
|---|---|---|---|---|---|
| NSC020006001 | 6 | 0 | 0 | 0 | 6 |
N rings 2A in parallel can be used as 1 channel N*2A. For example: 2 rings 2A in parallel can be used as 1 channel 4A Contact the customer service if you have special requirements
Specifications
| Mechanical Data | Electrical Data | |||
|---|---|---|---|---|
| Parameter | Value | Parameter | Value | |
| Power | Signal | |||
| Lifetime | 5 million revs * | Rated Voltage | 0~240VAC/VDC | 0~240VAC/VDC |
| Rotating speed | 0~400 RPM | Insulation Resistance | ≥1000MΩ/500VDC | |
| Working Temp. | -40℃~80℃ | Lead Wire | AWG28#Teflon (Customizable) | |
| Operating Humidity | 0~85% RH | Lead Length | Standard length 300mm(Adjustable) | |
| Contact Material | Gold-Gold | Insulating Strength | 500VAC@50Hz,60s | |
| Housing Material | Engineering plastic | Electric Noise | <0.01Ω | |
| Torque | 0.05N.m;+0.02N.m/6 rings | |||
| Protection Grade | IP51~IP68 | |||
Lead Wires Color Code
| Ring | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | RED | WHT | BLU | BLK | YEL | GRY |
Options
- Optional flange mounting
- Optional connector and heat-shrink tube
- Optional lead length
- Environment and temperature
- Military grade
- IP51~IP68
Contact the customer service if you have special requirements
