NSC025056001
A standard compact capsule slip ring with gold-gold contact points, it uses ultra-thick gold plating process to ensure the stability and long lifetime. It is mainly used in civilian and commercial applications.

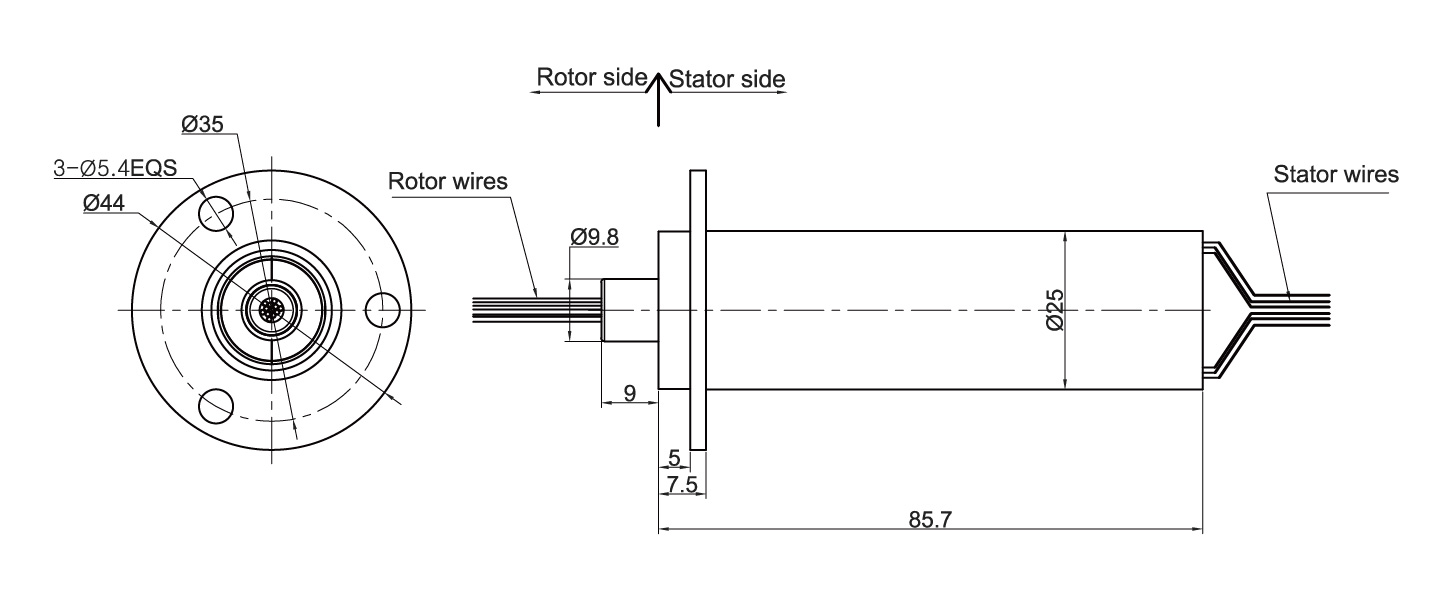

Standard series capsule slip rings with the length 85.7mm,
Part# Explanation
Part# List
| Model | Rings No.(2A)* | Rings No.(4A)* | Rings No.(8A)* | Rings No.(15A)* | Total |
|---|---|---|---|---|---|
| NSC025056001 | 56 | 0 | 0 | 0 | 56 |
N rings 2A in parallel can be used as 1 channel N*2A. For example: 2 rings 2A in parallel can be used as 1 channel 4A Contact the customer service if you have special requirements.
Specifications
| Mechanical Data | Electrical Data | |||
|---|---|---|---|---|
| Parameter | Value | Parameter | Value | |
| Power | Signal | |||
| Lifetime | 5 million revs * | Rated Voltage | 0~240VAC/VDC | 0~240VAC/VDC |
| Rotating speed | 0~400 RPM | Insulation Resistance | ≥1000MΩ/500VDC | |
| Working Temp. | -40℃~80℃ | Lead Wire | AWG28#Teflon (Customizable) | |
| Operating Humidity | 0~85% RH | Lead Length | Standard length 300mm(Adjustable) | |
| Contact Material | Gold-Gold | Insulating Strength | 500VAC@50Hz,60s | |
| Housing Material | Engineering plastic | Electric Noise | <0.01Ω | |
| Torque | 0.05N.m;+0.02N.m/6 rings | |||
| Protection Grade | IP51~IP68 | |||
Lead Wires Color Code
| Ring | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | RED | WHT | BLU | BLK | YEL | GRY |
| Ring | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | PUR | GRN | PNK | ORG | BRN | SLV |
| Ring | 13 | 14 | 15 | 16 | 17 | 18 |
| Color | RED/WHT | RED/BLK | BLU/WHT | BLK/WHT | YEL/WHT | GRY/WHT |
| Ring | 19 | 20 | 21 | 22 | 23 | 24 |
| Color | PUR/WHT | GRN/WHT | PNK/WHT | ORG/WHT | BRN/WHT | BLU/BLK |
Contact the customer service if you have special requirements
