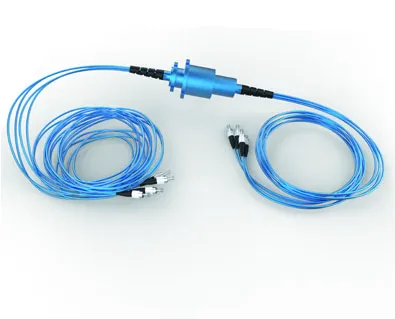

NSO400 4-channel fiber optic slip ring
NSO400 fiber optic slip ring supports 4 channels fiber optic(SM/MM). It can perfectly transmit data on 360 degree rotating, it is also specially suitable for occasion where it needs to transmit large volume data/signal from fixed position to rotating position under unlimited, continuous of discontinuous rotating, which can improve mechanical property, simplify system operation and avoid rotating of turning joints destroying the fiber optic.
Features
- Low insertion loss, high rotation speed
- Non-contact, zero friction, long lifetime, 1 channel can achieve 100 million revs
- Small volume, low weight, high sealing degree
- Fiber optic transmitting signal, no electromagnetic interference, long-distance transmission
Part# Explanation
Table 1
| Fiber type code | Fiber connector code | Wavelength code |
|---|---|---|
01：9/125um，single-mode 02：50/125um，multi-mode 03：62.5/125um，multi-mode | FC：FC connector ST：ST connector SC：SC connector LC：LC connector The connector face is PC by default, if APC is needed, APC should be added behind, such as FC/APC | 01：1550 (single-mode) 02：850 (multi-mode) |
Specifications
| Single-mode（SM） | Multi-mode（MM） | |
|---|---|---|
| Wave-width(nm) | ±50 | |
| Max. insertion loss，23℃(dB) | 4 | 3.5 |
| Insertion loss ripple(dB) | 2 | 1 |
| Return loss(dB) | ≥55( APC) | ≥40(PC) |
| Max. power (W) | 0.5 | |
| Weight (g) | 50 | |
| Max. rotating speed (rpm) | 400 | |
| Lifetime | >200 million revs | |
| Working temperature(℃) | -45~85 | |
| Storage temperature(℃) | -50~85 | |
