NST003008001

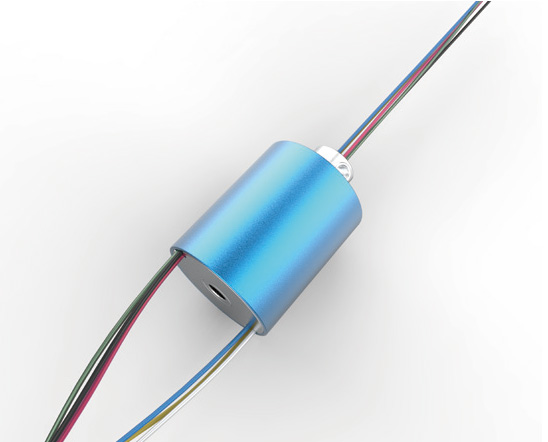

Standard series integrated precious slip ring, the OD is 17mm, hole size is 3-4mm.

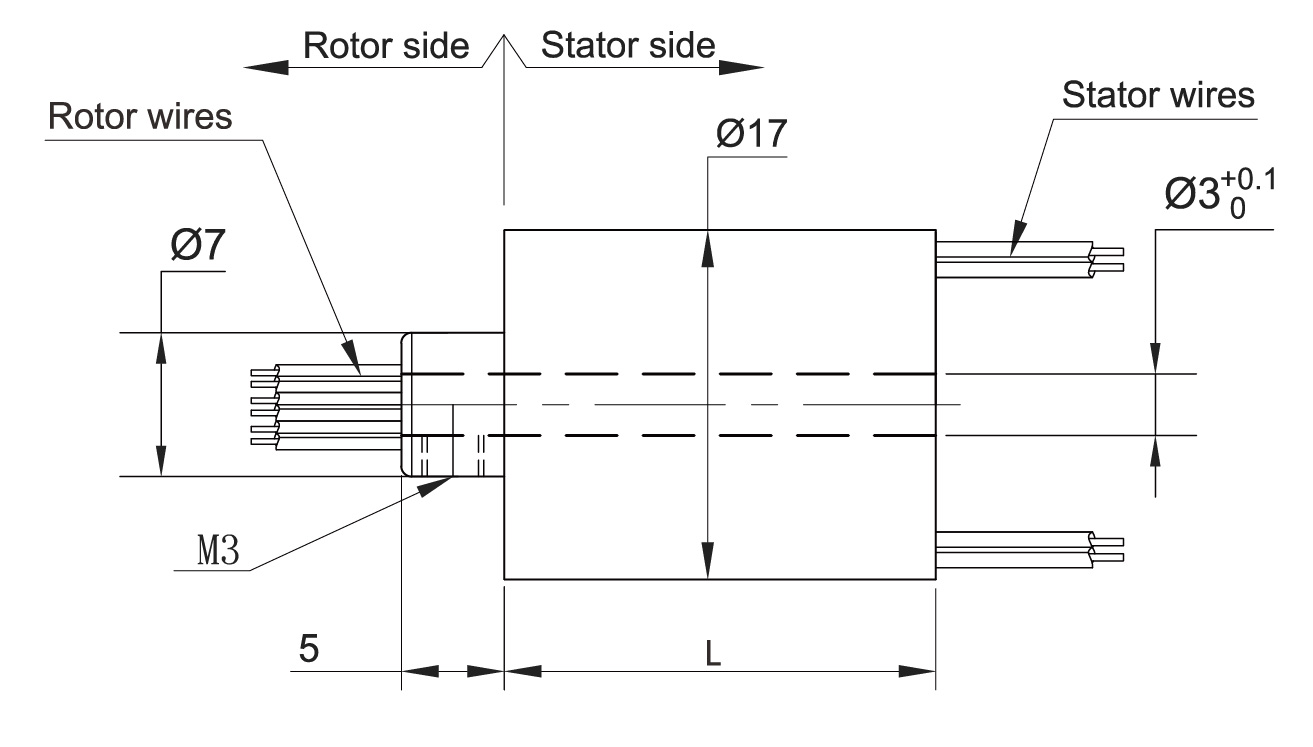

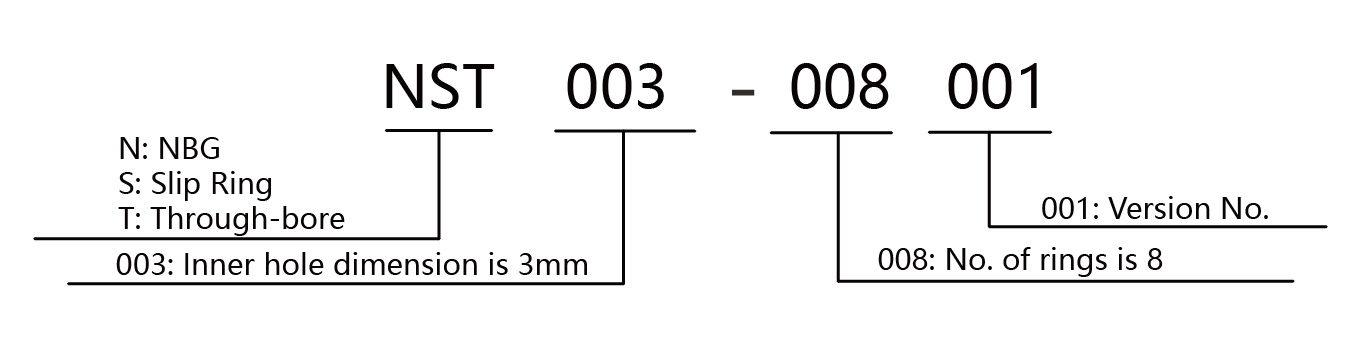

Part# Explanation

Part# List

Model	Rings No.(2A)*	L(mm)
NST003002001	2	13.3
NST003003001	3	13.3
NST003004001	4	13.3
NST003006001	6	21
NST003008001	8	21

N rings 2A in parallel can be used as 1 channel N*2A. For example: 2 rings 2A in parallel can be used as 1 channel 4A Contact the customer service if you have special requirements.

Specifications

Mechanical Data		Electrical Data
Parameter	Value	Parameter	Value
Parameter	Value	Parameter	Power	Signal
Lifetime	50 million revs* (Higher lifespan customizable)	Rated Voltage	0~690VAC/VDC	0~440VAC/VDC
Rotating speed	0~400 RPM	Insulation Resistance	1000M /500VDC	1000M /500VDC
Working Temp.	-40 ~80	Lead Wire	AWG16#Teflon (Customizable)	AWG22#Teflon (Customizable)
Operating Humidity	0~85% RH	Lead Length	Standard Length 1000mm(adjustable)
Contact Material	silver-silver	Insulating Strength	1000VAC@50Hz 60s
Housing Material	Engineering Plastic	Dynamic Resistance Variation	<0.01Ω
Torque	0.1N.m +0.03N.m/6 rings
Protection Grade	IP51~IP68

Lead Wires Color Code

Ring	1	2	3	4	5	6	7	8	9	10	11	12
Color	BL TR	BK TR	LGN	PR TR	RD TR	BN TR	LBN	GY	PR	YL TR	PK	GN TR
Ring	13	14	15	16	17	18	19	20	21	22	23	24
Color	BL	GN	YL	WH	BK	RD	LBL	YL/GN	GY/BN	TR	BN	OR

Contact the customer service if you have special requirements
