NST025144007

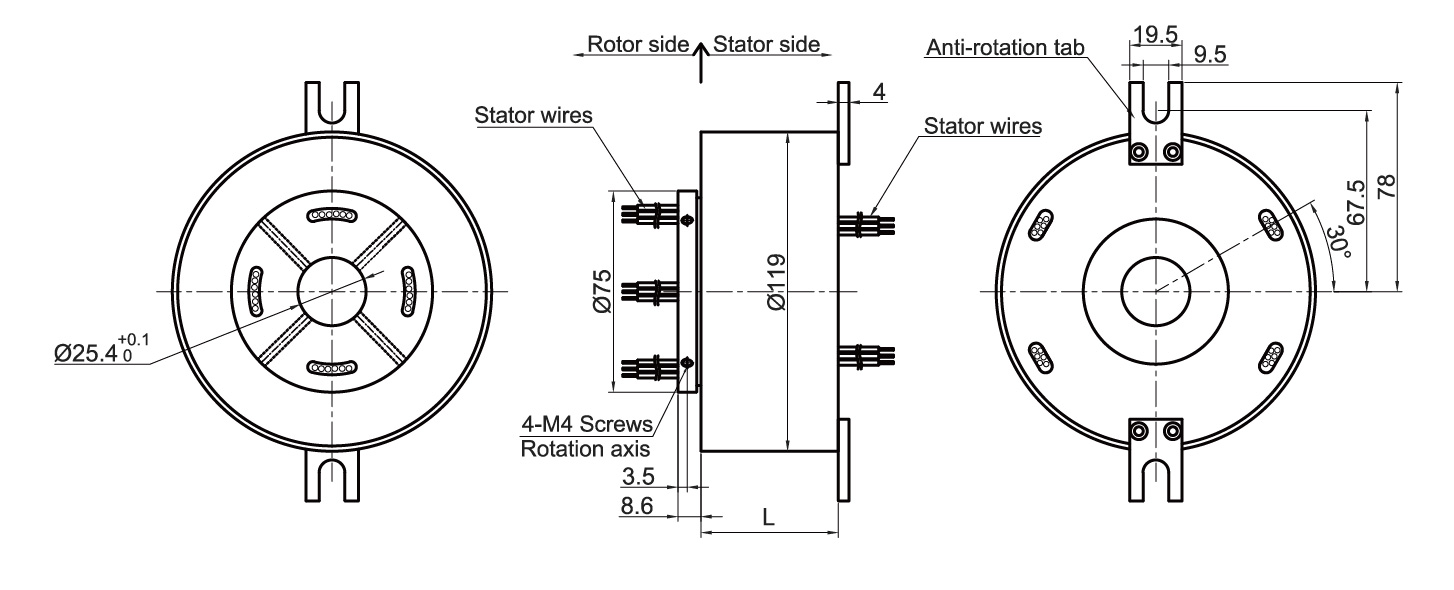

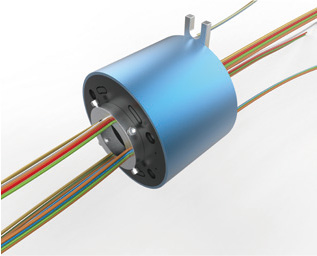

Standard series integrated precious slip ring, the OD is 119mm, bore size is 25-26mm.

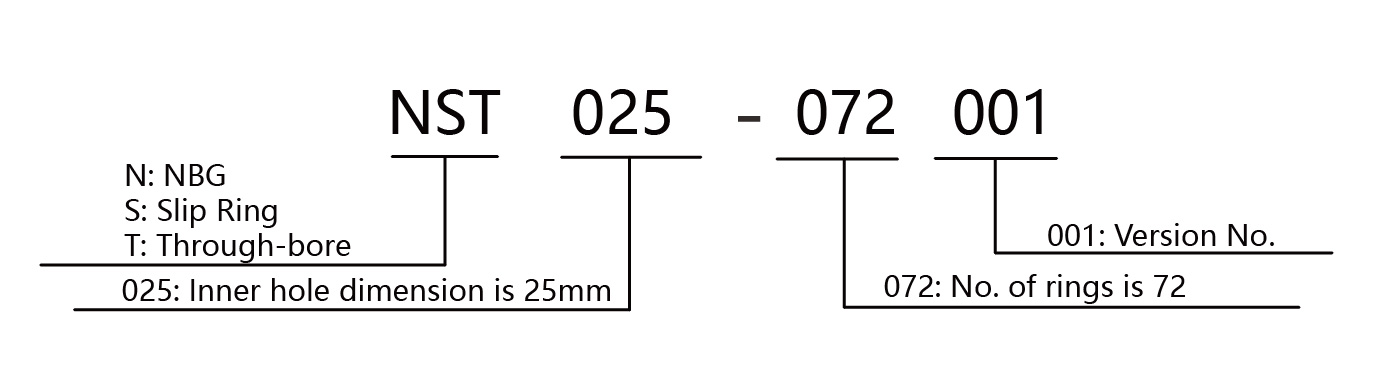

Part# Explanation
Part# List
| Model | Rings No. (10A)* | Rings No. (5A)* | L(mm) |
|---|---|---|---|
| NST025002005 | 0 | 2 | 36 |
| NST025002006 | 2 | 0 | 36 |
| NST025003004 | 0 | 3 | 39.8 |
| NST025003005 | 3 | 0 | 39.8 |
| NST025006009 | 0 | 6 | 51.2 |
| NST025006010 | 2 | 4 | 51.2 |
| NST025006011 | 4 | 2 | 51.2 |
| NST025006012 | 6 | 0 | 51.2 |
| NST025012015 | 0 | 12 | 74 |
| NST025012016 | 2 | 10 | 74 |
| NST025012017 | 3 | 9 | 74 |
| NST025012018 | 6 | 6 | 74 |
| NST025012019 | 8 | 4 | 74 |
| NST025012020 | 10 | 2 | 74 |
| NST025012021 | 12 | 0 | 74 |
| NST025018019 | 0 | 18 | 96.8 |
| NST025018020 | 2 | 16 | 96.8 |
| NST025018021 | 4 | 14 | 96.8 |
| NST025018022 | 6 | 12 | 96.8 |
| NST025018023 | 8 | 10 | 96.8 |
| NST025018024 | 10 | 8 | 96.8 |
| NST025018025 | 12 | 6 | 96.8 |
| NST025018026 | 14 | 4 | 96.8 |
| NST025018027 | 16 | 2 | 96.8 |
| NST025024013 | 0 | 24 | 119.6 |
| NST025024014 | 4 | 20 | 119.6 |
| NST025024015 | 6 | 18 | 119.6 |
| NST025024016 | 12 | 12 | 119.6 |
| NST025024017 | 18 | 6 | 119.6 |
| NST025024018 | 24 | 0 | 119.6 |
| NST025030013 | 0 | 30 | 142.4 |
| NST025030014 | 6 | 24 | 142.4 |
| NST025030015 | 12 | 18 | 142.4 |
| NST025030016 | 18 | 12 | 142.4 |
| NST025030017 | 24 | 6 | 142.4 |
| NST025030018 | 30 | 0 | 142.4 |
| NST025036009 | 0 | 36 | 169.2 |
| NST025036010 | 6 | 30 | 169.2 |
| NST025036011 | 12 | 24 | 169.2 |
| NST025036012 | 36 | 0 | 169.2 |
| NST025042007 | 0 | 42 | 192 |
| NST025042008 | 6 | 36 | 192 |
| NST025042009 | 12 | 30 | 192 |
| NST025048013 | 0 | 48 | 214.8 |
| NST025048014 | 6 | 42 | 214.8 |
| NST025048015 | 9 | 39 | 214.8 |
| NST025048016 | 12 | 36 | 214.8 |
| NST025048017 | 18 | 30 | 214.8 |
| NST025048018 | 24 | 24 | 214.8 |
| NST025060009 | 0 | 60 | 256.4 |
| NST025060010 | 6 | 54 | 260.4 |
| NST025060011 | 9 | 51 | 260.4 |
| NST025060012 | 12 | 48 | 260.4 |
| NST025072003 | 0 | 72 | 310 |
| NST025072004 | 6 | 66 | 310 |
| NST025072005 | 12 | 60 | 310 |
| NST025072006 | 24 | 48 | 310 |
| NST025072007 | 36 | 36 | 310 |
| NST025084003 | 0 | 84 | 355.6 |
| NST025084004 | 12 | 72 | 355.6 |
| NST025084005 | 24 | 60 | 355.6 |
| NST025084006 | 36 | 48 | 355.6 |
| NST025096003 | 0 | 96 | 401.2 |
| NST025096004 | 12 | 84 | 401.2 |
| NST025096005 | 24 | 72 | 401.2 |
| NST025096006 | 36 | 60 | 401.2 |
| NST025096007 | 42 | 54 | 401.2 |
| NST025108003 | 0 | 108 | 450.8 |
| NST025108004 | 12 | 96 | 450.8 |
| NST025108005 | 24 | 84 | 450.8 |
| NST025108006 | 36 | 72 | 450.8 |
| NST025120003 | 0 | 120 | 496.4 |
| NST025120004 | 12 | 108 | 496.4 |
| NST025120005 | 24 | 96 | 496.4 |
| NST025120006 | 36 | 84 | 496.4 |
| NST025120007 | 48 | 72 | 496.4 |
| NST025132003 | 0 | 132 | 542 |
| NST025132004 | 12 | 120 | 542 |
| NST025132005 | 24 | 108 | 542 |
| NST025132006 | 36 | 96 | 542 |
| NST025132007 | 48 | 84 | 542 |
| NST025144003 | 0 | 144 | 587.6 |
| NST025144004 | 12 | 132 | 587.6 |
| NST025144005 | 24 | 120 | 587.6 |
| NST025144006 | 36 | 108 | 587.6 |
| NST025144007 | 48 | 96 | 587.6 |
N rings 5A in parallel can be used as 1 channel N*5A. For example: 2 rings 5A in parallel can be used as 1 channel 10A Contact the customer service if you have special requirements.
Specifications
| Mechanical Data | Electrical Data | |||
|---|---|---|---|---|
| Parameter | Value | Parameter | Value | |
| Power | Signal | |||
| Lifetime | 50 million revs* (Higher lifespan customizable) |
Rated Voltage | 0~690VAC/VDC | 0~440VAC/VDC |
| Rotating speed | 0~400 RPM | Insulation Resistance | 1000M /500VDC | 1000M /500VDC |
| Working Temp. | -40 ~80 | Lead Wire | AWG16#Teflon (Customizable) |
AWG22#Teflon (Customizable) |
| Operating Humidity | 0~85% RH | Lead Length | Standard Length 1000mm(adjustable) | |
| Contact Material | silver-silver | Insulating Strength | 1000VAC@50Hz 60s | |
| Housing Material | Engineering Plastic | Dynamic Resistance Variation | <0.01Ω | |
| Torque | 0.1N.m +0.03N.m/6 rings | |||
| Protection Grade | IP51~IP68 | |||
Lead Wires Color Code
| Ring | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | BL TR | BK TR | LGN | PR TR | RD TR | BN TR | LBN | GY | PR | YL TR | PK | GN TR |
| Ring | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Color | BL | GN | YL | WH | BK | RD | LBL | YL/GN | GY/BN | TR | BN | OR |
Options
Below special demands can be customized. According, the delivery date will be extended 3 to 15 days, and the cost will be increased 30% to 50%. Most of our basic parts are standard and modular, which can save the cost and lead time.
- Cable exit way and cable length can be customized for both rotor and stator
- Because of the structure limitation, length/height/OD can be customized for both rotor and stator
- Support current or signal up to 200 rings
- Optional aviation plug, terminal and heat-shrink tube
- Hybrid slip ring for all brands of servo control signal, power line and encoder line
- Combine temperature control signal with thermocouple signal
- Special environment can be customized, such as quakeproof, high temperature, etc.
- Hybrid pneumatic/hydraulic and electric slip ring can be mixed
- Up to 500 degrees high temperature
- Up to 110KV high pressure
- Up to 20000RPM rotating speed
- Maximum current can be up to 5000A
- Military grade
- Optional waterproof and underwater mode
- Optional IP68
- Optional C5 anti-corrosion grade
- Optional stainless steel housing
Contact the customer service if you have special requirements
