NST070108005

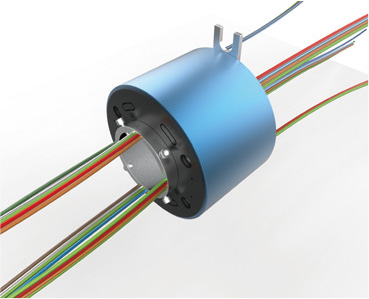

Standard series integrated precious slip ring, the OD is 158mm, bore size is 70-71mm.

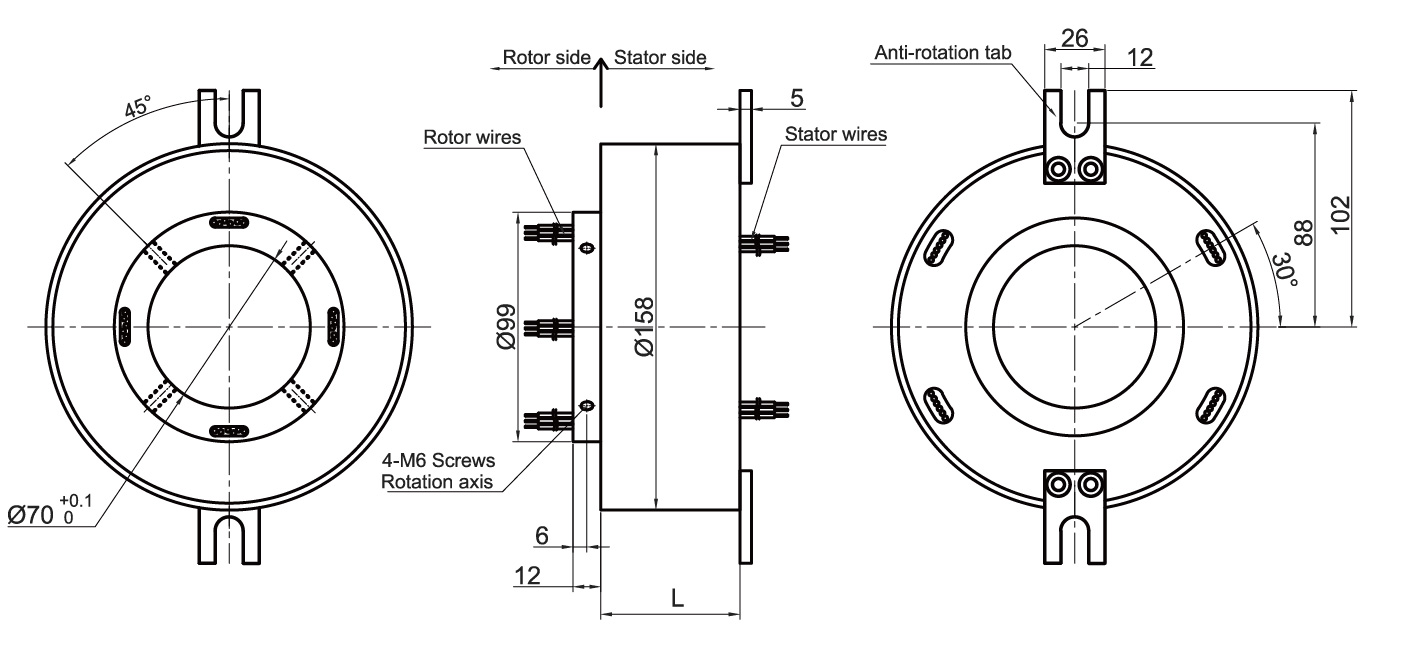

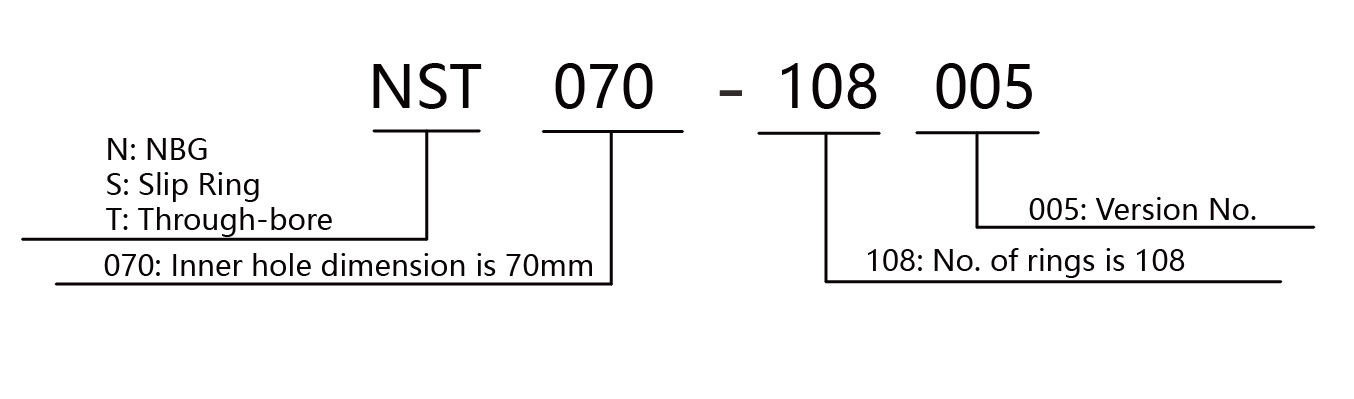

Part# Explanation

Part# List

N rings 5A in parallel can be used as 1 channel N*5A. For example: 2 rings 5A in parallel can be used as 1 channel 10A. Mechanical specifications include a lifetime of 50 million revs, rotating speed of 0~400 RPM, working temperature of -40 ~80°C, operating humidity of 0~85% RH, contact material of silver-silver, housing material of Engineering Plastic, torque of 0.1N.m +0.03N.m/6 rings, and protection grade of IP51~IP68. Electrical specifications cover rated voltage (0~690VAC/VDC for power, 0~440VAC/VDC for signal), insulation resistance of 1000MΩ/500VDC for both, lead wire (AWG16#Teflon customizable for power, AWG22#Teflon customizable for signal), standard lead length of 1000mm (adjustable), insulating strength of 1000VAC@50Hz for 60s, and dynamic resistance variation <0.01. Customization options are available for cable exit way/length, dimensions, up to 200 rings, aviation plug and other components, hybrid slip rings for various signals, temperature control signal combination, special environments, hybrid pneumatic/hydraulic-electric slip rings, high temperature (up to 500°C), high pressure (up to 110KV), high rotating speed (up to 20000RPM), high current (up to 5000A), military grade, waterproof, IP68, C5 anti-corrosion, and stainless steel housing. Customization will extend delivery date by 3 to 15 days and increase cost by 30% to 50%. Contact the customer service if you have special requirements.

Specifications

Lead Wires Color Code

Options

Below special demands can be customized. According, the delivery date will be extended 3 to 15 days, and the cost will be increased 30% to 50%. Most of our basic parts are standard and modular, which can save the cost and lead time.

• Cable exit way and cable length can be customized for both rotor and stator
• Because of the structure limitation, length/height/OD can be customized for both rotor and stator
• Support current or signal up to 200 rings
• Optional aviation plug, terminal and heat-shrink tube
• Hybrid slip ring for all brands of servo control signal, power line and encoder line
• Combine temperature control signal with thermocouple signal
• Special environment can be customized, such as quakeproof, high temperature, etc.
• Hybrid pneumatic/hydraulic and electric slip ring can be mixed
• Up to 500 degrees high temperature
• Up to 110KV high pressure
• Up to 20000RPM rotating speed
• Maximum current can be up to 5000A
• Military grade
• Optional waterproof and underwater mode
• Optional IP68
• Optional C5 anti-corrosion grade
• Optional stainless steel housing

Contact the customer service if you have special requirements

Let's Establish Cooperation !
