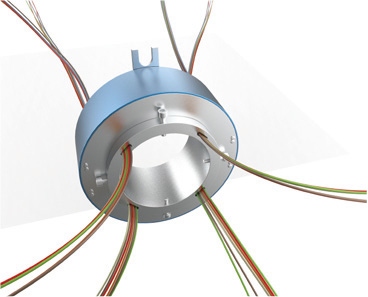

NST159108005

标准系列整体式精密导电环，外径171mm，通孔直径为159mm-160mm{insert_element_0_}。

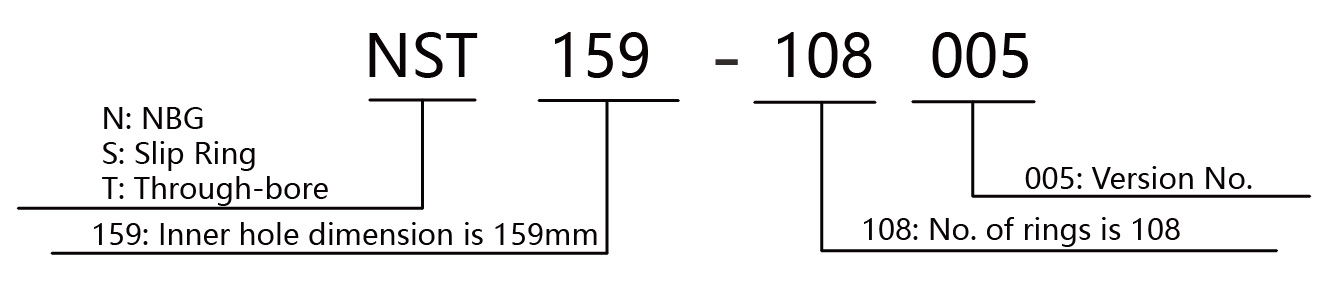

Part# Explanation

Part# List

N rings 5A in parallel can be used as 1 channel N*5A. For example: 2 rings 5A in parallel can be used as 1 channel 10A Contact the customer service if you have special requirements.

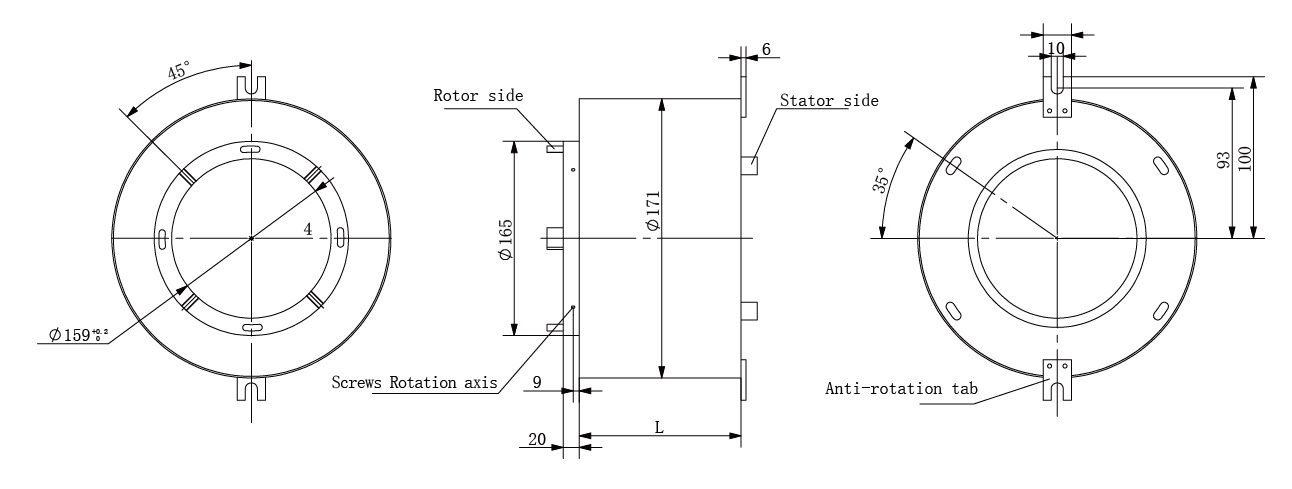

Specifications

Lead Wires Color Code

Options

Below special demands can be customized. According, the delivery date will be extended 3 to 15 days, and the cost will be increased 30% to 50%. Most of our basic parts are standard and modular, which can save the cost and lead time.

• Cable exit way and cable length can be customized for both rotor and stator
• Because of the structure limitation, length/height/OD can be customized for both rotor and stator
• Support current or signal up to 200 rings
• Optional aviation plug, terminal and heat-shrink tube
• Hybrid slip ring for all brands of servo control signal, power line and encoder line
• Combine temperature control signal with thermocouple signal
• Special environment can be customized, such as quakeproof, high temperature, etc.
• Hybrid pneumatic/hydraulic and electric slip ring can be mixed
• Up to 500 degrees high temperature
• Up to 110KV high pressure
• Up to 20000RPM rotating speed
• Maximum current can be up to 5000A
• Military grade
• Optional waterproof and underwater mode
• Optional IP68
• Optional C5 anti-corrosion grade
• Optional stainless steel housing

Contact the customer service if you have special requirements
