NST980108005

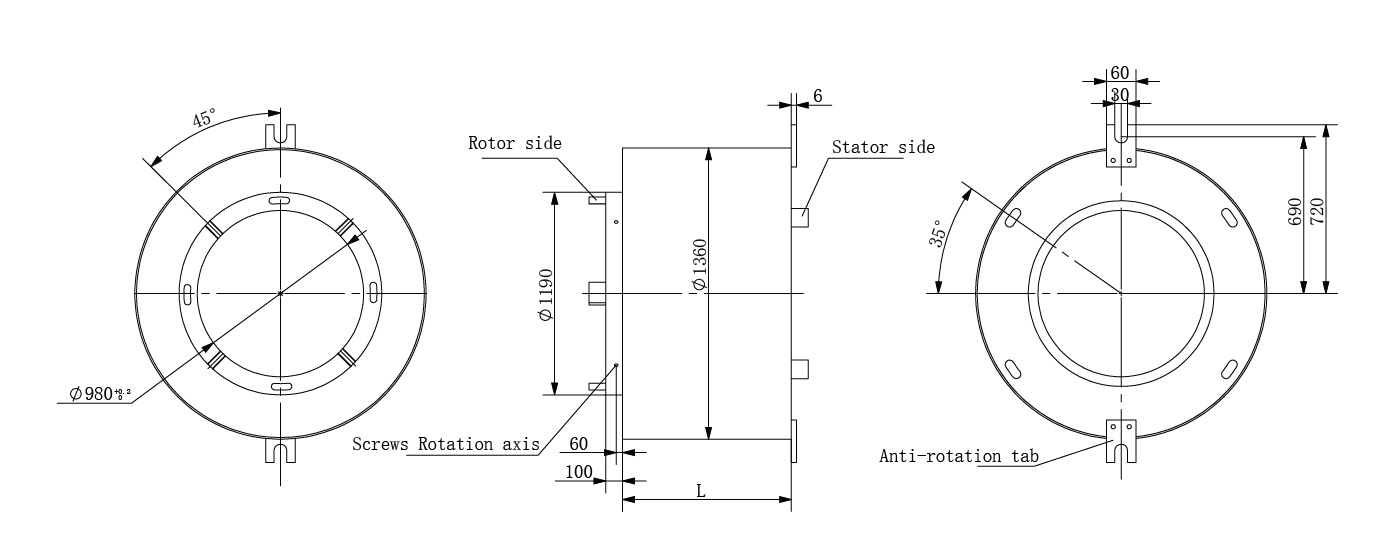

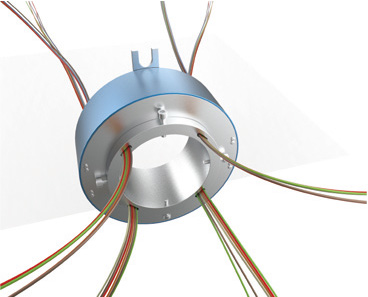

Standard series integrated precious slip ring, the OD is 1360mm, bore size is 980-981mm.

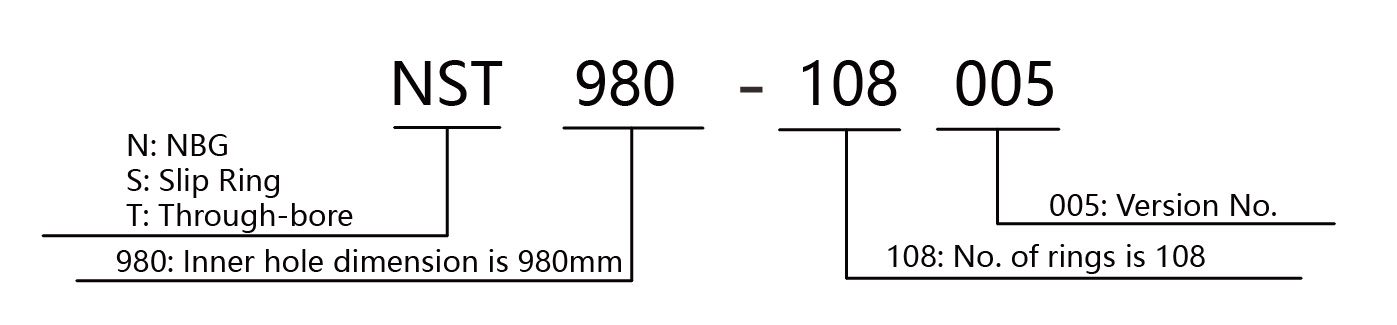

Part# Explanation
Part# List
| Model | Rings No. (10A)* | Rings No. (5A)* | L(mm) |
|---|---|---|---|
| NST980002001 | 0 | 2 | 164 |
| NST980002002 | 2 | 0 | 164 |
| NST980003001 | 0 | 3 | 172 |
| NST980003002 | 3 | 0 | 172 |
| NST980006001 | 0 | 6 | 196 |
| NST980006002 | 2 | 4 | 196 |
| NST980006003 | 4 | 2 | 196 |
| NST980006004 | 6 | 0 | 196 |
| NST980012001 | 0 | 12 | 244 |
| NST980012002 | 2 | 10 | 244 |
| NST980012003 | 3 | 9 | 244 |
| NST980012004 | 6 | 6 | 244 |
| NST980012005 | 8 | 4 | 244 |
| NST980012006 | 10 | 2 | 244 |
| NST980012007 | 12 | 0 | 244 |
| NST980018001 | 0 | 18 | 292 |
| NST980018002 | 2 | 16 | 292 |
| NST980018003 | 4 | 14 | 292 |
| NST980018004 | 6 | 12 | 292 |
| NST980018005 | 8 | 10 | 292 |
| NST980018006 | 10 | 8 | 292 |
| NST980018007 | 12 | 6 | 292 |
| NST980018008 | 14 | 4 | 292 |
| NST980018009 | 16 | 2 | 292 |
| NST980024001 | 0 | 24 | 340 |
| NST980024002 | 4 | 20 | 340 |
| NST980024003 | 6 | 18 | 340 |
| NST980024004 | 12 | 12 | 340 |
| NST980024005 | 18 | 6 | 340 |
| NST980024006 | 24 | 0 | 340 |
| NST980030001 | 0 | 30 | 388 |
| NST980030002 | 6 | 24 | 388 |
| NST980030003 | 12 | 18 | 388 |
| NST980030004 | 18 | 12 | 388 |
| NST980030005 | 24 | 6 | 388 |
| NST980030006 | 30 | 0 | 388 |
| NST980036001 | 0 | 36 | 442 |
| NST980036002 | 6 | 30 | 442 |
| NST980036003 | 12 | 24 | 442 |
| NST980036004 | 36 | 0 | 442 |
| NST980042001 | 0 | 42 | 490 |
| NST980042002 | 6 | 36 | 490 |
| NST980042003 | 12 | 30 | 490 |
| NST980048001 | 0 | 48 | 538 |
| NST980048002 | 6 | 42 | 538 |
| NST980048003 | 9 | 39 | 538 |
| NST980048004 | 12 | 36 | 538 |
| NST980048005 | 18 | 30 | 538 |
| NST980048006 | 24 | 24 | 538 |
| NST980060001 | 0 | 60 | 637 |
| NST980060002 | 6 | 54 | 637 |
| NST980060003 | 9 | 51 | 637 |
| NST980060004 | 12 | 48 | 637 |
| NST980072001 | 0 | 72 | 736 |
| NST980072002 | 6 | 66 | 736 |
| NST980072003 | 12 | 60 | 736 |
| NST980072004 | 24 | 48 | 736 |
| NST980072005 | 36 | 36 | 736 |
| NST980084001 | 0 | 84 | 832 |
| NST980084002 | 12 | 72 | 832 |
| NST980084003 | 24 | 60 | 832 |
| NST980084004 | 36 | 48 | 832 |
| NST980096001 | 0 | 96 | 928 |
| NST980096002 | 12 | 84 | 928 |
| NST980096003 | 24 | 72 | 928 |
| NST980096004 | 36 | 60 | 928 |
| NST980096005 | 42 | 54 | 928 |
| NST980108001 | 0 | 108 | 1030 |
| NST980108 002 | 12 | 96 | 1030 |
| NST980108003 | 24 | 84 | 1030 |
| NST980108004 | 36 | 72 | 1030 |
| NST980108005 | 48 | 60 | 1030 |
N rings 5A in parallel can be used as 1 channel N*5A. For example: 2 rings 5A in parallel can be used as 1 channel 10A. Contact the customer service if you have special requirements.
Specifications
| Mechanical Data | Electrical Data | |||
|---|---|---|---|---|
| Parameter | Value | Parameter | Value | |
| Power | Signal | |||
| Lifetime | 50 million revs* (Higher lifespan customizable) |
Rated Voltage | 0~690VAC/VDC | 0~440VAC/VDC |
| Rotating speed | 0~400 RPM | Insulation Resistance | 1000M /500VDC | 1000M /500VDC |
| Working Temp. | -40 ~80 | Lead Wire | AWG16#Teflon (Customizable) |
AWG22#Teflon (Customizable) |
| Operating Humidity | 0~85% RH | Lead Length | Standard Length 1000mm(adjustable) | |
| Contact Material | silver-silver | Insulating Strength | 1000VAC@50Hz 60s | |
| Housing Material | Engineering Plastic | Dynamic Resistance Variation | <0.01Ω | |
| Torque | 0.1N.m +0.03N.m/6 rings | |||
| Protection Grade | IP51~IP68 | |||
Lead Wires Color Code
| Ring | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | BL TR | BK TR | LGN | PR TR | RD TR | BN TR | LBN | GY | PR | YL TR | PK | GN TR |
| Ring | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Color | BL | GN | YL | WH | BK | RD | LBL | YL/GN | GY/BN | TR | BN | OR |
Options
Below special demands can be customized. According, the delivery date will be extended 3 to 15 days, and the cost will be increased 30% to 50%. Most of our basic parts are standard and modular, which can save the cost and lead time.
- Cable exit way and cable length can be customized for both rotor and stator
- Because of the structure limitation, length/height/OD can be customized for both rotor and stator
- Support current or signal up to 200 rings
- Optional aviation plug, terminal and heat-shrink tube
- Hybrid slip ring for all brands of servo control signal, power line and encoder line
- Combine temperature control signal with thermocouple signal
- Special environment can be customized, such as quakeproof, high temperature, etc.
- Hybrid pneumatic/hydraulic and electric slip ring can be mixed
- Up to 500 degrees high temperature
- Up to 110KV high pressure
- Up to 20000RPM rotating speed
- Maximum current can be up to 5000A
- Military grade
- Optional waterproof and underwater mode
- Optional IP68
- Optional C5 anti-corrosion grade
- Optional stainless steel housing
Contact the customer service if you have special requirements
