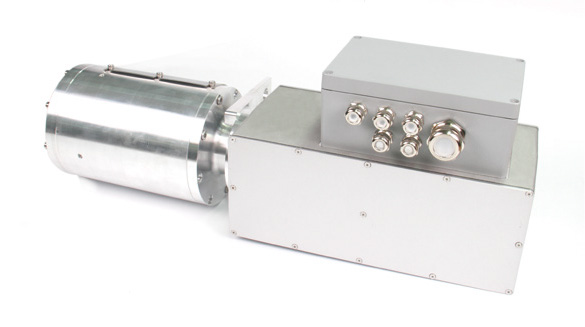

NSW389.3002

Features

• It uses silver alloy fiber brushes with multi-points contact technology, with the characteristics of high reliability and low signal loss
• For power transmission, it uses silver alloy brush with surface contact, which has high reliability, long lifetime, strong overload capacity
• Less maintenance - No maintenance required for the first two years; thereafter, maintenance is required once per year
• Options for transmitting fiber optic signals, CAN-bus, Ethernet, Profi-bus, ASI-bus, etc.

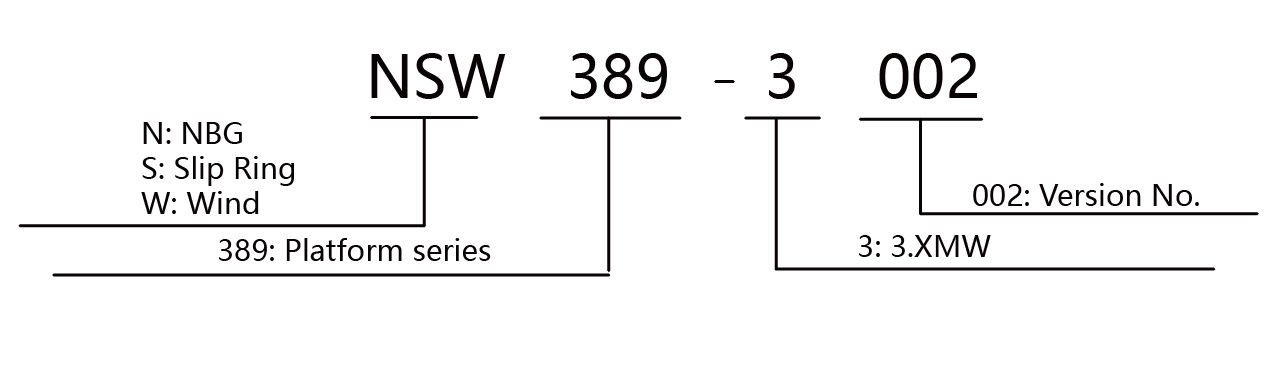

Part# Explanation

Specifications

Options

Below special demands can be customized. According, the delivery date will be extended 3 to 15 days, and the cost will be increased 30% to 50%. Most of our basic parts are standard and modular, which can save the cost and lead time.

• Cable exit way and cable length can be customized for both rotor and stator
• Because of the structure limitation, length/height/OD can be customized for both rotor and stator
• Support current or signal up to 200 rings
• Options for connector, terminal box
• Options for encoder, cable length
• Options for fiber optic slip ring of 1/2/4/8 channel
• Options for C4 or C5 ant-corrosion grade
• Protection grade can be customized to IP68
• High altitude type can be customized
• Maximum current can be up to 1000A
• Optional transmitting fiber optic signals, CAN-bus, Ethernet, Profi-bus, ASI-bus...
